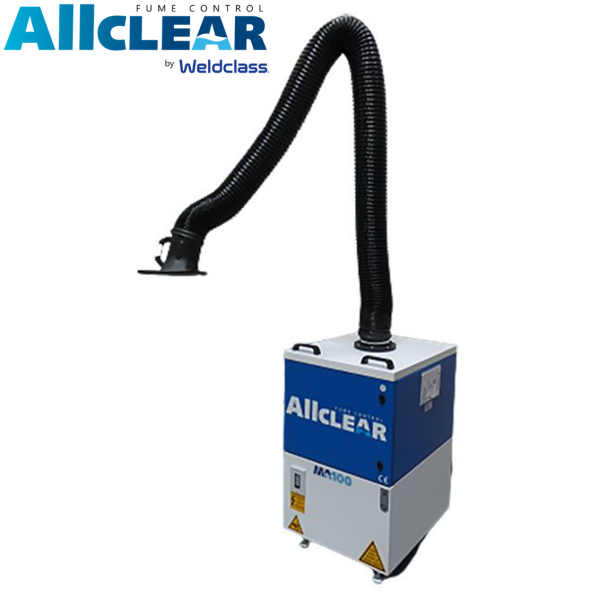

91100MA1 Allclear MA100 Mobile Welding Fume Extractor 1ph/230V with Single 3mtr

Description

The ALLCLEAR MA100 is a popular 230V mobile fume extraction and filtration unit for welding and grinding, equipped with a 3-metre arm. It is one of the most compact and economical extraction units in the ALLCLEAR range. With cleanable cartridge filter for extended filter life, the MA100 offers significantly lower operating costs vs units with traditional ‘box filters’. An impact plate above the filter also further extends filter life and greatly reduces the risk of burnout. Mounted on casters for mobility, and operates off single-phase ~230V 10A power supply.

AT A GLANCE:

• For welding & grinding fumes
• Operates on ~230V 10A single phase power
• Single 3m arm
• Cleanable filter for longer filter life & reduced operating costs
• Manual filter cleaning (access via filter cleaning door, clean with compressed air nozzle)
• One of the most popular ALLCLEAR mobile units
• Compact and mobile

APPLICATIONS

• MIG welding
• Flux-Core (FCAW) welding
• TIG welding
• Plasma Cutting
• Grinding
• Arc Gouging

FEATURES

• Cleanable cartridge filter for extended filter life & significantly lower operating costs vs traditional box filters
• Pre-separator “impact plate” shields filters from coarse particles & sparks & redirects them to the dust collection tray, significantly reducing the risk of burnout / fire, and further increasing filter life
• Cleanable filter provides consistent air flow rate (minimal drop in suction power) over the life of the filter

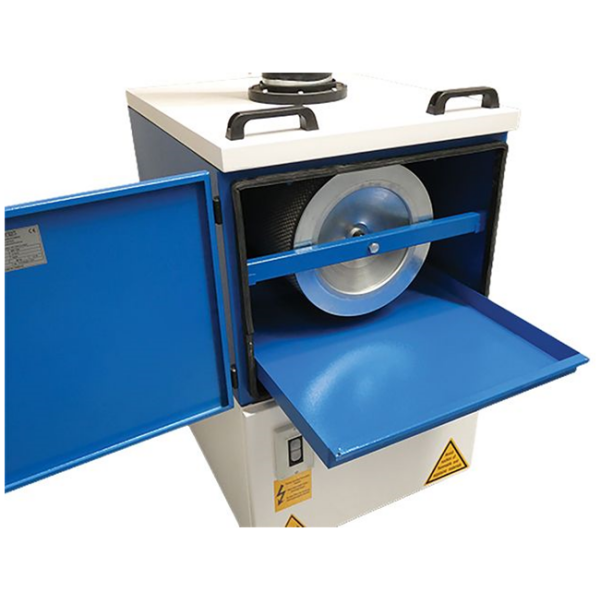

• Filter cleaning door provides easy and safe access to ‘clean’ side of the cartridge filter
• Large 14m² filter surface area & nanofiber structure provide high filtration efficiency and long life
• High extraction performance (max air flow: 2,500m³ / hour)
• Compact and mobile
• Ergonomic design with easy access to all functions & replacement filters
• Collection tray allows safe removal of dust ejected from filter cleaning
• Exhaust airflow is directed upwards & away from the floor/ground, for minimal disturbance of dust in surrounding environment
• Arcrobat arm joints use special materials & design to provide long-term use and prevent wear/fatigue
• Durable hose material resist wear and high temperatures
• Lightweight and durable suction hood catches particles with a large inlet
• 3 Year Warranty offer*

SPECIFICATIONS

OPTIONAL ACCESSORES & COMMON SPARE PARTS

• Main cartridge filter standard F9 (91990116)
• Optional HEPA (high efficiency) H13 main cartridge filter (91990118)
• Optional Carbon filter for odour reduction (91990120)

*Standard warranty 1 year, with extended 3 year warranty available if registered online after purchase, click here for details.
