91300AMA1 Allclear MA300 Auto Mobile Welding Fume Extractor 1ph/230V with Single 3mtr Arm

Description

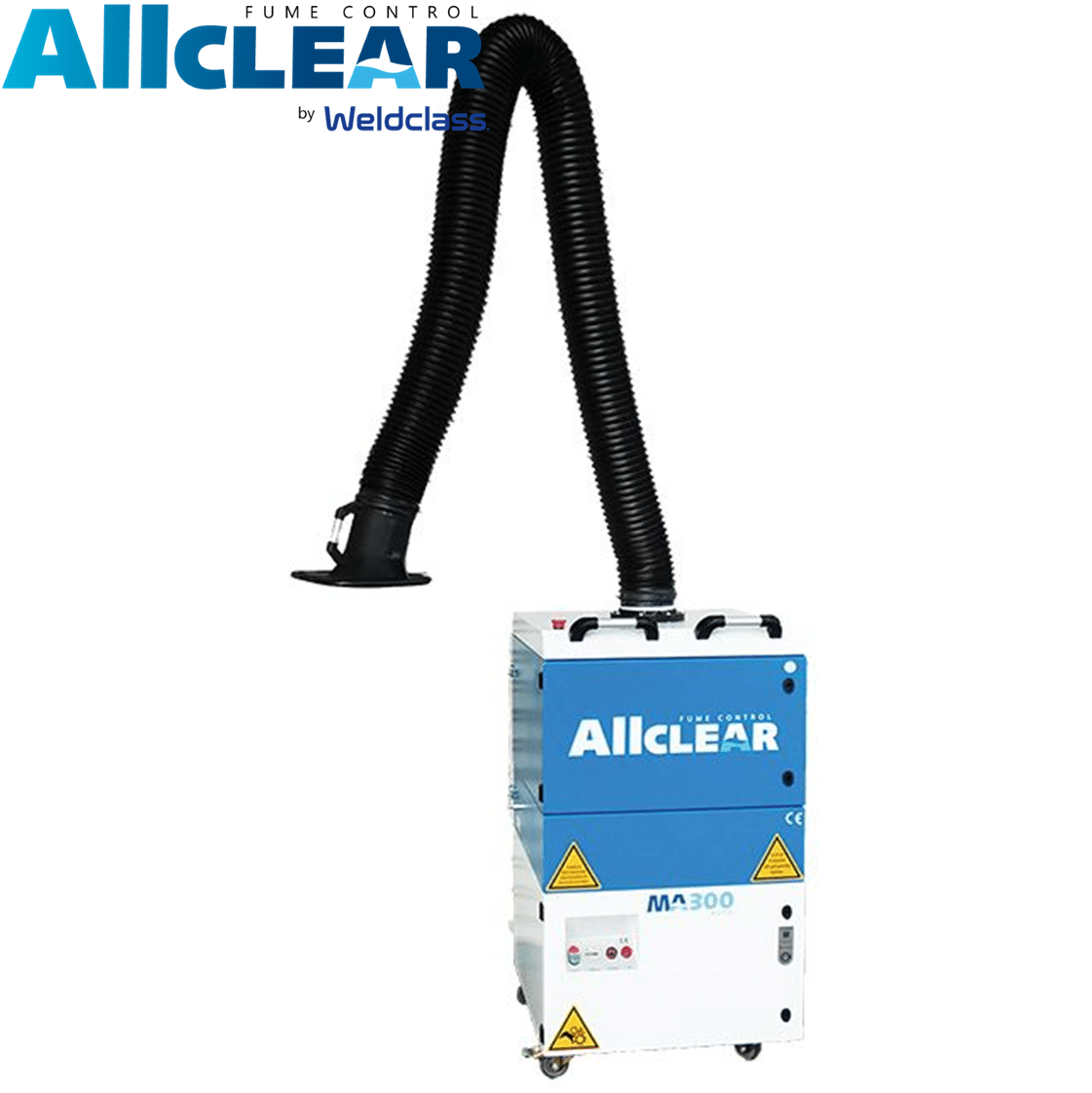

The ALLCLEAR MA300 AUTO is a 230V mobile fume extraction and filtration unit for welding and grinding, with automatic compressed-air filter cleaning system for high efficiency and ease of use. With cleanable cartridge filter for extended filter life, the MA300 AUTO offers significantly lower operating costs vs units with traditional ‘box filters’. An impact plate above the filter also further extends filter life and greatly reduces the risk of burnout. Equipped with single 3-metre arm, working hour counter, filter fullness indicator, malfunction warning, and unique dust collection bin. Mounted on casters for mobility and operates off single-phase ~230V 10A power supply.

AT A GLANCE:

• For welding & grinding fumes
• Operates on ~230V 10A single phase power
• Single 3m arm
• Cleanable filter for longer filter life & reduced operating costs
• Automatic filter cleaning (requires unit to be connected to compressed air supply)
• With: working hour counter, filter fullness indicator, malfunction warning, special dust collection bin
• Compact and mobile

APPLICATIONS

• MIG welding
• Flux-Core (FCAW) welding
• TIG welding
• Plasma Cutting
• Grinding
• Arc Gouging

FEATURES

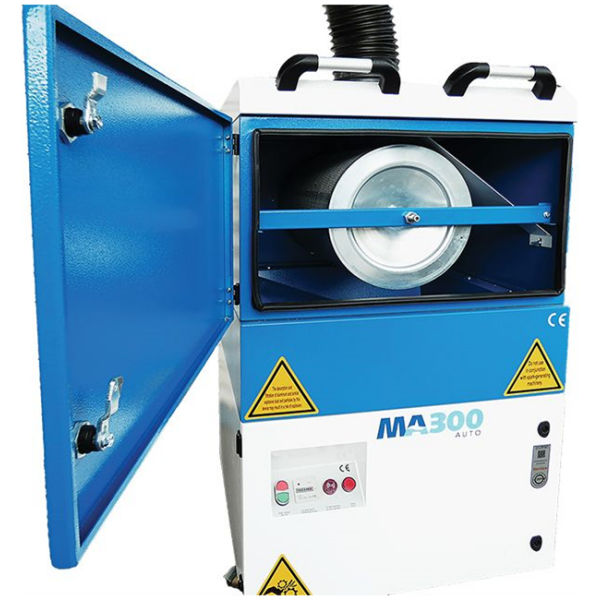

• Cleanable cartridge filter for extended filter life & significantly lower operating costs vs traditional box filters
• Pre-separator “impact plate” shields filters from coarse particles & sparks & redirects them to the dust collection bin, significantly reducing the risk of urnout / fire, and further increasing filter life
• Cleanable filter provides consistent air flow rate (minimal drop in suction power) over the life of the filter
• Automatic filter cleaning saves operator down-time (start cleaning cycle at end of shift & walk away)
• ‘Pulse’ cleaning system (accumulates then releases a burst of compressed air) provides a more thorough clean, maintains better filter condition, and extends filter life
• Large 14m² filter surface area & nanofiber structure provide high filtration efficiency and long life

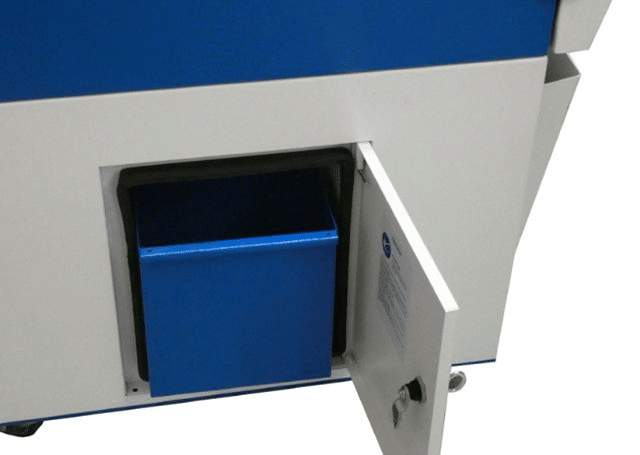

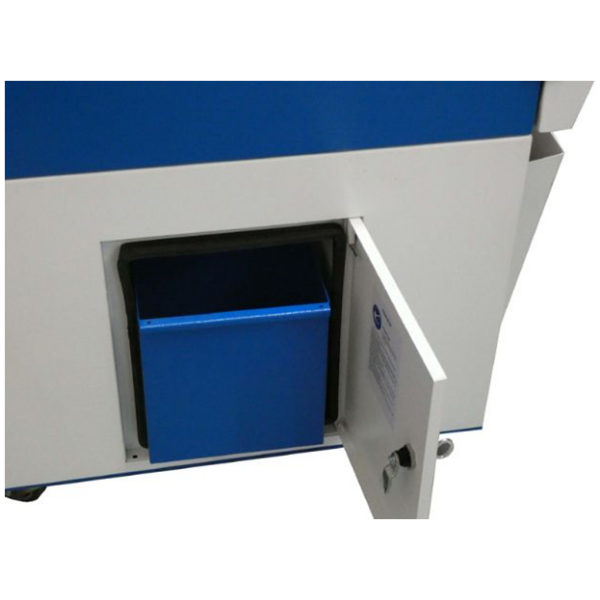

• Unique drawer/bin allows safe removal of dust (ejected from filter cleaning) with minimal disturbance, & can be accessed/used when machine is running to prevent down-time
• Exhaust airflow is directed upwards & away from the floor/ground, for minimal disturbance of dust in surrounding environment
• High extraction performance (max air flow: 3,000m³ / hour)
• Compact and mobile
• Ergonomic design with easy access to all functions & replacement filters
• Arcrobat arm joints use special materials & design to provide long-term use and prevent wear/fatigue
• Durable hose material resist wear and high temperatures
• Lightweight and durable suction hood catches particles with a large inlet
• 3 Year Warranty offer*

SPECIFICATIONS

OPTIONAL ACCESSORES & COMMON SPARE PARTS

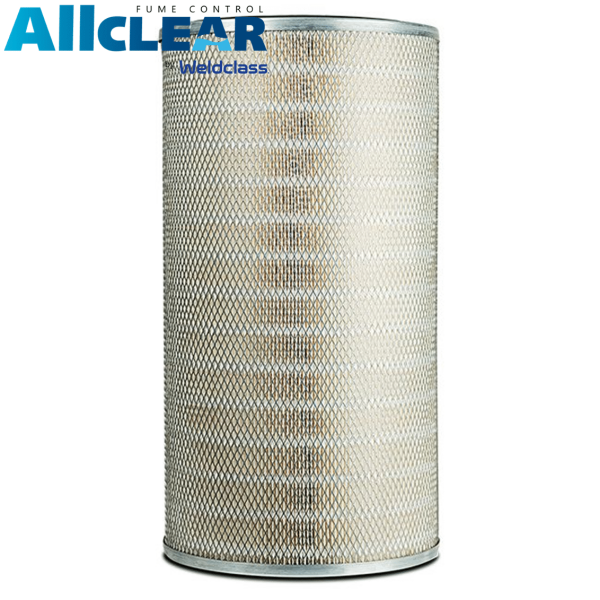

• Main cartridge filter standard F9 (91990116)
• Optional HEPA (high efficiency) H13 main cartridge filter (91990118)
• Optional Carbon filter for odour reduction (91990122)

*Standard warranty 1 year, with extended 3 year warranty available if registered online after purchase, click here for details.
