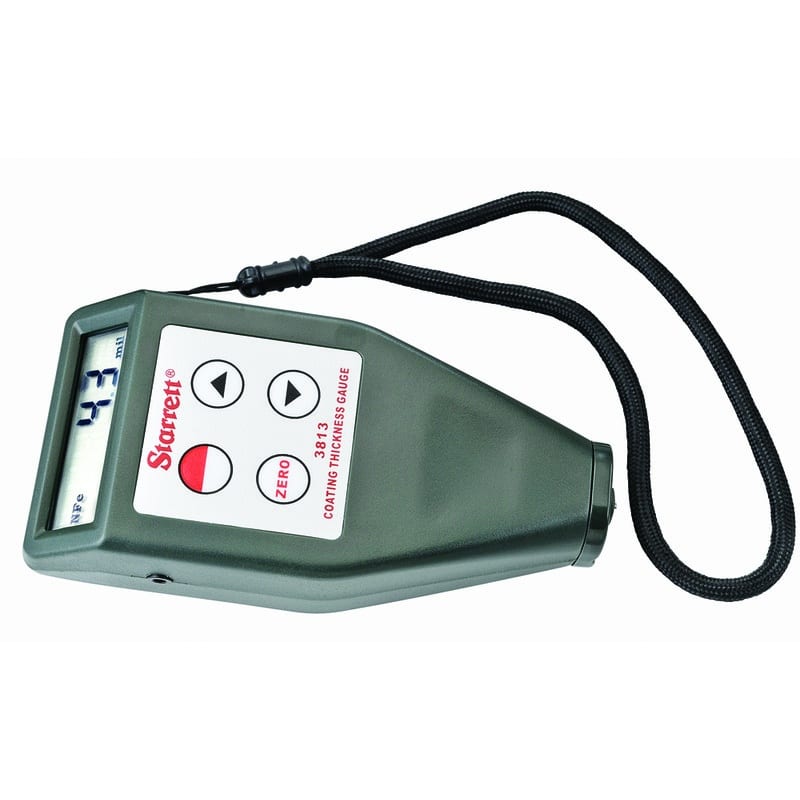

3813 Starrett Coating Thickness Gage

Brand

Starrett Precision Tools

Item #

Starrett3813

MOQ

1

Categories

Gauges, Measuring & Precision Tools, Thickness Gauges

Coating Thickness Gage is state-of-the-art thickness gage that utilizes the characteristics of both eddy current and magnetic induction to perform two types of thickness calculation. The gage uses an integrated probe to automatically determine whether the substrate is ferrous or non-ferrous, then it either detects the thickness of non-magnetic coating on a magnetic substrate (ferrous) or the insulating coating on a non-magnetic conductive substrate (nonferrous). Testing performance is non-destructive and extremely accurate. Ideal for a broad range of applications in manufacturing, engineering and commercial inspection.

Guaranteed tolerance: After one-point calibration: +/- 1-3%n or 2 um (whichever is greater)
Min. measuring area: 0.2″ x 0.2″ (5mm x 5mm)
Minimum radius of curvature: Convex: 0.12″ (3mm), Concave: 1.2″ (30mm)
Minimum substrate thickness: Ferrous: 20 mils (0.5mm), Non-ferrous: 2 mils (50)
Maximum surface temperature of test object: 302 F (maximum contact time 2 seconds)

SPECIFICATIONS

Type: Coating Thickness Gage
Range: Measuring range: 0-40mils (0-1000µm) max
Resolution: Resolution: 0.1µm/0.1mils (0-99µm) or 1µm (over 100µm)

Description

Coating Thickness Gage is state-of-the-art thickness gage that utilizes the characteristics of both eddy current and magnetic induction to perform two types of thickness calculation. The gage uses an integrated probe to automatically determine whether the substrate is ferrous or non-ferrous, then it either detects the thickness of non-magnetic coating on a magnetic substrate (ferrous) or the insulating coating on a non-magnetic conductive substrate (nonferrous). Testing performance is non-destructive and extremely accurate. Ideal for a broad range of applications in manufacturing, engineering and commercial inspection.

Guaranteed tolerance: After one-point calibration: +/- 1-3%n or 2 um (whichever is greater)
Min. measuring area: 0.2″ x 0.2″ (5mm x 5mm)
Minimum radius of curvature: Convex: 0.12″ (3mm), Concave: 1.2″ (30mm)
Minimum substrate thickness: Ferrous: 20 mils (0.5mm), Non-ferrous: 2 mils (50)
Maximum surface temperature of test object: 302 F (maximum contact time 2 seconds)

SPECIFICATIONS

Type: Coating Thickness Gage
Range: Measuring range: 0-40mils (0-1000µm) max
Resolution: Resolution: 0.1µm/0.1mils (0-99µm) or 1µm (over 100µm)

Hardness & Surface Roughness Testers (starrett.com)

*** Full STARRETT range available so if you don’t see it on our website just get in touch with us!

Description

Coating Thickness Gage is state-of-the-art thickness gage that utilizes the characteristics of both eddy current and magnetic induction to perform two types of thickness calculation. The gage uses an integrated probe to automatically determine whether the substrate is ferrous or non-ferrous, then it either detects the thickness of non-magnetic coating on a magnetic substrate (ferrous) or the insulating coating on a non-magnetic conductive substrate (nonferrous). Testing performance is non-destructive and extremely accurate. Ideal for a broad range of applications in manufacturing, engineering and commercial inspection.

Guaranteed tolerance: After one-point calibration: +/- 1-3%n or 2 um (whichever is greater)
Min. measuring area: 0.2″ x 0.2″ (5mm x 5mm)
Minimum radius of curvature: Convex: 0.12″ (3mm), Concave: 1.2″ (30mm)
Minimum substrate thickness: Ferrous: 20 mils (0.5mm), Non-ferrous: 2 mils (50)
Maximum surface temperature of test object: 302 F (maximum contact time 2 seconds)

SPECIFICATIONS

Type: Coating Thickness Gage
Range: Measuring range: 0-40mils (0-1000µm) max
Resolution: Resolution: 0.1µm/0.1mils (0-99µm) or 1µm (over 100µm)

Additional information

Brand	Starrett Precision Tools
