Description

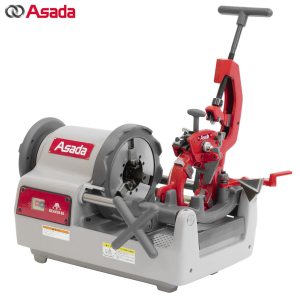

ASADA Beaver THREADING MACHINES
• 1, 2, 3, 4 inch machines available
• Threading Machines designed to give accurate threads for most pipe and bolt (rod) applications
• BSPT, NPT, BSW, UNC, UNF, Conduit and Metric threads possible in such materials as stainless, high tensile, galvanised and mild steels
• Footswitch included on all machines for safety
Note: all machines supplied as standard with all dies & dieheads from 1/2” BSPT up to capacity, cutter, reamer, threading oil and tubular legs.
(Dieheads and dies for 1/4” – 3/8” BSPT, NPT, Conduit and all bolt sizes are available as optional extras.)
• Pipe Cutter Blade to suit B50, B80 & B100 – Part No. SP04510
• Pipe Cutter Blade (to suit Beaver 25 only) – Part No. SPAS058
| Model | Capacity | Auto/Manual | Threading Capacity | Motor | Spindle Speed |
|---|---|---|---|---|---|
| B25-AT | 1″ | Beaver 25 (Auto) Dies | 1/4 – 1″ BSPT or NPT Pipe Automatic Die-Head version AM 1/2~3/4″, AM 1 ~ 1 ½” | Universal Single Phase 350W | 52rpm (No load) |
| B50 | 2″ | Beaver 50 (Manual) Dies | 1/4 – 2″ BSPT or NPT Pipe Manual Die-Head version BE 1/2~3/4″ o BE 1~1 ½” (2″) | Universal Single Phase 750W | 40rpm (No load) |
| B50-AT | 2″ | Beaver 50 (Auto) Dies | 1/4″ – 2″ BSPT or NPT Pipe Automatic Die-Head version -BE 1/2~ 3/4″ o BE 1~1 ½” (2″) | Universal Single Phase 750W | 40rpm (No load) |
| B80-AT | 3″ | Beaver 80 (Auto) Dies | 1/4″ – 3″ BSPT or NPT Pipe -Automatic Die-Head version -BE 1/2~3/4″ o BE 1~1 ½” (2″), AT 2 ½~ 3″ | Universal Single Phase 1140W | 33rpm (No load) |
| B100-AT | 4″ | Beaver 100 (Auto) Dies | 1/4″ – 4″ BSPT or NPT Pipe -Automatic Die-Head version -BE 1/2~ 3/4″ o BE 1~ 1 ½” (2″), AT 2 ½ ~4″ | Universal Single Phase 1140W | 48 / 18rpm (2 Speed) |
