428936 Hypertherm SmartSYNC® Mechanised Cartridge for Machine Torches / Select
428936 Hypertherm SmartSYNC® Mechanised Cartridge for Machine Torches / Select - Image 2
428936 Hypertherm SmartSYNC® Mechanised Cartridge for Machine Torches / Select - Image 3
428936 Hypertherm SmartSYNC® Mechanised Cartridge for Machine Torches / Select - Image 4
428936 Hypertherm SmartSYNC® Mechanised Cartridge for Machine Torches / Select - Image 5
428936 Hypertherm SmartSYNC® Mechanised Cartridge for Machine Torches / Select - Image 6

428936 Hypertherm SmartSYNC® Mechanised Cartridge for Machine Torches / Select

Brand

Hypertherm

Item #

428936

MOQ

1

Categories

, , , ,
Add To Quote Request
hypertherm precision gouging, hypertherm torches, powermax plasma systems, hypertherm plasma consumables, hypertherm cutting machine, hypertherm cutting parts

Hypertherm cartridges
Process Cartridge
105 A 428936 105 A mechanized cartridges provide optimal production performance when cutting within the thickness range of 10 mm (3/8″) to 20 mm (3/4″) thick. Exceeding optimal thickness range can result in decreases in speed and cut quality. To maximize cartridge life and performance select the correct amperage cartridge for the workpiece you are cutting.

105 A mechanized cutting cartridges are compatible with:

SmartSYNC® torches for the Powermax105 SYNC® systems.
Duramax® torches using a torch adapter* for Powermax105® systems.
Mechanized cartridges can also be used on hand torches if cutting with a stand-off is desired.
*When using a mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available.
85 A 428934 85 A mechanized cartridges provide optimal production performance when cutting within the thickness range of 10 mm (3/8″) to 16 mm (5/8″) thick. Exceeding optimal thickness range can result in decreases in speed and cut quality. To maximize cartridge life and performance select the correct amperage cartridge for the workpiece you are cutting.

85 A mechanized cutting cartridges are compatible with:

SmartSYNC® torches for the Powermax85/105 SYNC® systems
Duramax® torches using a torch adapter* for Powermax85®/105 systems.
Mechanized cartridges can also be used on hand torches if cutting with a stand-off is desired.
*When using a mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available.

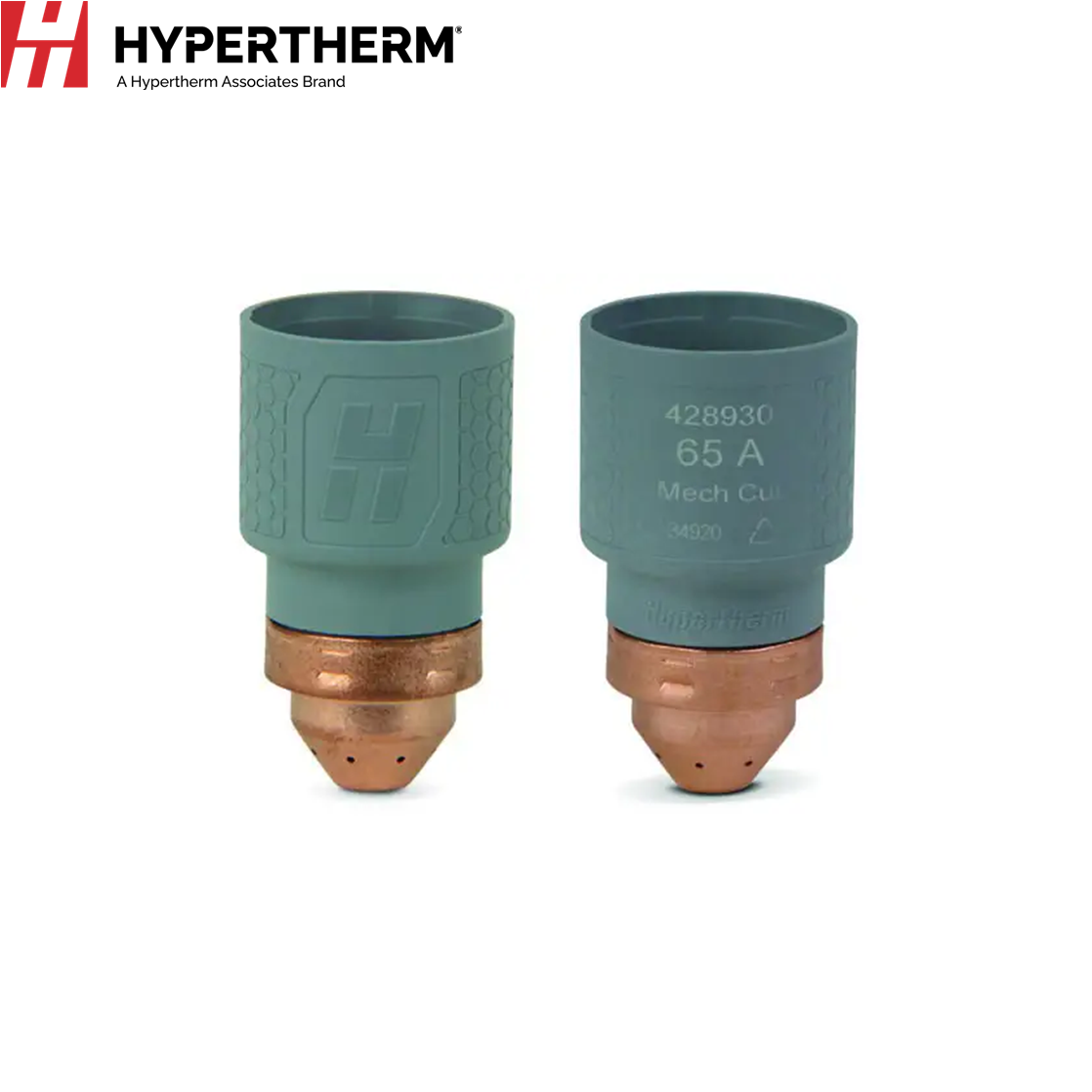

65 A 428930 65 A mechanized cartridges provide optimal production performance when cutting within the thickness range of 6 mm (1/4″) to 12 mm (1/2″) thick. Exceeding optimal thickness range can result in decreases in speed and cut quality. To maximize cartridge life and performance select the correct amperage cartridge for the workpiece you are cutting.

65 A mechanized cutting cartridges are compatible with:

SmartSYNC® torches for the Powermax65/85/105 SYNC® systems
Duramax® torches using a torch adapter* for Powermax65®/85/105 systems.
Mechanized cartridges can also be used on hand torches if cutting with a stand-off is desired.
*When using a mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available.

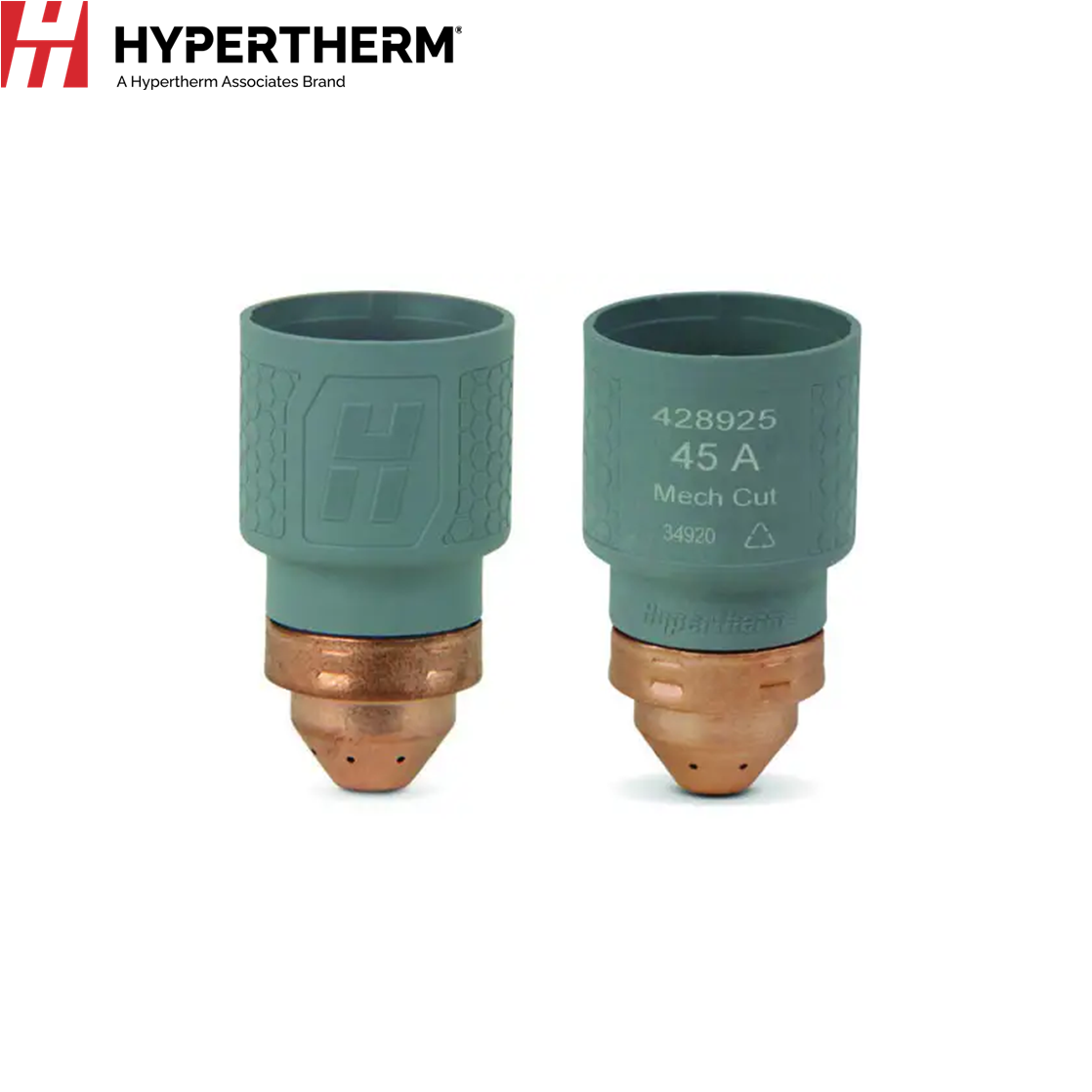

45 A 428925 45 A mechanized cartridges provide optimal production performance when cutting within the thickness range of 3 mm (1/8″) to 6 mm (1/4″) thick. Exceeding optimal thickness range can result in decreases in speed and cut quality. To maximize cartridge life and performance select the correct amperage cartridge for the workpiece you are cutting.

45 A mechanized cutting cartridges are compatible with:

SmartSYNC® torches for the Powermax65/85/105 SYNC® systems
Duramax® torches using a torch adapter* for Powermax45® XP/65/85/105 systems.
Mechanized cartridges can also be used on hand torches if cutting with a stand-off is desired.
*When using a mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available.

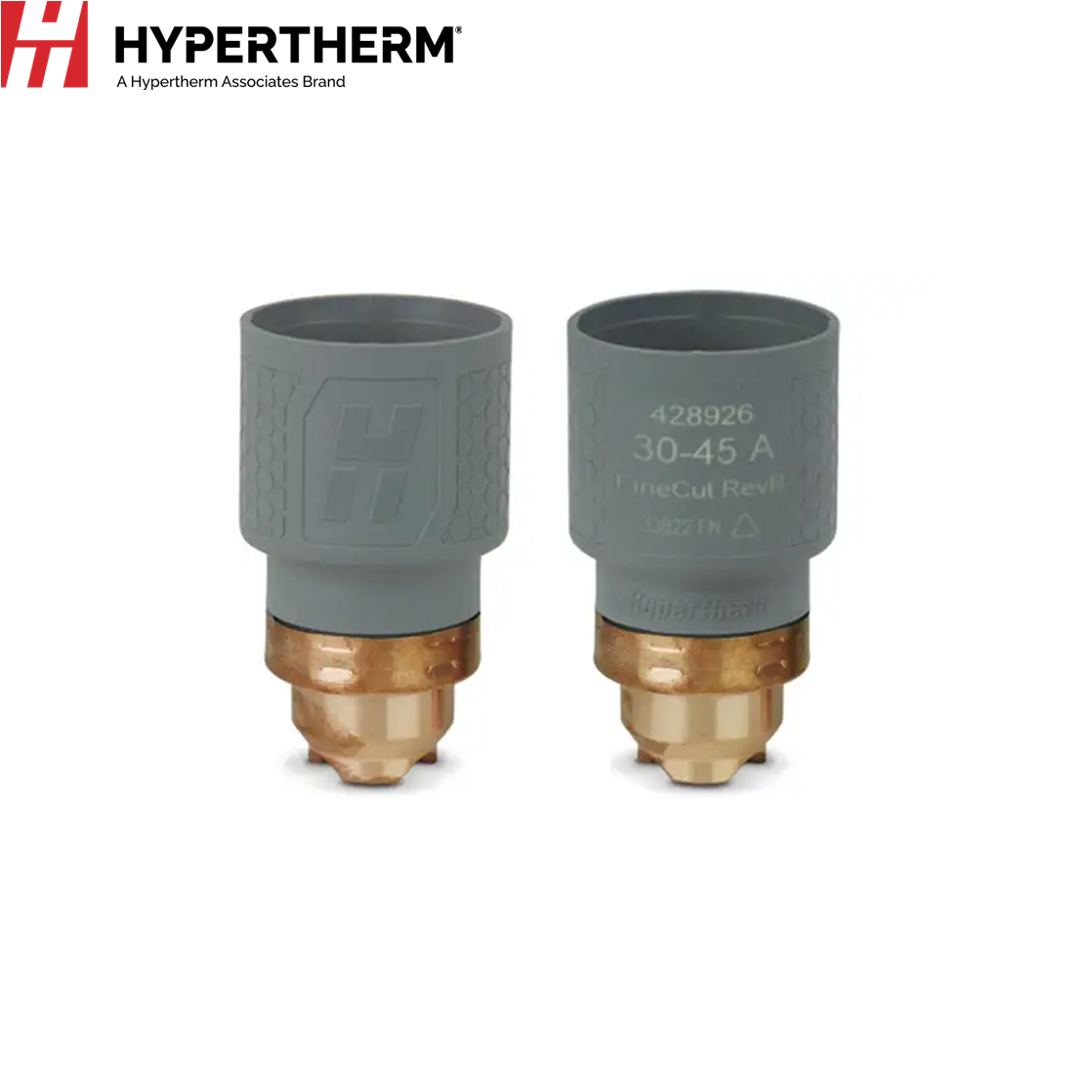

 428926 FineCut® cartridges produce a narrower kerf on thin mild steel and stainless steel up to 3 mm (10 gauge) which is ideal for fine detail cutting. To maximize cartridge life and performance it is important to select the cartridge that is optimized for the workpiece you are cutting.

30–45 A FineCut – mechanized cartridges are compatible with:

SmartSYNC® torches for the Powermax65/85/105 SYNC® systems
Duramax® torches using a torch adapter* for Powermax45®  XP/65/85/105 systems
*When using a FineCut mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available.
Ohmic ring kit 428895
(contains 3 #420580 ohmic rings)		 The ohmic contact ring clips onto the mechanized cartridge and connects it via electrical wire to torch height controls (THCs) that support the use of ohmic contact to find the surface of the workpiece before each cut. ‘Ohmic contact’ refers to the electrical connection made between the torch and the workpiece when the torch touches the workpiece during initial height sensing.
*** Mechanized cartridges can be used on hand torches if a stand-off is desired.

Benefits of Hypertherm Powermax cartridges

With its revolutionary single-piece design, the new cartridge consumable for Powermax® systems will change the way you cut and gouge metal forever. Your consumable inventory management will be streamlined. Select your cartridge and with a simple twist onto the torch you’re ready to go.

Easy to use

  • SmartSYNC® torches with the cartridge automatically set the correct amperage and operating mode, eliminating setup errors.
  • Easy to identify single-piece cartridges are color-coded by process to eliminate parts mix-up and simplify consumable inventory management.
  • End-of-life detection lets the operator know when it’s time to change the cartridge.
  • Simplified operation minimizes downtime, troubleshooting, waste, and training time.
  • Upgrading to the Hypertherm cartridge platform is easy for Powermax45 XP/65 /85 /105 systems via a torch adapter for Duramax® torches.

Versatile

  • Tackle a wide range of jobs with easily interchangeable torch styles and application-specific cartridges for various types of cutting and gouging.
  • Time-saving torch controls allow the operator to adjust the amperage on the fly and change cartridges and applications without returning to the power supply.
  • Access cartridge data for performance tracking, analyzing usage patterns when used on SmartSYNC torches.
  • Specialty cartridges for gouging, HyAccess, FlushCut™ and FineCut® extends the capabilities of Powermax systems

Torch compatibility

  • Fully compatible with all SmartSYNC torches, providing automated process set-up and data transfer to the system
    • Available cartridge reader accessory pairs with Powermax SYNC smartphone app to analyze performance data such as starts, transfers, and arc-on time
  • Limited functionality with Duramax and Duramax® Lock torches (found on Powermax45 XP/65/85/105)
    • Requires separate torch adapter (part number 428951)
    • Does not provide automated process set-up or data transfer

Description

Hypertherm cartridges
Process Cartridge
105 A 428936 105 A mechanized cartridges provide optimal production performance when cutting within the thickness range of 10 mm (3/8″) to 20 mm (3/4″) thick. Exceeding optimal thickness range can result in decreases in speed and cut quality. To maximize cartridge life and performance select the correct amperage cartridge for the workpiece you are cutting.

105 A mechanized cutting cartridges are compatible with:

SmartSYNC® torches for the Powermax105 SYNC® systems.
Duramax® torches using a torch adapter* for Powermax105® systems.
Mechanized cartridges can also be used on hand torches if cutting with a stand-off is desired.
*When using a mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available.
85 A 428934 85 A mechanized cartridges provide optimal production performance when cutting within the thickness range of 10 mm (3/8″) to 16 mm (5/8″) thick. Exceeding optimal thickness range can result in decreases in speed and cut quality. To maximize cartridge life and performance select the correct amperage cartridge for the workpiece you are cutting.

85 A mechanized cutting cartridges are compatible with:

SmartSYNC® torches for the Powermax85/105 SYNC® systems
Duramax® torches using a torch adapter* for Powermax85®/105 systems.
Mechanized cartridges can also be used on hand torches if cutting with a stand-off is desired.
*When using a mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available.
65 A 428930 65 A mechanized cartridges provide optimal production performance when cutting within the thickness range of 6 mm (1/4″) to 12 mm (1/2″) thick. Exceeding optimal thickness range can result in decreases in speed and cut quality. To maximize cartridge life and performance select the correct amperage cartridge for the workpiece you are cutting.

65 A mechanized cutting cartridges are compatible with:

SmartSYNC® torches for the Powermax65/85/105 SYNC® systems
Duramax® torches using a torch adapter* for Powermax65®/85/105 systems.
Mechanized cartridges can also be used on hand torches if cutting with a stand-off is desired.
*When using a mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available.
45 A 428925 45 A mechanized cartridges provide optimal production performance when cutting within the thickness range of 3 mm (1/8″) to 6 mm (1/4″) thick. Exceeding optimal thickness range can result in decreases in speed and cut quality. To maximize cartridge life and performance select the correct amperage cartridge for the workpiece you are cutting.

45 A mechanized cutting cartridges are compatible with:

SmartSYNC® torches for the Powermax65/85/105 SYNC® systems
Duramax® torches using a torch adapter* for Powermax45® XP/65/85/105 systems.
Mechanized cartridges can also be used on hand torches if cutting with a stand-off is desired.
*When using a mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available.




 428926 FineCut® cartridges produce a narrower kerf on thin mild steel and stainless steel up to 3 mm (10 gauge) which is ideal for fine detail cutting. To maximize cartridge life and performance it is important to select the cartridge that is optimized for the workpiece you are cutting.

30–45 A FineCut – mechanized cartridges are compatible with:

SmartSYNC® torches for the Powermax65/85/105 SYNC® systems
Duramax® torches using a torch adapter* for Powermax45®  XP/65/85/105 systems
*When using a FineCut mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available.
Ohmic ring kit 428895
(contains 3 #420580 ohmic rings)		 The ohmic contact ring clips onto the mechanized cartridge and connects it via electrical wire to torch height controls (THCs) that support the use of ohmic contact to find the surface of the workpiece before each cut. ‘Ohmic contact’ refers to the electrical connection made between the torch and the workpiece when the torch touches the workpiece during initial height sensing.
*** Mechanized cartridges can be used on hand torches if a stand-off is desired.

Benefits of Hypertherm Powermax cartridges

With its revolutionary single-piece design, the new cartridge consumable for Powermax® systems will change the way you cut and gouge metal forever. Your consumable inventory management will be streamlined. Select your cartridge and with a simple twist onto the torch you’re ready to go.

Easy to use

  • SmartSYNC® torches with the cartridge automatically set the correct amperage and operating mode, eliminating setup errors.
  • Easy to identify single-piece cartridges are color-coded by process to eliminate parts mix-up and simplify consumable inventory management.
  • End-of-life detection lets the operator know when it’s time to change the cartridge.
  • Simplified operation minimizes downtime, troubleshooting, waste, and training time.
  • Upgrading to the Hypertherm cartridge platform is easy for Powermax45 XP/65 /85 /105 systems via a torch adapter for Duramax® torches.

Versatile

  • Tackle a wide range of jobs with easily interchangeable torch styles and application-specific cartridges for various types of cutting and gouging.
  • Time-saving torch controls allow the operator to adjust the amperage on the fly and change cartridges and applications without returning to the power supply.
  • Access cartridge data for performance tracking, analyzing usage patterns when used on SmartSYNC torches.
  • Specialty cartridges for gouging, HyAccess, FlushCut™ and FineCut® extends the capabilities of Powermax systems

Torch compatibility

  • Fully compatible with all SmartSYNC torches, providing automated process set-up and data transfer to the system
    • Available cartridge reader accessory pairs with Powermax SYNC smartphone app to analyze performance data such as starts, transfers, and arc-on time
  • Limited functionality with Duramax and Duramax® Lock torches (found on Powermax45 XP/65/85/105)
    • Requires separate torch adapter (part number 428951)
    • Does not provide automated process set-up or data transfer

Hypertherm: The World’s #1 Requested Plasma Brand

Description

Hypertherm cartridges
Process Cartridge
105 A 428936 105 A mechanized cartridges provide optimal production performance when cutting within the thickness range of 10 mm (3/8″) to 20 mm (3/4″) thick. Exceeding optimal thickness range can result in decreases in speed and cut quality. To maximize cartridge life and performance select the correct amperage cartridge for the workpiece you are cutting.

105 A mechanized cutting cartridges are compatible with:

SmartSYNC® torches for the Powermax105 SYNC® systems.
Duramax® torches using a torch adapter* for Powermax105® systems.
Mechanized cartridges can also be used on hand torches if cutting with a stand-off is desired.
*When using a mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available.
85 A 428934 85 A mechanized cartridges provide optimal production performance when cutting within the thickness range of 10 mm (3/8″) to 16 mm (5/8″) thick. Exceeding optimal thickness range can result in decreases in speed and cut quality. To maximize cartridge life and performance select the correct amperage cartridge for the workpiece you are cutting.

85 A mechanized cutting cartridges are compatible with:

SmartSYNC® torches for the Powermax85/105 SYNC® systems
Duramax® torches using a torch adapter* for Powermax85®/105 systems.
Mechanized cartridges can also be used on hand torches if cutting with a stand-off is desired.
*When using a mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available.
65 A 428930 65 A mechanized cartridges provide optimal production performance when cutting within the thickness range of 6 mm (1/4″) to 12 mm (1/2″) thick. Exceeding optimal thickness range can result in decreases in speed and cut quality. To maximize cartridge life and performance select the correct amperage cartridge for the workpiece you are cutting.

65 A mechanized cutting cartridges are compatible with:

SmartSYNC® torches for the Powermax65/85/105 SYNC® systems
Duramax® torches using a torch adapter* for Powermax65®/85/105 systems.
Mechanized cartridges can also be used on hand torches if cutting with a stand-off is desired.
*When using a mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available.
45 A 428925 45 A mechanized cartridges provide optimal production performance when cutting within the thickness range of 3 mm (1/8″) to 6 mm (1/4″) thick. Exceeding optimal thickness range can result in decreases in speed and cut quality. To maximize cartridge life and performance select the correct amperage cartridge for the workpiece you are cutting.

45 A mechanized cutting cartridges are compatible with:

SmartSYNC® torches for the Powermax65/85/105 SYNC® systems
Duramax® torches using a torch adapter* for Powermax45® XP/65/85/105 systems.
Mechanized cartridges can also be used on hand torches if cutting with a stand-off is desired.
*When using a mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available.




 428926 FineCut® cartridges produce a narrower kerf on thin mild steel and stainless steel up to 3 mm (10 gauge) which is ideal for fine detail cutting. To maximize cartridge life and performance it is important to select the cartridge that is optimized for the workpiece you are cutting.

30–45 A FineCut – mechanized cartridges are compatible with:

SmartSYNC® torches for the Powermax65/85/105 SYNC® systems
Duramax® torches using a torch adapter* for Powermax45®  XP/65/85/105 systems
*When using a FineCut mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available.
Ohmic ring kit 428895
(contains 3 #420580 ohmic rings)		 The ohmic contact ring clips onto the mechanized cartridge and connects it via electrical wire to torch height controls (THCs) that support the use of ohmic contact to find the surface of the workpiece before each cut. ‘Ohmic contact’ refers to the electrical connection made between the torch and the workpiece when the torch touches the workpiece during initial height sensing.
*** Mechanized cartridges can be used on hand torches if a stand-off is desired.

Benefits of Hypertherm Powermax cartridges

With its revolutionary single-piece design, the new cartridge consumable for Powermax® systems will change the way you cut and gouge metal forever. Your consumable inventory management will be streamlined. Select your cartridge and with a simple twist onto the torch you’re ready to go.

Easy to use

  • SmartSYNC® torches with the cartridge automatically set the correct amperage and operating mode, eliminating setup errors.
  • Easy to identify single-piece cartridges are color-coded by process to eliminate parts mix-up and simplify consumable inventory management.
  • End-of-life detection lets the operator know when it’s time to change the cartridge.
  • Simplified operation minimizes downtime, troubleshooting, waste, and training time.
  • Upgrading to the Hypertherm cartridge platform is easy for Powermax45 XP/65 /85 /105 systems via a torch adapter for Duramax® torches.

Versatile

  • Tackle a wide range of jobs with easily interchangeable torch styles and application-specific cartridges for various types of cutting and gouging.
  • Time-saving torch controls allow the operator to adjust the amperage on the fly and change cartridges and applications without returning to the power supply.
  • Access cartridge data for performance tracking, analyzing usage patterns when used on SmartSYNC torches.
  • Specialty cartridges for gouging, HyAccess, FlushCut™ and FineCut® extends the capabilities of Powermax systems

Torch compatibility

  • Fully compatible with all SmartSYNC torches, providing automated process set-up and data transfer to the system
    • Available cartridge reader accessory pairs with Powermax SYNC smartphone app to analyze performance data such as starts, transfers, and arc-on time
  • Limited functionality with Duramax and Duramax® Lock torches (found on Powermax45 XP/65/85/105)
    • Requires separate torch adapter (part number 428951)
    • Does not provide automated process set-up or data transfer
