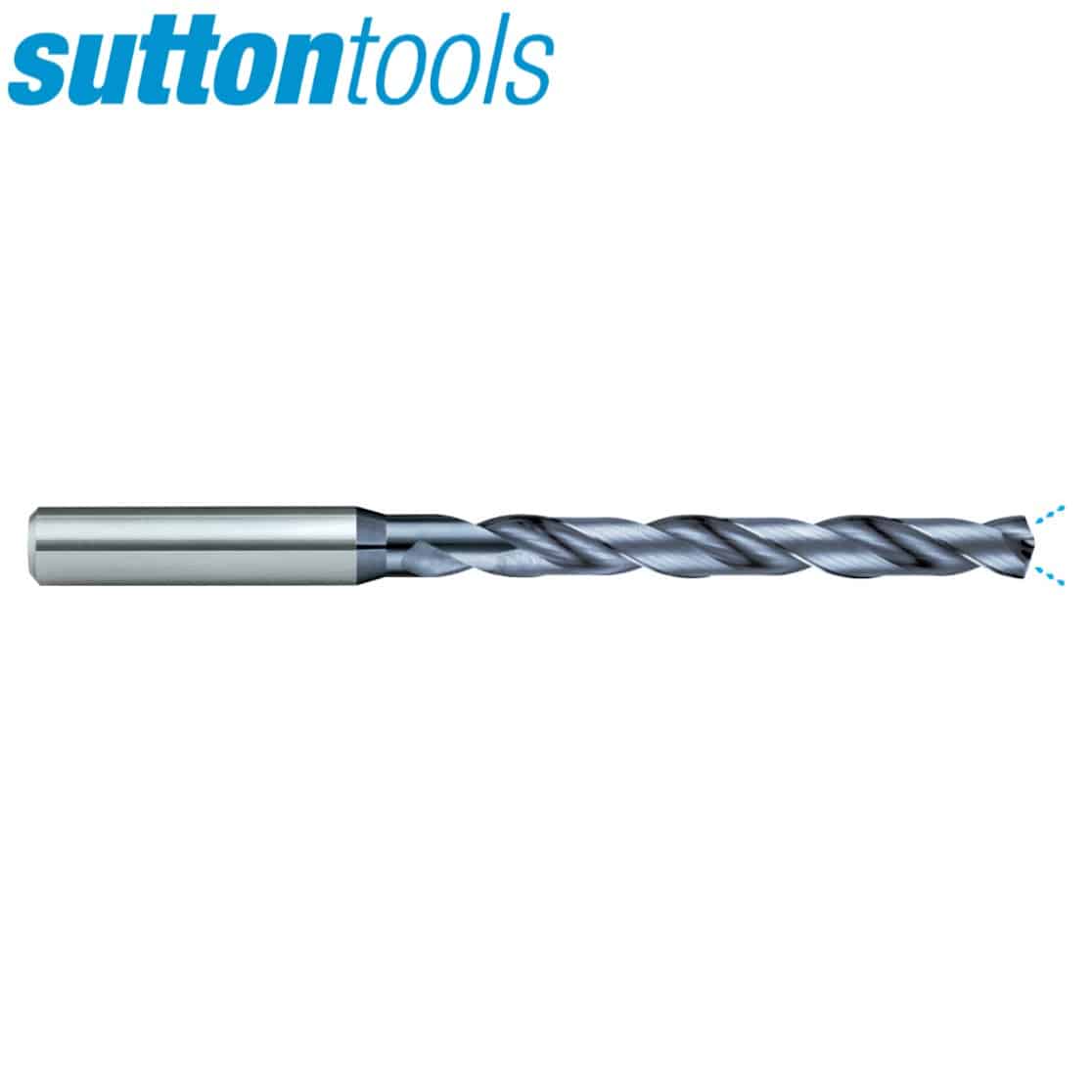

D335 Sutton Carbide Drills 8 x D R30-IK VHM AlCrN HA Shank 140Deg Form C / Select 3 – 12mm

Brand

Sutton Tools

Item #

D335

MOQ

1

Categories

, , ,
Add to quote
Buy Sutton Tools Cutting Tools Australia Tool Shop Brisbane Distributor Stockist Manufacturing Speciality Mining Tradesmen Industry Trade
  • 8xD Drill R30 N IK

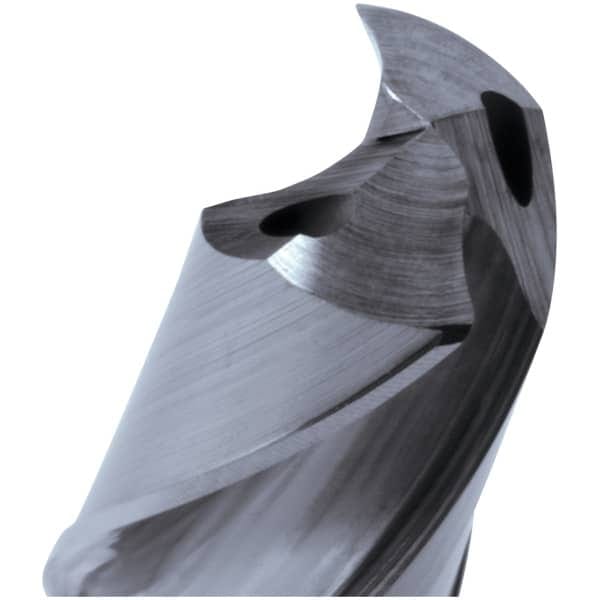

  • Strong core with internal coolant supply
  • Micro geometry & surface conditioning for optimal chip control
  • AlCrN for maximum tool life
Designation N Material VHM
Finish AlCrN Max Cut Depth 8xD
Shank Form HA Helix Angle R30
Point Tolerance  m7  Shank Tolerance  h6
Point Form Form C Point Angle 140°
Standard Sutton Cutting Edges ul

Description

  • 8xD Drill R30 N IK
  • Strong core with internal coolant supply
  • Micro geometry & surface conditioning for optimal chip control
  • AlCrN for maximum tool life
Designation N Material VHM
Finish AlCrN Max Cut Depth 8xD
Shank Form HA Helix Angle R30
Point Tolerance  m7  Shank Tolerance  h6
Point Form Form C Point Angle 140°
Standard Sutton Cutting Edges ul

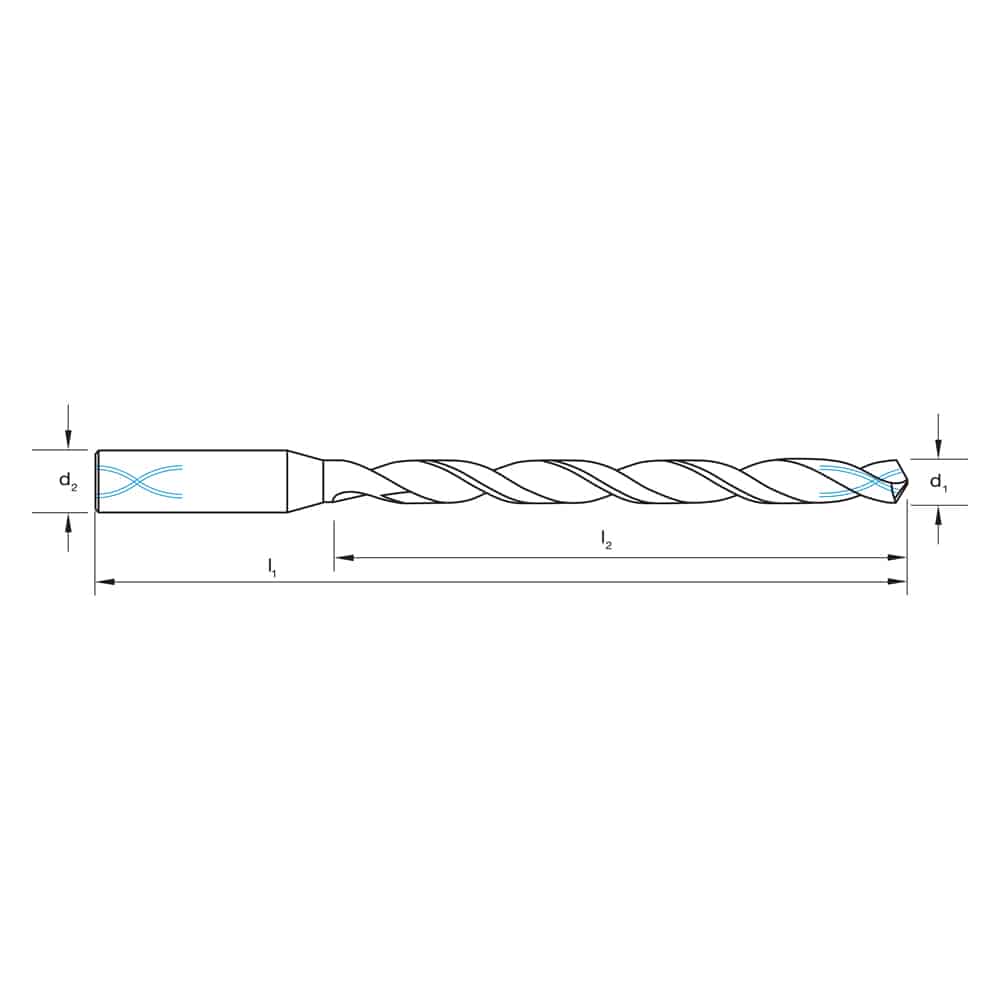

Item # Diameter d1 (mm) Diameter d1 (inch) Length l1 (mm) Length l2 (mm) Diameter d2 (mm)
D3350300 3.00 – 72 34 6
D3350310 3.10 – 72 34 6
D3350318 3.18 1/8 72 34 6
D3350320 3.20 – 72 34 6
D3350330 3.30 – 72 34 6
D3350340 3.40 – 72 34 6
D3350350 3.50 – 72 34 6
D3350357 3.57 9/64 72 34 6
D3350360 3.60 – 72 34 6
D3350370 3.70 – 72 34 6
D3350380 3.80 – 81 43 6
D3350390 3.90 – 81 43 6
D3350397 3.97 5/32 81 43 6
D3350400 4.00 – 81 43 6
D3350410 4.10 – 81 43 6
D3350420 4.20 – 81 43 6
D3350430 4.30 – 81 43 6
D3350437 4.37 11/64 81 43 6
D3350440 4.40 – 81 43 6
D3350450 4.50 – 81 43 6
D3350460 4.60 – 81 43 6
D3350470 4.70 – 81 43 6
D3350476 4.76 3/16 81 43 6
D3350480 4.80 – 95 57 6
D3350490 4.90 – 95 57 6
D3350500 5.00 – 95 57 6
D3350510 5.10 – 95 57 6
D3350516 5.16 13/64 95 57 6
D3350520 5.20 – 95 57 6
D3350530 5.30 – 95 57 6
D3350540 5.40 – 95 57 6
D3350550 5.50 – 95 57 6
D3350556 5.56 7/32 95 57 6
D3350560 5.60 – 95 57 6
D3350570 5.70 – 95 57 6
D3350580 5.80 – 95 57 6
D3350590 5.90 – 95 57 6
D3350595 5.95 15/64 95 57 6
D3350600 6.00 – 95 57 6
D3350610 6.10 – 114 76 8
D3350620 6.20 – 114 76 8
D3350630 6.30 – 114 76 8
D3350635 6.35 ¼ 114 76 8
D3350640 6.40 – 114 76 8
D3350650 6.50 – 114 76 8
D3350660 6.60 – 114 76 8
D3350670 6.70 – 114 76 8
D3350676 6.75 17/64 114 76 8
D3350680 6.80 – 114 76 8
D3350690 6.90 – 114 76 8
D3350700 7.00 – 114 76 8
D3350710 7.10 – 114 76 8
D3350714 7.14 9/32 114 76 8
D3350720 7.20 – 114 76 8
D3350730 7.30 – 114 76 8
D3350740 7.40 – 114 76 8
D3350750 7.50 – 114 76 8
D3350754 7.54 19/64 114 76 8
D3350760 7.60 – 114 76 8
D3350770 7.70 – 114 76 8
D3350780 7.80 – 114 76 8
D3350790 7.90 – 114 76 8
D3350794 7.94 5/16 114 76 8
D3350800 8.00 – 114 76 8
D3350810 8.10 – 142 95 10
D3350820 8.20 – 142 95 10
D3350830 8.30 – 142 95 10
D3350833 8.33 21/64 142 95 10
D3350840 8.40 – 142 95 10
D3350850 8.50 – 142 95 10
D3350860 8.60 – 142 95 10
D3350870 8.70 – 142 95 10
D3350873 8.73 11/32 142 95 10
D3350880 8.80 – 142 95 10
D3350890 8.90 – 142 95 10
D3350900 9.00 – 142 95 10
D3350910 9.10 – 142 95 10
D3350913 9.13 23/64 142 95 10
D3350920 9.20 – 142 95 10
D3350930 9.30 – 142 95 10
D3350940 9.40 – 142 95 10
D3350950 9.50 – 142 95 10
D3350953 9.52 3/8 142 95 10
D3350960 9.60 – 142 95 10
D3350970 9.70 – 142 95 10
D3350980 9.80 – 142 95 10
D3350990 9.90 – 142 95 10
D3350992 9.92 25/64 142 95 10
D3351000 10.00 – 142 95 10
D3351010 10.10 – 162 114 12
D3351020 10.20 – 162 114 12
D3351030 10.30 – 162 114 12
D3351032 10.32 13/32 162 114 12
D3351040 10.40 – 162 114 12
D3351050 10.50 – 162 114 12
D3351060 10.60 – 162 114 12
D3351070 10.70 – 162 114 12
D3351080 10.80 – 162 114 12
D3351090 10.90 – 162 114 12
D3351100 11.00 – 162 114 12
D3351110 11.10 – 162 114 12
D3351111 11.11 7/16 162 114 12
D3351120 11.20 – 162 114 12
D3351130 11.30 – 162 114 12
D3351140 11.40 – 162 114 12
D3351150 11.50 – 162 114 12
D3351160 11.60 – 162 114 12
D3351170 11.70 – 162 114 12
D3351180 11.80 – 162 114 12
D3351190 11.90 – 162 114 12
D3351191 11.91 15/32 162 114 12
D3351200 12.00 – 162 114 12

Carbide Drills – 8xD – R30 N – IK | Sutton Tools

*** Full SUTTON TOOLS range available so if you don’t see it on our website just get in touch with us!

Description

  • 8xD Drill R30 N IK
  • Strong core with internal coolant supply
  • Micro geometry & surface conditioning for optimal chip control
  • AlCrN for maximum tool life
Designation N Material VHM
Finish AlCrN Max Cut Depth 8xD
Shank Form HA Helix Angle R30
Point Tolerance  m7  Shank Tolerance  h6
Point Form Form C Point Angle 140°
Standard Sutton Cutting Edges ul

Additional information

Select

D3350794 – 7.94mm – 5/16", D3350800 – 8mm, D3350810 – 8.1mm, D3350820 – 8.2mm, D3350830 – 8.3mm, D3350833 – 8.33mm – 21/64", D3350840 – 8.4mm, D3350850 – 8.5mm, D3350860 – 8.6mm, D3350870 – 8.7mm, D3350873 – 8.73mm – 11/32", D3350880 – 8.8mm, D3350890 – 8.9mm, D3350900 – 9mm, D3350910 – 9.1mm, D3350913 – 9.13mm – 23/64", D3350920 – 9.2mm, D3350930 – 9.3mm, D3350940 – 9.4mm, D3350950 – 9.5mm, D3350953 – 9.53mm – 3/8", D3350960 – 9.6mm, D3350970 – 9.7mm, D3350980 – 9.8mm, D3350990 – 9.9mm, D3350992 – 9.92mm – 25/64", D3351000 – 10mm, D3351010 – 10.1mm, D3351020 – 10.2mm, D3351030 – 10.3mm, D3351032 – 10.32mm – 13/32", D3351040 – 10.4mm, D3351050 – 10.5mm, D3351060 – 10.6mm, D3351070 – 10.7mm, D3351080 – 10.8mm, D3351090 – 10.9mm, D3351100 – 11mm, D3351110 – 11.1mm, D3351111 – 11.11mm – 7/16", D3351120 – 11.2mm, D3351130 – 11.3mm, D3351140 – 11.4mm, D3351150 – 11.5mm, D3351160 – 11.6mm, D3351170 – 11.7mm, D3351180 – 11.8mm, D3351190 – 11.9mm, D3351191 – 11.91mm – 15/32", D3351200 – 12mm, D3350397 – 3.97mm – 5/32", D3350400 – 4mm, D3350410 – 4.1mm, D3350420 – 4.2mm, D3350430 – 4.3mm, D3350437 – 4.37mm – 11/64", D3350440 – 4.4mm, D3350450 – 4.5mm, D3350460 – 4.6mm, D3350470 – 4.7mm, D3350476 – 4.76mm – 3/16", D3350480 – 4.8mm, D3350490 – 4.9mm, D3350500 – 5mm, D3350510 – 5.1mm, D3350516 – 5.16mm – 13/64", D3350520 – 5.2mm, D3350530 – 5.3mm, D3350540 – 5.4mm, D3350550 – 5.5mm, D3350556 – 5.56mm – 7/32", D3350560 – 5.6mm, D3350570 – 5.7mm, D3350580 – 5.8mm, D3350590 – 5.9mm, D3350595 – 5.95mm – 15/64", D3350600 – 6mm, D3350610 – 6.1mm, D3350620 – 6.2mm, D3350630 – 6.3mm, D3350635 – 6.35mm – 1/4", D3350640 – 6.4mm, D3350650 – 6.5mm, D3350660 – 6.6mm, D3350670 – 6.7mm, D3350676 – 6.76mm – 17/64", D3350680 – 6.8mm, D3350690 – 6.9mm, D3350700 – 7mm, D3350710 – 7.1mm, D3350714 – 7.14mm – 9/32", D3350720 – 7.2mm, D3350730 – 7.3mm, D3350740 – 7.4mm, D3350750 – 7.5mm, D3350754 – 7.54mm – 19/64", D3350760 – 7.6mm, D3350770 – 7.7mm, D3350780 – 7.8mm, D3350790 – 7.9mm, D3350300 – 3mm, D3350310 – 3.1mm, D3350318 – 3.18mm – 1/8", D3350320 – 3.2mm, D3350330 – 3.3mm, D3350340 – 3.4mm, D3350350 – 3.5mm, D3350357 – 3.57mm – 9/64", D3350360 – 3.6mm, D3350370 – 3.7mm, D3350380 – 3.8mm, D3350390 – 3.9mm
