6-12mm graduation: 0.001mm
12-300mm graduation: 0.005mm

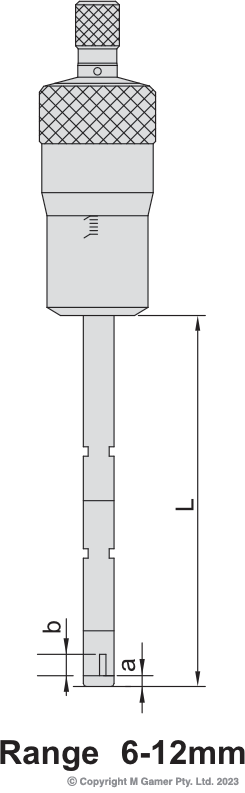

| Part No | Range | Accuracy | Setting Ring | Extension Rod | a | b | c | L |
| AC-362-001-01 | 6-8mm | 4μm | Ø6mm(included) | 100mm | 1.5 | 2.5 | 0 | 54.5 |
| AC-362-002-01 | 8-10mm | 4μm | Ø8mm(included) | 100mm | 1.5 | 2.5 | 0 | 54.5 |
| AC-362-003-01 | 10-12mm | 4μm | Ø10mm(included) | 100mm | 1.5 | 2.5 | 0 | 54.5 |
| AC-362-004-01 | 12-16mm | 4μm | Ø16mm(included) | 150mm | 0.5 | 6 | 4.5 | 80 |
| AC-362-005-01 | 16-20mm | 4μm | Ø16mm(included) | 150mm | 0.5 | 6 | 4.5 | 80 |
| AC-362-006-01 | 20-25mm | 4μm | Ø25mm(included) | 150mm | 0.5 | 8 | 6 | 90 |
| AC-362-007-01 | 25-30mm | 4μm | Ø25mm(included) | 150mm | 0.5 | 8 | 6 | 90 |
| AC-362-008-01 | 30-40mm | 4μm | Ø40mm(included) | 150mm | 0.5 | 14 | 12 | 97 |
6-12mm graduation: 0.001mm
12-300mm graduation: 0.005mm
| Part No | Range | Accuracy | Setting Ring | Extension Rod | a | b | c | L |
| AC-362-001-01 | 6-8mm | 4μm | Ø6mm(included) | 100mm | 1.5 | 2.5 | 0 | 54.5 |
| AC-362-002-01 | 8-10mm | 4μm | Ø8mm(included) | 100mm | 1.5 | 2.5 | 0 | 54.5 |
| AC-362-003-01 | 10-12mm | 4μm | Ø10mm(included) | 100mm | 1.5 | 2.5 | 0 | 54.5 |
| AC-362-004-01 | 12-16mm | 4μm | Ø16mm(included) | 150mm | 0.5 | 6 | 4.5 | 80 |
| AC-362-005-01 | 16-20mm | 4μm | Ø16mm(included) | 150mm | 0.5 | 6 | 4.5 | 80 |
| AC-362-006-01 | 20-25mm | 4μm | Ø25mm(included) | 150mm | 0.5 | 8 | 6 | 90 |
| AC-362-007-01 | 25-30mm | 4μm | Ø25mm(included) | 150mm | 0.5 | 8 | 6 | 90 |
| AC-362-008-01 | 30-40mm | 4μm | Ø40mm(included) | 150mm | 0.5 | 14 | 12 | 97 |
6-12mm graduation: 0.001mm
12-300mm graduation: 0.005mm
| Part No | Range | Accuracy | Setting Ring | Extension Rod | a | b | c | L |
| AC-362-001-01 | 6-8mm | 4μm | Ø6mm(included) | 100mm | 1.5 | 2.5 | 0 | 54.5 |
| AC-362-002-01 | 8-10mm | 4μm | Ø8mm(included) | 100mm | 1.5 | 2.5 | 0 | 54.5 |
| AC-362-003-01 | 10-12mm | 4μm | Ø10mm(included) | 100mm | 1.5 | 2.5 | 0 | 54.5 |
| AC-362-004-01 | 12-16mm | 4μm | Ø16mm(included) | 150mm | 0.5 | 6 | 4.5 | 80 |
| AC-362-005-01 | 16-20mm | 4μm | Ø16mm(included) | 150mm | 0.5 | 6 | 4.5 | 80 |
| AC-362-006-01 | 20-25mm | 4μm | Ø25mm(included) | 150mm | 0.5 | 8 | 6 | 90 |
| AC-362-007-01 | 25-30mm | 4μm | Ø25mm(included) | 150mm | 0.5 | 8 | 6 | 90 |
| AC-362-008-01 | 30-40mm | 4μm | Ø40mm(included) | 150mm | 0.5 | 14 | 12 | 97 |
| Brand | |
|---|---|
| Select | AC-362-001-01 Accud Three Points Inside Micrometer 6-8mm, AC-362-002-01 Accud Three Points Inside Micrometer 8-10mm, AC-362-003-01 Accud Three Points Inside Micrometer 10-12mm, AC-362-004-01 Accud Three Points Inside Micrometer 12-16mm, AC-362-005-01 Accud Three Points Inside Micrometer 16-20mm, AC-362-006-01 Accud Three Points Inside Micrometer 20-25mm, AC-362-007-01 Accud Three Points Inside Micrometer 25-30mm, AC-362-008-01 Accud Three Points Inside Micrometer 30-40mm |
