• DIN875 Grade 2
• Made from stainless steel

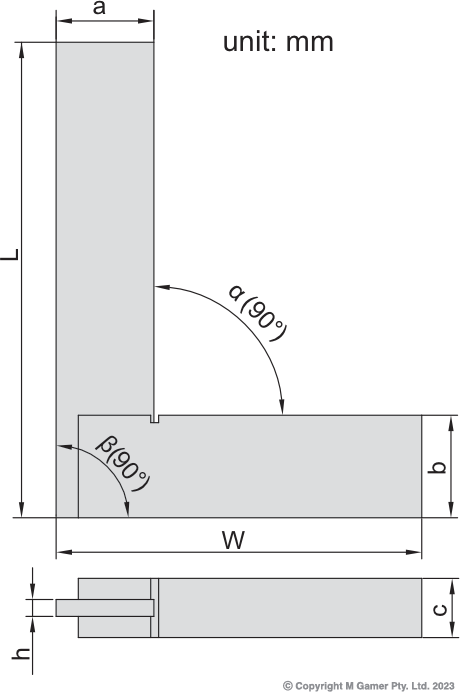

| Part No | Size | Squareness a | Squareness b | a | b | c | h | Grade |
| AC-843-003-10 | 75x50mm | 6µm | 6µm | 14 | 14 | 10 | 3 | Grade 0 |
| AC-843-004-10 | 100x70mm | 7µm | 7µm | 18 | 18 | 10 | 3 | Grade 0 |
| AC-843-006-10 | 150x100mm | 7µm | 7µm | 22 | 22 | 12 | 4 | Grade 0 |
| AC-843-008-10 | 200x130mm | 8µm | 8µm | 25 | 25 | 12 | 4 | Grade 0 |
• DIN875 Grade 2
• Made from stainless steel
| Part No | Size | Squareness a | Squareness b | a | b | c | h | Grade |
| AC-843-003-10 | 75x50mm | 6µm | 6µm | 14 | 14 | 10 | 3 | Grade 0 |
| AC-843-004-10 | 100x70mm | 7µm | 7µm | 18 | 18 | 10 | 3 | Grade 0 |
| AC-843-006-10 | 150x100mm | 7µm | 7µm | 22 | 22 | 12 | 4 | Grade 0 |
| AC-843-008-10 | 200x130mm | 8µm | 8µm | 25 | 25 | 12 | 4 | Grade 0 |
• DIN875 Grade 2
• Made from stainless steel
| Part No | Size | Squareness a | Squareness b | a | b | c | h | Grade |
| AC-843-003-10 | 75x50mm | 6µm | 6µm | 14 | 14 | 10 | 3 | Grade 0 |
| AC-843-004-10 | 100x70mm | 7µm | 7µm | 18 | 18 | 10 | 3 | Grade 0 |
| AC-843-006-10 | 150x100mm | 7µm | 7µm | 22 | 22 | 12 | 4 | Grade 0 |
| AC-843-008-10 | 200x130mm | 8µm | 8µm | 25 | 25 | 12 | 4 | Grade 0 |
| Brand | |
|---|---|
| Select | AC-843-003-10 Accud Stainless Steel Wide Base Machinist Square 50x40mm, AC-843-004-10 Accud Stainless Steel Wide Base Machinist Square 75x50mm, AC-843-006-10 Accud Stainless Steel Wide Base Machinist Square 100x70mm, AC-843-008-10 Accud Stainless Steel Wide Base Machinist Square 150x100mm |
