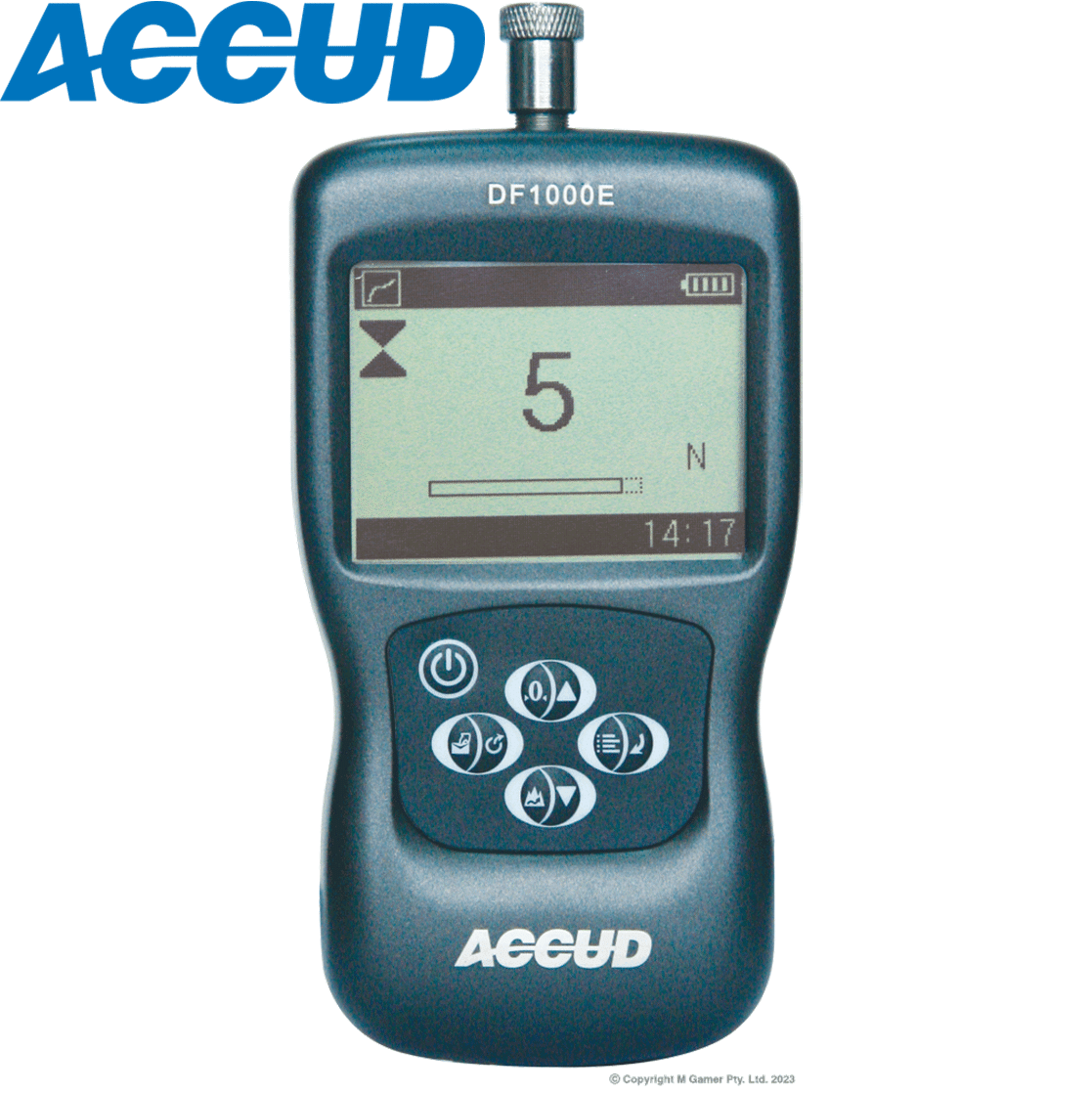

AC-DF1000E Accud Digital Force Gauge DFXXE / Select

Brand

Accud Accurate Measuring Tools

Item #

AC-DF10-1

MOQ

1

Categories

, , ,
Add to quote

  • For pull and push measurement
  • Adjusting the display direction automatically
  • With overload protection
  • Peak and real-time mode
  • Unit: N, gf, kgf, ozf, lbf
  • Memory: 500
  • Power off automatically

Specifications

NB: ORDER IN ITEM –  ETA for Order In products is between 8-12 weeks.

Part No Status Specification
AC-DF10E Order In Range: 10N
Resolution: 0.01N
Accuracy: ±0.3% x FS (full scale)
Power: rechargeable battery
Dimension: 150x72x33mm
Weight: 450g

Included accessories
Main unit: 1pc
Charger: 1pc
Software: 1pc

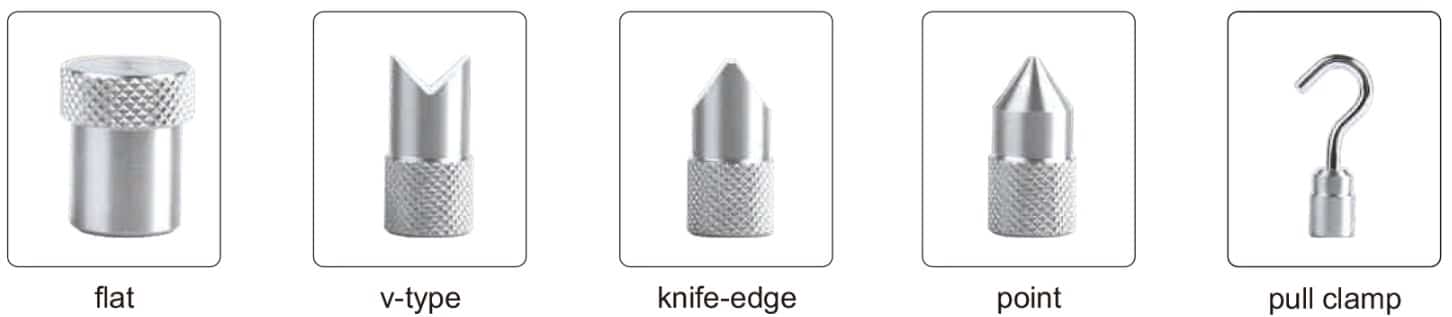

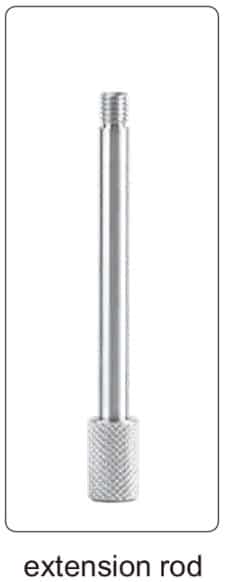

Push/pull clamps: 6Pcs (flat, V Type, knife-edge, point, pull clamp, extension rod

Optional accessories

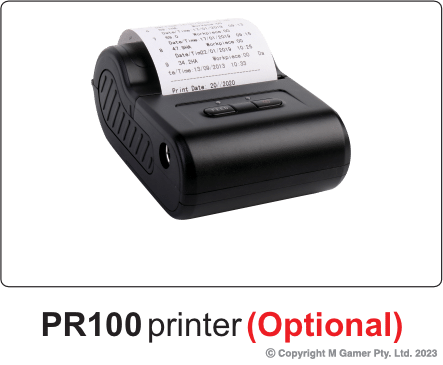

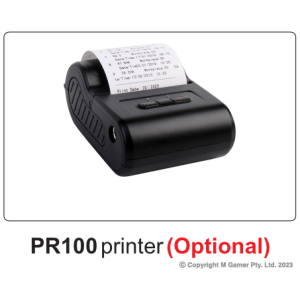

Wireless printer: PR100

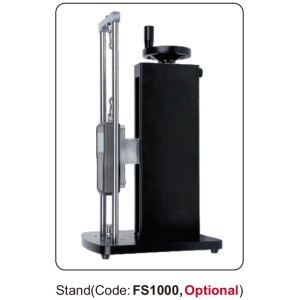

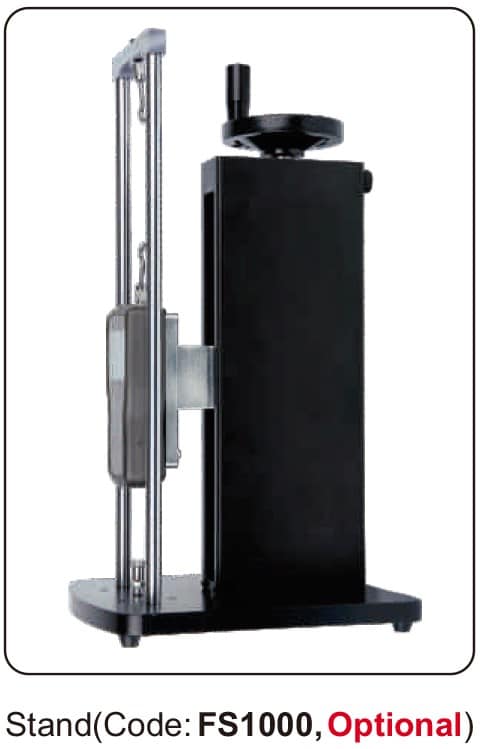

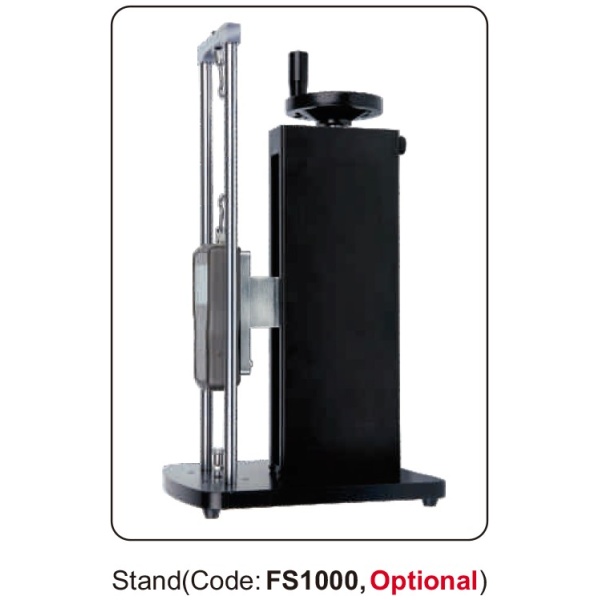

Stand: FS1000
AC-DF50E Order In Range: 50N
Resolution: 0.01N
Accuracy: ±0.3% x FS (full scale)
Power: rechargeable battery
Dimension: 150x72x33mm
Weight: 450g

Included accessories
Main unit: 1pc
Charger: 1pc
Software: 1pc
Push/pull clamps: 6Pcs (flat, V Type, knife-edge, point, pull clamp, extension rod

Optional accessories
Wireless printer: PR100
Stand: FS1000
AC-DF100E Order In Range: 100N
Resolution: 0.1N
Accuracy: ±0.3% x FS (full scale)
Power: rechargeable battery
Dimension: 150x72x33mm
Weight: 450g

Included accessories
Main unit: 1pc
Charger: 1pc
Software: 1pc
Push/pull clamps: 6Pcs (flat, V Type, knife-edge, point, pull clamp, extension rod

Optional accessories
Wireless printer: PR100
Stand: FS1000
AC-DF500E Order In Range: 500N
Resolution: 0.1N
Accuracy: ±0.3% x FS (full scale)
Power: rechargeable battery
Dimension: 150x72x33mm
Weight: 450g

Included accessories
Main unit: 1pc
Charger: 1pc
Software: 1pc
Push/pull clamps: 6Pcs (flat, V Type, knife-edge, point, pull clamp, extension rod

Optional accessories
Wireless printer: PR100
Stand: FS1000
AC-DF1000E Order In Range: 1000N
Resolution: 1N
Accuracy: ±0.3% x FS (full scale)
Power: rechargeable battery
Dimension: 150x72x33mm
Weight: 450g

Included accessories
Main unit: 1pc
Charger: 1pc
Software: 1pc
Push/pull clamps: 6Pcs (flat, V Type, knife-edge, point, pull clamp, extension rod

Optional accessories
Wireless printer: PR100
Stand: FS1000

Description

  • For pull and push measurement
  • Adjusting the display direction automatically
  • With overload protection
  • Peak and real-time mode
  • Unit: N, gf, kgf, ozf, lbf
  • Memory: 500
  • Power off automatically

Specifications

NB: ORDER IN ITEM –  ETA for Order In products is between 8-12 weeks.

Part No Status Specification
AC-DF10E Order In Range: 10N
Resolution: 0.01N
Accuracy: ±0.3% x FS (full scale)
Power: rechargeable battery
Dimension: 150x72x33mm
Weight: 450g

Included accessories
Main unit: 1pc
Charger: 1pc
Software: 1pc
Push/pull clamps: 6Pcs (flat, V Type, knife-edge, point, pull clamp, extension rod

Optional accessories
Wireless printer: PR100
Stand: FS1000
AC-DF50E Order In Range: 50N
Resolution: 0.01N
Accuracy: ±0.3% x FS (full scale)
Power: rechargeable battery
Dimension: 150x72x33mm
Weight: 450g

Included accessories
Main unit: 1pc
Charger: 1pc
Software: 1pc
Push/pull clamps: 6Pcs (flat, V Type, knife-edge, point, pull clamp, extension rod

Optional accessories
Wireless printer: PR100
Stand: FS1000
AC-DF100E Order In Range: 100N
Resolution: 0.1N
Accuracy: ±0.3% x FS (full scale)
Power: rechargeable battery
Dimension: 150x72x33mm
Weight: 450g

Included accessories
Main unit: 1pc
Charger: 1pc
Software: 1pc
Push/pull clamps: 6Pcs (flat, V Type, knife-edge, point, pull clamp, extension rod

Optional accessories
Wireless printer: PR100
Stand: FS1000
AC-DF500E Order In Range: 500N
Resolution: 0.1N
Accuracy: ±0.3% x FS (full scale)
Power: rechargeable battery
Dimension: 150x72x33mm
Weight: 450g

Included accessories
Main unit: 1pc
Charger: 1pc
Software: 1pc
Push/pull clamps: 6Pcs (flat, V Type, knife-edge, point, pull clamp, extension rod

Optional accessories
Wireless printer: PR100
Stand: FS1000
AC-DF1000E Order In Range: 1000N
Resolution: 1N
Accuracy: ±0.3% x FS (full scale)
Power: rechargeable battery
Dimension: 150x72x33mm
Weight: 450g

Included accessories
Main unit: 1pc
Charger: 1pc
Software: 1pc
Push/pull clamps: 6Pcs (flat, V Type, knife-edge, point, pull clamp, extension rod

Optional accessories
Wireless printer: PR100
Stand: FS1000

*** Full ACCUD range available so if you don’t see it on our website just get in touch with us!Buy Accud Professional Precision Measuring & Instruments Engineers Engineering Professional Tools Equipment Australia Industrial Wholesale

Description

  • For pull and push measurement
  • Adjusting the display direction automatically
  • With overload protection
  • Peak and real-time mode
  • Unit: N, gf, kgf, ozf, lbf
  • Memory: 500
  • Power off automatically

Specifications

NB: ORDER IN ITEM –  ETA for Order In products is between 8-12 weeks.

Part No Status Specification
AC-DF10E Order In Range: 10N
Resolution: 0.01N
Accuracy: ±0.3% x FS (full scale)
Power: rechargeable battery
Dimension: 150x72x33mm
Weight: 450g

Included accessories
Main unit: 1pc
Charger: 1pc
Software: 1pc
Push/pull clamps: 6Pcs (flat, V Type, knife-edge, point, pull clamp, extension rod

Optional accessories
Wireless printer: PR100
Stand: FS1000
AC-DF50E Order In Range: 50N
Resolution: 0.01N
Accuracy: ±0.3% x FS (full scale)
Power: rechargeable battery
Dimension: 150x72x33mm
Weight: 450g

Included accessories
Main unit: 1pc
Charger: 1pc
Software: 1pc
Push/pull clamps: 6Pcs (flat, V Type, knife-edge, point, pull clamp, extension rod

Optional accessories
Wireless printer: PR100
Stand: FS1000
AC-DF100E Order In Range: 100N
Resolution: 0.1N
Accuracy: ±0.3% x FS (full scale)
Power: rechargeable battery
Dimension: 150x72x33mm
Weight: 450g

Included accessories
Main unit: 1pc
Charger: 1pc
Software: 1pc
Push/pull clamps: 6Pcs (flat, V Type, knife-edge, point, pull clamp, extension rod

Optional accessories
Wireless printer: PR100
Stand: FS1000
AC-DF500E Order In Range: 500N
Resolution: 0.1N
Accuracy: ±0.3% x FS (full scale)
Power: rechargeable battery
Dimension: 150x72x33mm
Weight: 450g

Included accessories
Main unit: 1pc
Charger: 1pc
Software: 1pc
Push/pull clamps: 6Pcs (flat, V Type, knife-edge, point, pull clamp, extension rod

Optional accessories
Wireless printer: PR100
Stand: FS1000
AC-DF1000E Order In Range: 1000N
Resolution: 1N
Accuracy: ±0.3% x FS (full scale)
Power: rechargeable battery
Dimension: 150x72x33mm
Weight: 450g

Included accessories
Main unit: 1pc
Charger: 1pc
Software: 1pc
Push/pull clamps: 6Pcs (flat, V Type, knife-edge, point, pull clamp, extension rod

Optional accessories
Wireless printer: PR100
Stand: FS1000

Additional information

Brand

Select

AC-DF10E Accud Digital Force Gauge Range: 10N / Resolution: 0.01N, AC-DF50E Accud Digital Force Gauge Range: 50N / Resolution: 0.01N, AC-DF100E Accud Digital Force Gauge Range: 100N / Resolution: 0.1N, AC-DF500E Accud Digital Force Gauge Range: 500N / Resolution: 0.1N, AC-DF1000E Accud Digital Force Gauge Range: 1000N / Resolution: 1N, Optional accessories – FS1000 Stand, Optional accessories – Wireless printer: PR100
