TBH TOHO Compact Wire Rope Builders Hoists / Select Capacity

Brand

Toho by Garrick

Item #

TBH250

MOQ

1

Categories

, ,
Add to quote

TOHO Compact Wire Rope (Builders) Hoists

• Specifically designed to hang from scaffold tubing to lift materials to and from different levels on a building site.
• 30 mtr lift
• auto stop feature
• heavy duty construction
• scaffolding safety latch
• 240 volt 3 pin plug power supply
• 7mtr pendant length
• IP Rating Hoist: IP44
• IP Rating Corded Control: IP65
• IP Rating Optional Remote Control: IP55

Complies with Australian Standard AS1418.7

Model Rated Capacity Motor Duty Cycle Rope Dia Lifting Speed Power Supply Insulation Class Weight (Kg) Lift (Mtr) Optional Remote Control
TBH250 250 1500W 0.25 5mm 19m/min 220-240 V F 22 30 TBH-RP-250
TBH360 360 1600W 0.25 5mm 13m/min 220-240 V F 26 30 TBH-RP-360/500
TBH500 500 1600W 0.25 6mm 13m/min 220-240 V F 30 30 TBH-RP-360/500

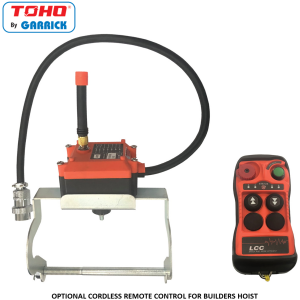

Optional remote control units available – the remote control distance ( no shielding) is 70m.

TOHO Compact Wire Rope (Builders) Hoists – Garrick Herbert

Description

TOHO Compact Wire Rope (Builders) Hoists

• Specifically designed to hang from scaffold tubing to lift materials to and from different levels on a building site.
• 30 mtr lift
• auto stop feature
• heavy duty construction
• scaffolding safety latch
• 240 volt 3 pin plug power supply
• 7mtr pendant length
• IP Rating Hoist: IP44
• IP Rating Corded Control: IP65
• IP Rating Optional Remote Control: IP55

Complies with Australian Standard AS1418.7

Model Rated Capacity Motor Duty Cycle Rope Dia Lifting Speed Power Supply Insulation Class Weight (Kg) Lift (Mtr) Optional Remote Control
TBH250 250 1500W 0.25 5mm 19m/min 220-240 V F 22 30 TBH-RP-250
TBH360 360 1600W 0.25 5mm 13m/min 220-240 V F 26 30 TBH-RP-360/500
TBH500 500 1600W 0.25 6mm 13m/min 220-240 V F 30 30 TBH-RP-360/500

Optional remote control units available – the remote control distance ( no shielding) is 70m.

TOHO Compact Wire Rope (Builders) Hoists – Garrick Herbert

Description

TOHO Compact Wire Rope (Builders) Hoists

• Specifically designed to hang from scaffold tubing to lift materials to and from different levels on a building site.
• 30 mtr lift
• auto stop feature
• heavy duty construction
• scaffolding safety latch
• 240 volt 3 pin plug power supply
• 7mtr pendant length
• IP Rating Hoist: IP44
• IP Rating Corded Control: IP65
• IP Rating Optional Remote Control: IP55

Complies with Australian Standard AS1418.7

Model Rated Capacity Motor Duty Cycle Rope Dia Lifting Speed Power Supply Insulation Class Weight (Kg) Lift (Mtr) Optional Remote Control
TBH250 250 1500W 0.25 5mm 19m/min 220-240 V F 22 30 TBH-RP-250
TBH360 360 1600W 0.25 5mm 13m/min 220-240 V F 26 30 TBH-RP-360/500
TBH500 500 1600W 0.25 6mm 13m/min 220-240 V F 30 30 TBH-RP-360/500

Optional remote control units available – the remote control distance ( no shielding) is 70m.

TOHO Compact Wire Rope (Builders) Hoists – Garrick Herbert

Additional information

Brand

Select

TBH250 – TOHO Compact Wire Rope Builders Hoist – 250kg Capacity, TBH360 – TOHO Compact Wire Rope Builders Hoist – 360kg Capacity, TBH500 – TOHO Compact Wire Rope Builders Hoist – 500kg Capacity, Accessory: TBH-RP-250 Remote Wireless Control to suit TOHO Builders Hoist 250kg, Accessory: TBH-RP-360 – Remote Wireless Control to suit TOHO Builders Hoist 360kg, Accessory: TBH-RP-500 – Remote Wireless Control to suit TOHO Builders Hoist 500kg
