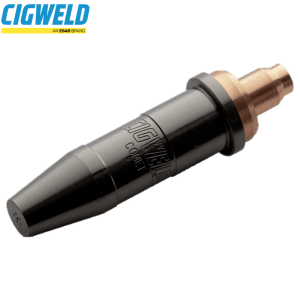

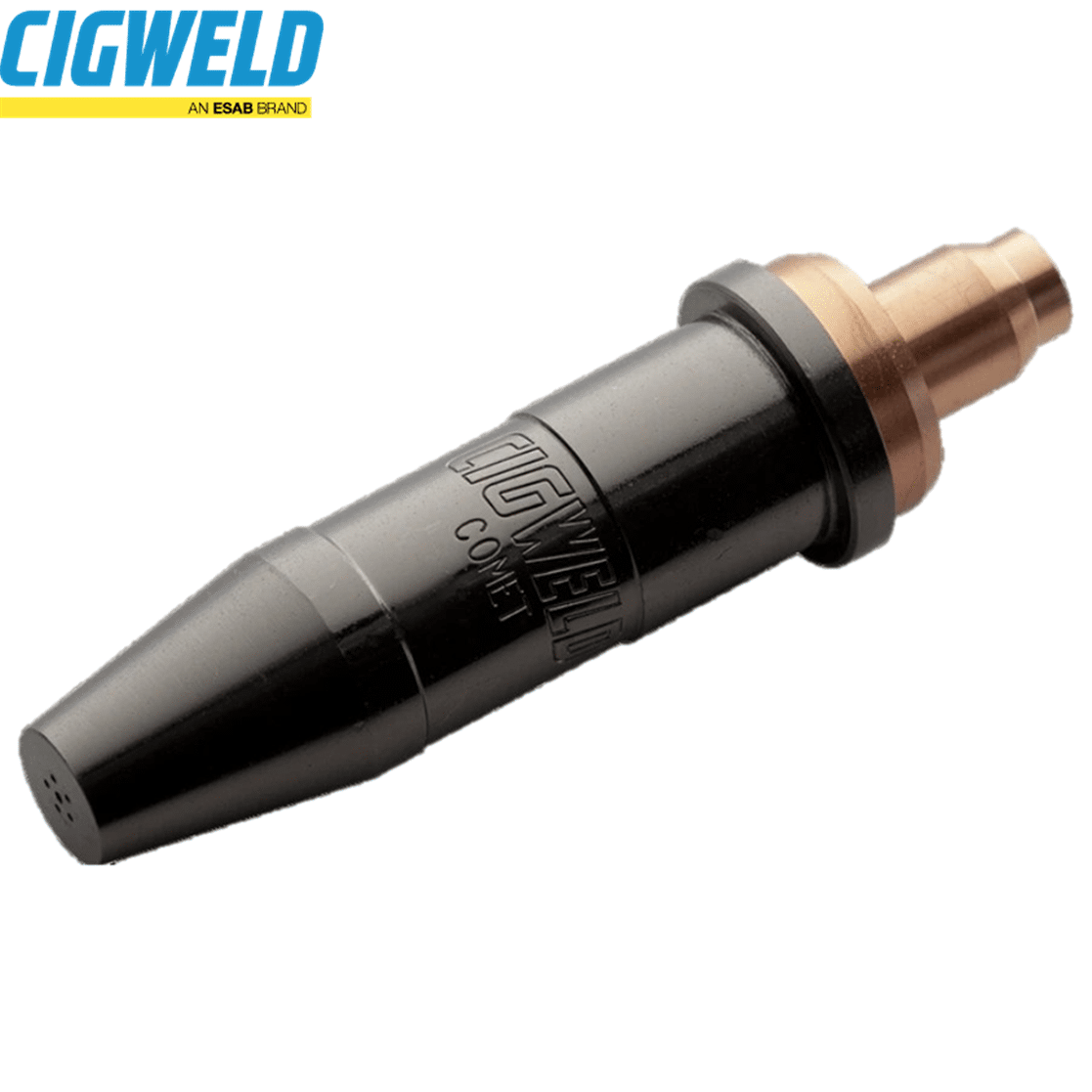

COMET Oxy/Acetylene Nozzles are a vital component of flame cutting equipment. Boasting the world’s first black nickel plating for tough wearing and discolouration resistance. These nozzles effortlessly provide preheating flames to raise the steel to ignition temperatures, whilst seamlessly directing the jet of oxygen onto the heated area to perform the cutting process.
• Excellent cut quality – Gas passages produced using swaging technology (Type 41 only) resulting in an extended, smooth, uniform oxygen jet stream. • Less slag adhesion – Manufactured from copper for extra durability and improved heat dissipation. • Narrow kerf width – Provides cleaner cuts and smoother lines with both hand cutting and profile machine cutting.
| Brand | Cigweld |
|---|---|
| Fuel Gas Flow | 12.5 @ 100 kPa, 2.0 @ 100 kPa, 20.0 @ 100 kPa, 3.5 @ 100 kPa, 4.0 @ 100 kPa, 7.0 @ 100 kPa, 9.0 @ 100 kPa |
| Plate Thickness | 1-6mm, 100-125mm, 12-20mm, 150-200mm, 225-300mm, 25-75mm, 6-10mm |
| Size | 6, 8, 12, 15, 20, 24, 32 |
| Total Oxygen Flow Pressure | 11 l/min @ 200 kPa, 134 l/min @ 400 kPa, 20 l/min @ 200 kPa, 232 l/min @ 500 kPa, 38 l/min @ 200 kPa, 420 l/min @ 600 kPa, 75 l/min @ 350 kPa |
| Type | TYPE 41 (OXY/ACETYLENE) |
COMET Oxy/Acetylene Nozzles are a vital component of flame cutting equipment. Boasting the world’s first black nickel plating for tough wearing and discolouration resistance. These nozzles effortlessly provide preheating flames to raise the steel to ignition temperatures, whilst seamlessly directing the jet of oxygen onto the heated area to perform the cutting process.
• Excellent cut quality – Gas passages produced using swaging technology (Type 41 only) resulting in an extended, smooth, uniform oxygen jet stream. • Less slag adhesion – Manufactured from copper for extra durability and improved heat dissipation. • Narrow kerf width – Provides cleaner cuts and smoother lines with both hand cutting and profile machine cutting.
| Brand | Cigweld |
|---|---|
| Fuel Gas Flow | 12.5 @ 100 kPa, 2.0 @ 100 kPa, 20.0 @ 100 kPa, 3.5 @ 100 kPa, 4.0 @ 100 kPa, 7.0 @ 100 kPa, 9.0 @ 100 kPa |
| Plate Thickness | 1-6mm, 100-125mm, 12-20mm, 150-200mm, 225-300mm, 25-75mm, 6-10mm |
| Size | 6, 8, 12, 15, 20, 24, 32 |
| Total Oxygen Flow Pressure | 11 l/min @ 200 kPa, 134 l/min @ 400 kPa, 20 l/min @ 200 kPa, 232 l/min @ 500 kPa, 38 l/min @ 200 kPa, 420 l/min @ 600 kPa, 75 l/min @ 350 kPa |
| Type | TYPE 41 (OXY/ACETYLENE) |
COMET Oxy/Acetylene Nozzles are a vital component of flame cutting equipment. Boasting the world’s first black nickel plating for tough wearing and discolouration resistance. These nozzles effortlessly provide preheating flames to raise the steel to ignition temperatures, whilst seamlessly directing the jet of oxygen onto the heated area to perform the cutting process.
• Excellent cut quality – Gas passages produced using swaging technology (Type 41 only) resulting in an extended, smooth, uniform oxygen jet stream. • Less slag adhesion – Manufactured from copper for extra durability and improved heat dissipation. • Narrow kerf width – Provides cleaner cuts and smoother lines with both hand cutting and profile machine cutting.
| Brand | Cigweld |
|---|---|
| Fuel Gas Flow | 12.5 @ 100 kPa, 2.0 @ 100 kPa, 20.0 @ 100 kPa, 3.5 @ 100 kPa, 4.0 @ 100 kPa, 7.0 @ 100 kPa, 9.0 @ 100 kPa |
| Plate Thickness | 1-6mm, 100-125mm, 12-20mm, 150-200mm, 225-300mm, 25-75mm, 6-10mm |
| Size | 6, 8, 12, 15, 20, 24, 32 |
| Total Oxygen Flow Pressure | 11 l/min @ 200 kPa, 134 l/min @ 400 kPa, 20 l/min @ 200 kPa, 232 l/min @ 500 kPa, 38 l/min @ 200 kPa, 420 l/min @ 600 kPa, 75 l/min @ 350 kPa |
| Type | TYPE 41 (OXY/ACETYLENE) |
| Select | 306046 Cigweld Comet Cutting Nozzle Oxy/Acet Type 41 / Size 6, 306047 Cigweld Comet Cutting Nozzle Oxy/Acet Type 41 / Size 8, 306048 Cigweld Comet Cutting Nozzle Oxy/Acet Type 41 / Size 12, 306049 Cigweld Comet Cutting Nozzle Oxy/Acet Type 41 / Size 15, 306050 Cigweld Comet Cutting Nozzle Oxy/Acet Type 41 / Size 20, 306051 Cigweld Comet Cutting Nozzle Oxy/Acet Type 41 / Size 24, 306052 Cigweld Comet Cutting Nozzle Oxy/Acet Type 41 / Size 32 |
|---|---|
