| Designation | N | Material | HSS |
| Finish | Brt | x | als |
| Point Angle | 60° | Cutting Edges | ul |
| Standard | ANSI B94-11 |
AUSTRALIA WIDE SHIPPING AVAILABLE
Opening hours: Mon – Fri 7:30am – 4:30pm
Opening hours: Mon – Fri 7:30am – 4:30pm
Brand
Item #
MOQ
Categories

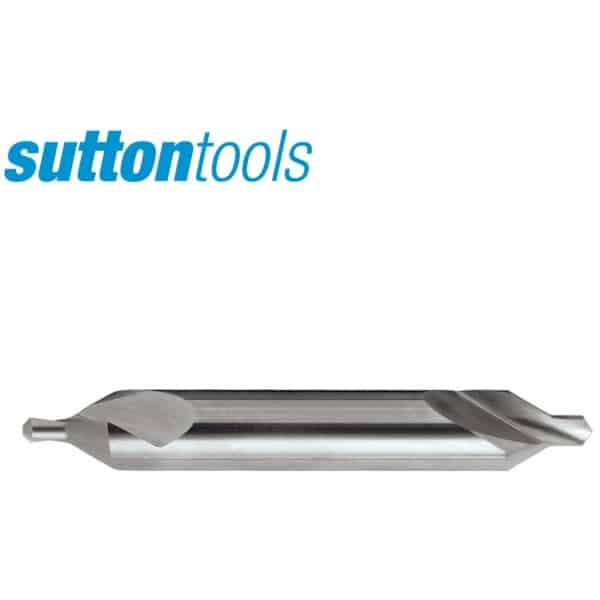

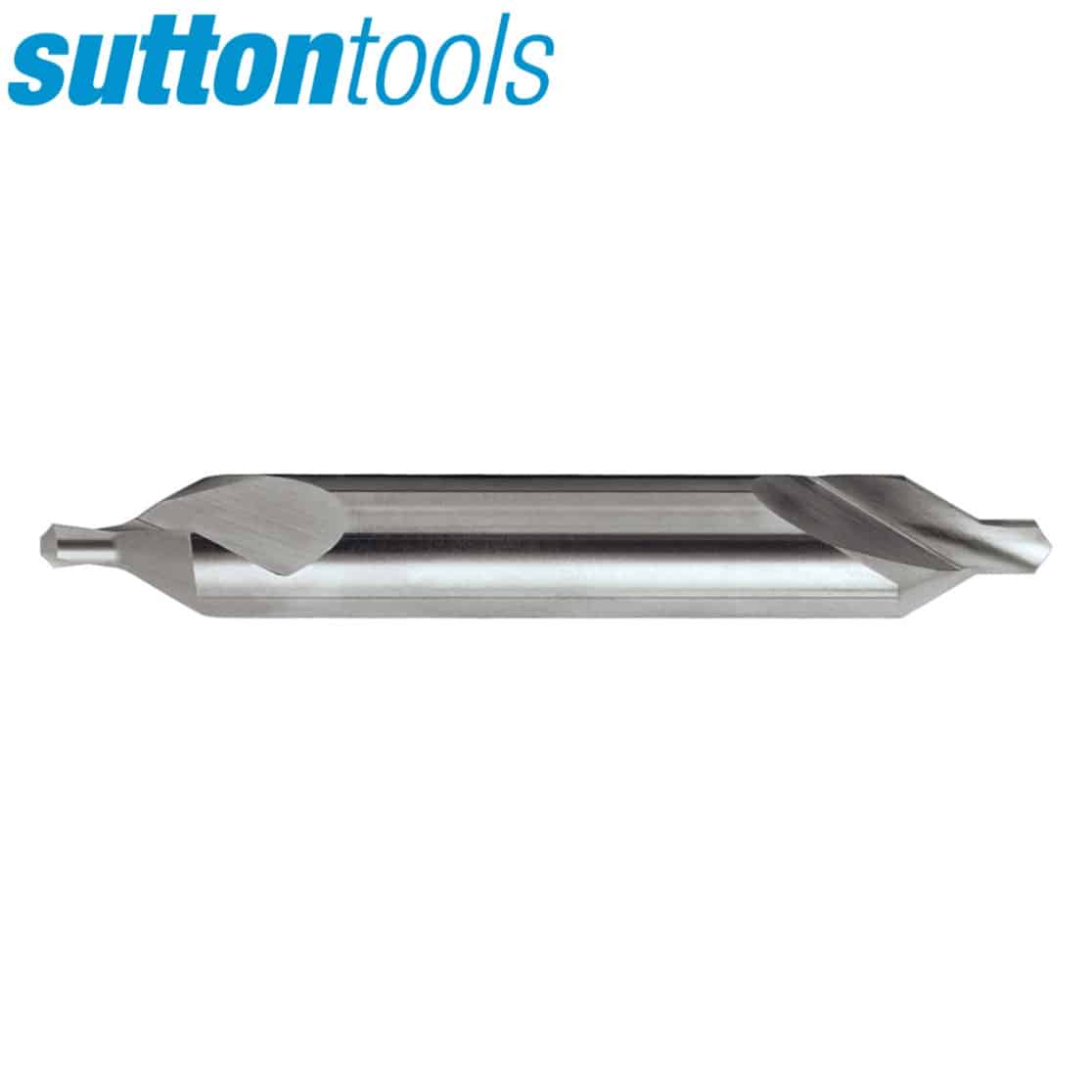

For drilling 60° centre holes in the end of shafts
For drilling 60° centre holes in the end of shafts
| Designation | N | Material | HSS |
| Finish | Brt | x | als |
| Point Angle | 60° | Cutting Edges | ul |
| Standard | ANSI B94-11 |
| Item # | Size Ref. | Type | d1 | l1 | l2 | d2 | MOQ |
| D1360001 | 1 | 1.19 | 3/64 | 1-1/4″ | 3/64″ | 1/8″ | 1 |
| D1360002 | 2 | 1.98 | 5/64 | 1-7/8 | 5/64″ | 3/16″ | 1 |
| D1360003 | 3 | 2.78 | 7/64 | 2 | 7/64″ | 1/4″ | 1 |
| D1360004 | 4 | 3.18 | 1/8″ | 2-1/8″ | 1/8″ | 5/16″ | 1 |
| D1360005 | 5 | 4.76 | 3/16 | 2-3/4″ | 3/16″ | 7/16″ | 1 |
| D1360006 | 6 | 5.56 | 7/32 | 3 | 7/32″ | 1/2″ | 1 |
| D1360007 | 7 | 6.35 | 1/4″ | 3-1/4″ | 1/4″ | 5/8″ | 1 |
| D1360008 | 8 | 7.94 | 5/16 | 3-1/2″ | 5/16 | 3/4″ | 1 |
For drilling 60° centre holes in the end of shafts
