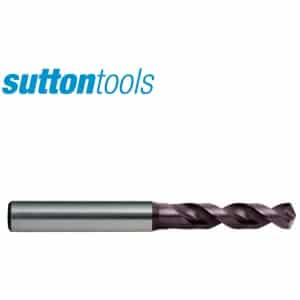

D155 Sutton Stub Drills R40 UNI SPM TiAIN 130° 4 Facet Form B / Select 1-20mm

Brand

Sutton Tools

Item #

D155 1-20mm

MOQ

1

Categories

, , ,
Add to quote
Buy Sutton Tools Cutting Tools Australia Tool Shop Brisbane Distributor Stockist Manufacturing Speciality Mining Tradesmen Industry Trade
  • Stub Drill R40 UNI offers superior performance
  • Suitable for materials up to 1500N/mm2
  • Point geometry ensures high strength & short chips
  • Endmill shank For greater accuracy
  • TiAlN for longer tool life
  • Suitable for production drilling as an alternative to carbide drills

Description

  • Stub Drill R40 UNI offers superior performance
  • Suitable for materials up to 1500N/mm2
  • Point geometry ensures high strength & short chips
  • Endmill shank For greater accuracy
  • TiAlN for longer tool life
  • Suitable for production drilling as an alternative to carbide drills
Designation UNI Material SPM
Finish TiAIN Max Cut Depth 3xD
Shank Form A Helix Angle R40
X als Point   Tolerance h8
Shank   Tolerance h7 Point Angle 130°
Point Form Form B Cutting Edges ul
Standard DIN1897

>>> Click here to view full range specifications <<<

Item # d1 (mm) l1 l2 d2
D1550100 1.00 38 6 3
D1550110 1.10 39 7 3
D1550120 1.20 40 8 3
D1550130 1.30 40 8 3
D1550140 1.40 41 9 3
D1550150 1.50 41 9 3
D1550160 1.60 42 10 3
D1550170 1.70 42 10 3
D1550180 1.80 43 11 3
D1550190 1.90 43 11 3
D1550200 2.00 44 12 3
D1550210 2.10 44 12 3
D1550220 2.20 45 13 3
D1550230 2.30 45 13 3
D1550240 2.40 46 14 3
D1550250 2.50 46 14 3
D1550260 2.60 46 14 3
D1550270 2.70 46 16 3
D1550280 2.80 46 16 3
D1550290 2.90 46 16 3
D1550300 3.00 46 16 3
D1550310 3.10 49 18 4
D1550320 3.20 49 18 4
D1550330 3.30 49 18 4
D1550340 3.40 52 20 4
D1550350 3.50 52 20 4
D1550360 3.60 52 20 4
D1550370 3.70 52 20 4
D1550380 3.80 55 22 4
D1550390 3.90 55 22 4
D1550400 4.00 55 22 4
D1550410 4.10 55 22 6
D1550420 4.20 55 22 6
D1550430 4.30 58 24 6
D1550440 4.40 58 24 6
D1550450 4.50 58 24 6
D1550460 4.60 58 24 6
D1550470 4.70 58 24 6
D1550480 4.80 62 26 6
D1550490 4.90 62 26 6
D1550500 5.00 62 26 6
D1550510 5.10 62 26 6
D1550520 5.20 62 26 6
D1550530 5.30 62 26 6
D1550540 5.40 66 28 6
D1550550 5.50 66 28 6
D1550560 5.60 66 28 6
D1550570 5.70 66 28 6
D1550580 5.80 66 28 6
D1550590 5.90 66 28 6
D1550600 6.00 66 28 6
D1550610 6.10 70 31 8
D1550620 6.20 70 31 8
D1550630 6.30 70 31 8
D1550640 6.40 70 31 8
D1550650 6.50 70 31 8
D1550660 6.60 70 31 8
D1550670 6.70 70 31 8
D1550680 6.80 74 34 8
D1550690 6.90 74 34 8
D1550700 7.00 74 34 8
D1550710 7.10 74 34 8
D1550720 7.20 74 34 8
D1550730 7.30 74 34 8
D1550740 7.40 74 34 8
D1550750 7.50 74 34 8
D1550760 7.60 79 37 8
D1550770 7.70 79 37 8
D1550780 7.80 79 37 8
D1550790 7.90 79 37 8

Stub Drills – R40 UNI | Sutton Tools

*** Full SUTTON TOOLS range available so if you don’t see it on our website just get in touch with us!









Description

  • Stub Drill R40 UNI offers superior performance
  • Suitable for materials up to 1500N/mm2
  • Point geometry ensures high strength & short chips
  • Endmill shank For greater accuracy
  • TiAlN for longer tool life
  • Suitable for production drilling as an alternative to carbide drills

Additional information

Brand

Select

D1550950 – 9.5mm / MOQ 1, D1550960 – 9.6mm / MOQ 1, D1550970 – 9.7mm / MOQ 1, D1550980 – 9.8mm / MOQ 1, D1550990 – 9.9mm / MOQ 1, D1551000 – 10mm / MOQ 1, D1551010 – 10.1mm / MOQ 1, D1551020 – 10.2mm / MOQ 1, D1551030 – 10.3mm / MOQ 1, D1551040 – 10.4mm / MOQ 1, D1551050 – 10.5mm / MOQ 1, D1551060 – 10.6mm / MOQ 1, D1551070 – 10.7mm / MOQ 1, D1551080 – 10.8mm / MOQ 1, D1551090 – 10.9mm / MOQ 1, D1551100 – 11mm / MOQ 1, D1551110 – 11.1mm / MOQ 1, D1551120 – 11.2mm / MOQ 1, D1551130 – 11.3mm / MOQ 1, D1551140 – 11.4mm / MOQ 1, D1551150 – 11.5mm / MOQ 1, D1551160 – 11.6mm / MOQ 1, D1551170 – 11.7mm / MOQ 1, D1551180 – 11.8mm / MOQ 1, D1551190 – 11.9mm / MOQ 1, D1551200 – 12mm / MOQ 1, D1551210 – 12.1mm / MOQ 1, D1551220 – 12.2mm / MOQ 1, D1551230 – 12.3mm / MOQ 1, D1551240 – 12.4mm / MOQ 1, D1551250 – 12.5mm / MOQ 1, D1551260 – 12.6mm / MOQ 1, D1551270 – 12.7mm / MOQ 1, D1551280 – 12.8mm / MOQ 1, D1551290 – 12.9mm / MOQ 1, D1551300 – 13mm / MOQ 1, D1551350 – 13.5mm / MOQ 1, D1551400 – 14mm / MOQ 1, D1551450 – 14.5mm / MOQ 1, D1551500 – 15mm / MOQ 1, D1551550 – 15.5mm / MOQ 1, D1551600 – 16mm / MOQ 1, D1551650 – 16.5mm / MOQ 1, D1551700 – 17mm / MOQ 1, D1551750 – 17.5mm / MOQ 1, D1551800 – 18mm / MOQ 1, D1551850 – 18.5mm / MOQ 1, D1551900 – 19mm / MOQ 1, D1551950 – 19.5mm / MOQ 1, D1552000 – 20mm / MOQ 1, D1550450 – 4.5mm / MOQ 1, D1550460 – 4.6mm / MOQ 1, D1550470 – 4.7mm / MOQ 1, D1550480 – 4.8mm / MOQ 1, D1550490 – 4.9mm / MOQ 1, D1550500 – 5mm / MOQ 1, D1550510 – 5.1mm / MOQ 1, D1550520 – 5.2mm / MOQ 1, D1550530 – 5.3mm / MOQ 1, D1550540 – 5.4mm / MOQ 1, D1550550 – 5.5mm / MOQ 1, D1550560 – 5.6mm / MOQ 1, D1550570 – 5.7mm / MOQ 1, D1550580 – 5.8mm / MOQ 1, D1550590 – 5.9mm / MOQ 1, D1550600 – 6mm / MOQ 1, D1550610 – 6.1mm / MOQ 1, D1550620 – 6.2mm / MOQ 1, D1550630 – 6.3mm / MOQ 1, D1550640 – 6.4mm / MOQ 1, D1550650 – 6.5mm / MOQ 1, D1550660 – 6.6mm / MOQ 1, D1550670 – 6.7mm / MOQ 1, D1550680 – 6.8mm / MOQ 1, D1550690 – 6.9mm / MOQ 1, D1550700 – 7mm / MOQ 1, D1550710 – 7.1mm / MOQ 1, D1550720 – 7.2mm / MOQ 1, D1550730 – 7.3mm / MOQ 1, D1550740 – 7.4mm / MOQ 1, D1550750 – 7.5mm / MOQ 1, D1550760 – 7.6mm / MOQ 1, D1550770 – 7.7mm / MOQ 1, D1550780 – 7.8mm / MOQ 1, D1550790 – 7.9mm / MOQ 1, D1550800 – 8mm / MOQ 1, D1550810 – 8.1mm / MOQ 1, D1550820 – 8.2mm / MOQ 1, D1550830 – 8.3mm / MOQ 1, D1550840 – 8.4mm / MOQ 1, D1550850 – 8.5mm / MOQ 1, D1550860 – 8.6mm / MOQ 1, D1550870 – 8.7mm / MOQ 1, D1550880 – 8.8mm / MOQ 1, D1550890 – 8.9mm / MOQ 1, D1550900 – 9mm / MOQ 1, D1550910 – 9.1mm / MOQ 1, D1550920 – 9.2mm / MOQ 1, D1550930 – 9.3mm / MOQ 1, D1550940 – 9.4mm / MOQ 1, D1550100 – 1mm / MOQ 1, D1550110 – 1.1mm / MOQ 1, D1550120 – 1.2mm / MOQ 1, D1550130 – 1.3mm / MOQ 1, D1550140 – 1.4mm / MOQ 1, D1550150 – 1.5mm / MOQ 1, D1550160 – 1.6mm / MOQ 1, D1550170 – 1.7mm / MOQ 1, D1550180 – 1.8mm / MOQ 1, D1550190 – 1.9mm / MOQ 1, D1550200 – 2mm / MOQ 1, D1550210 – 2.1mm / MOQ 1, D1550220 – 2.2mm / MOQ 1, D1550230 – 2.3mm / MOQ 1, D1550240 – 2.4mm / MOQ 1, D1550250 – 2.5mm / MOQ 1, D1550260 – 2.6mm / MOQ 1, D1550270 – 2.7mm / MOQ 1, D1550280 – 2.8mm / MOQ 1, D1550290 – 2.9mm / MOQ 1, D1550300 – 3mm / MOQ 1, D1550310 – 3.1mm / MOQ 1, D1550320 – 3.2mm / MOQ 1, D1550330 – 3.3mm / MOQ 1, D1550340 – 3.4mm / MOQ 1, D1550350 – 3.5mm / MOQ 1, D1550360 – 3.6mm / MOQ 1, D1550370 – 3.7mm / MOQ 1, D1550380 – 3.8mm / MOQ 1, D1550390 – 3.9mm / MOQ 1, D1550400 – 4mm / MOQ 1, D1550410 – 4.1mm / MOQ 1, D1550420 – 4.2mm / MOQ 1, D1550430 – 4.3mm / MOQ 1, D1550440 – 4.4mm / MOQ 1
