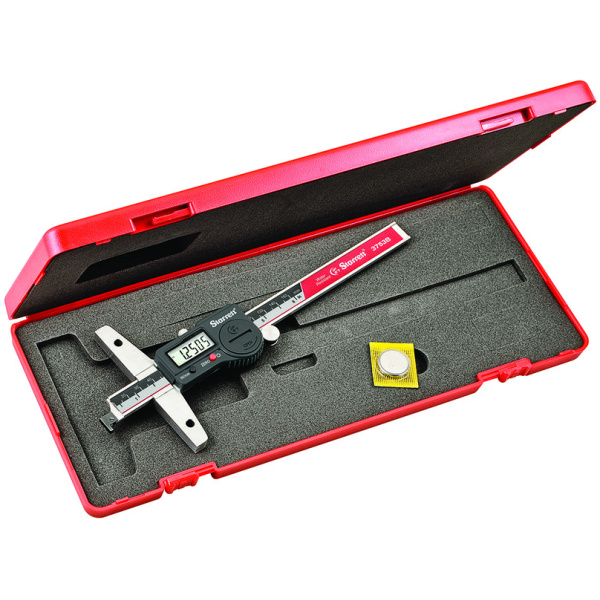

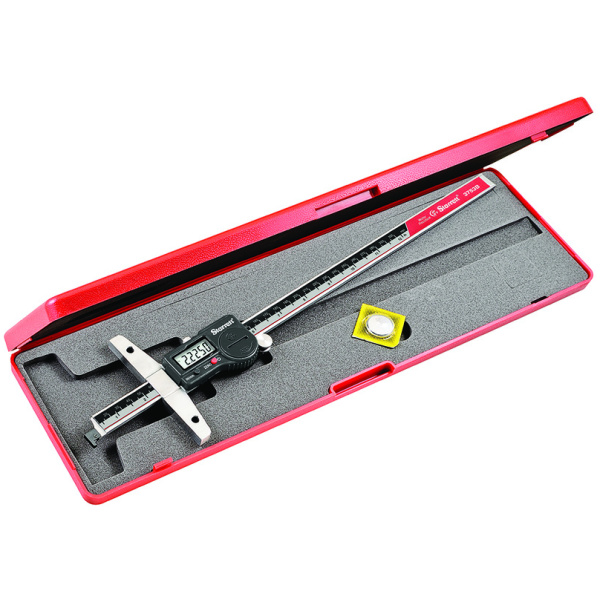

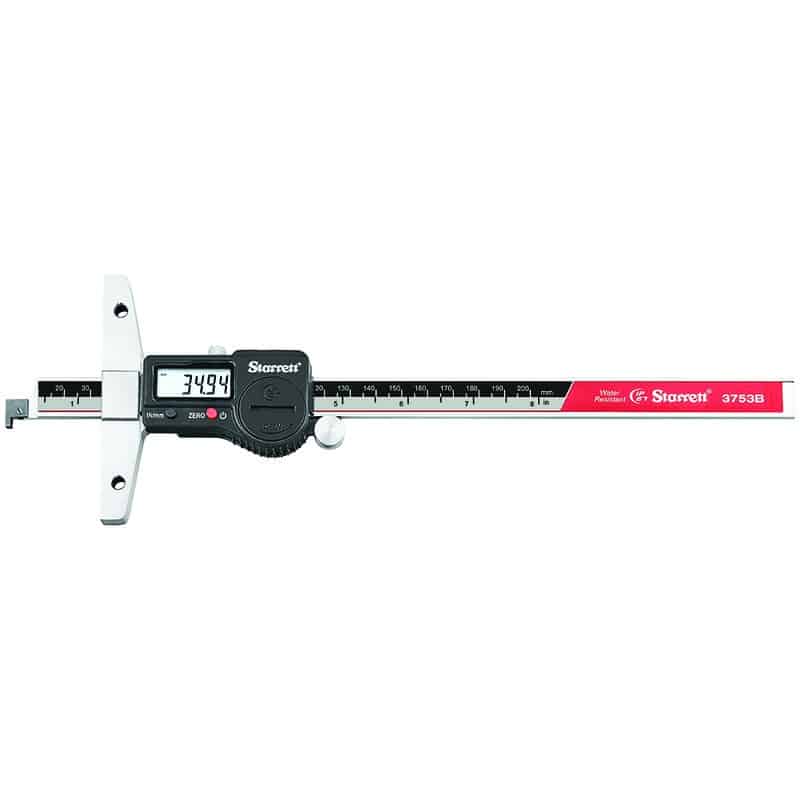

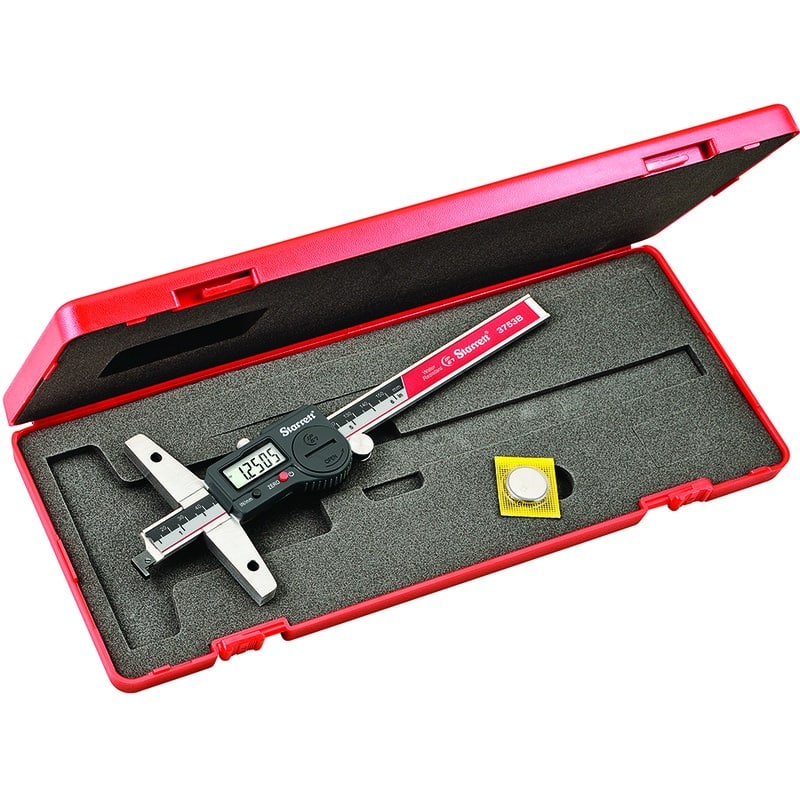

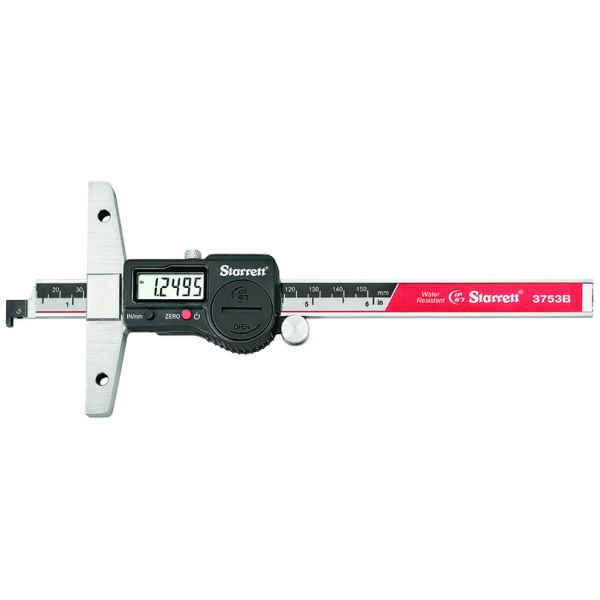

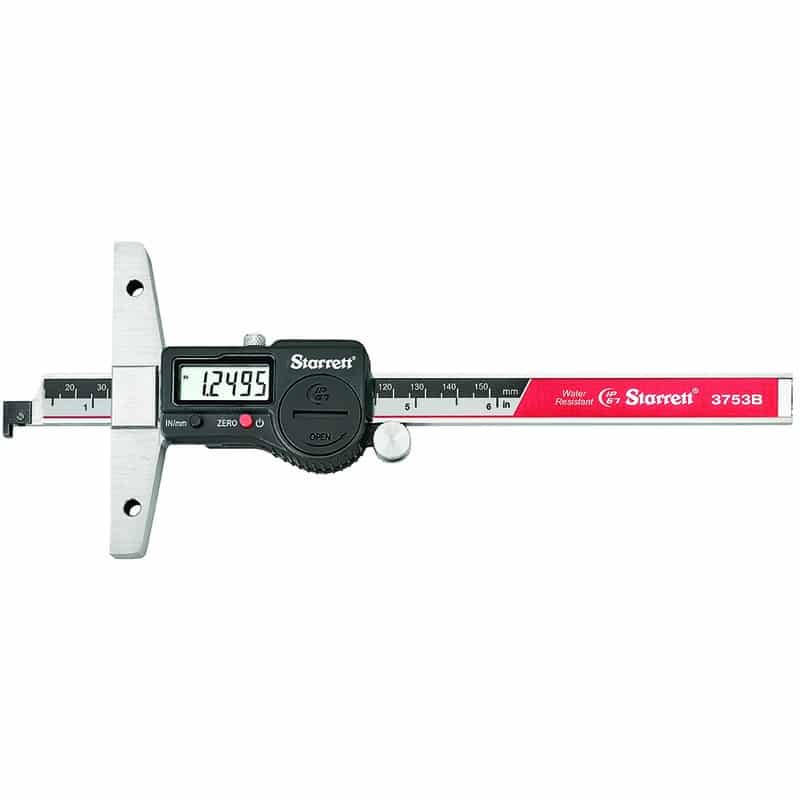

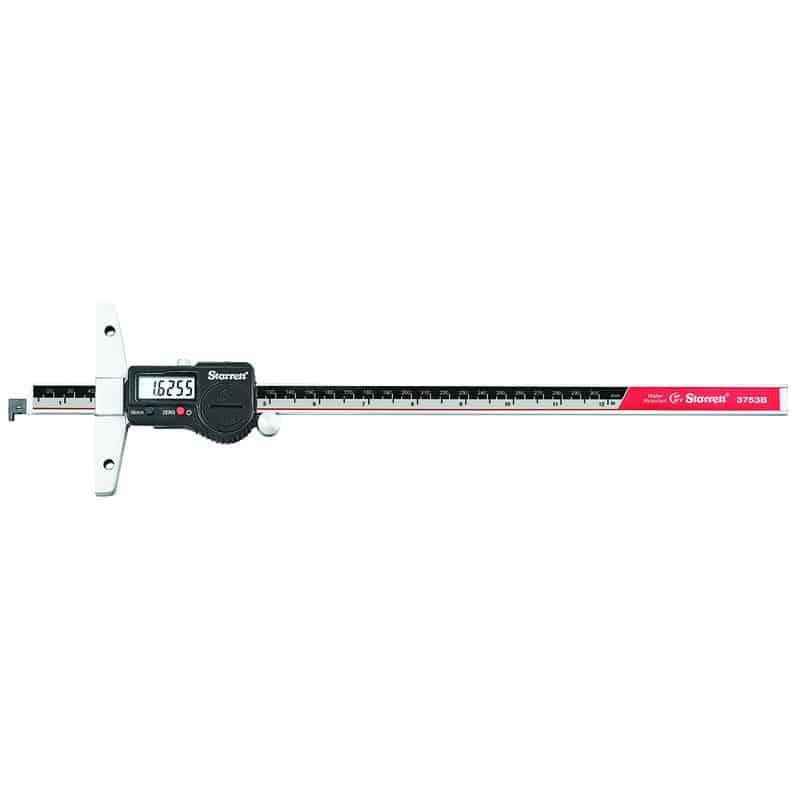

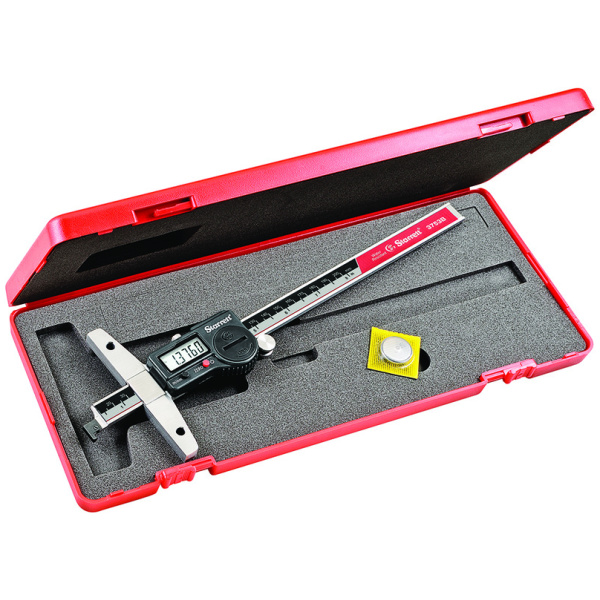

3753B Starrett Electronic Depth Gage IP67 / Select Length
3753B Starrett Electronic Depth Gage IP67 / Select Length - Image 2
3753B Starrett Electronic Depth Gage IP67 / Select Length - Image 3
3753B Starrett Electronic Depth Gage IP67 / Select Length - Image 4
3753B Starrett Electronic Depth Gage IP67 / Select Length - Image 5
3753B Starrett Electronic Depth Gage IP67 / Select Length - Image 6
3753B Starrett Electronic Depth Gage IP67 / Select Length - Image 7

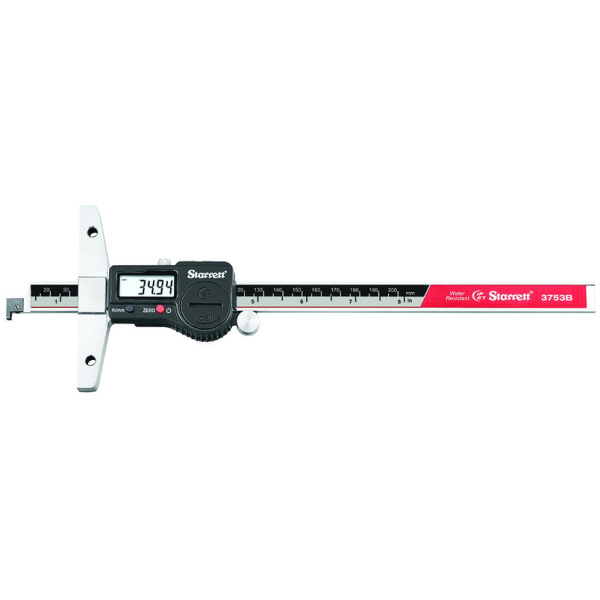

3753B Starrett Electronic Depth Gage IP67 / Select Length

Brand

Starrett Precision Tools

Item #

Starrett3753B

MOQ

1

Categories

, ,
Add to quote
Starrett Precision Measuring Tools & Instruments Buy Australia Distributor Sale Tool Shop Brisbane Engineers Engineering Tools Measuring & Precision Tools

The 3753B Electronic Depth Gage is a versatile, easy-to-use tool for measuring depth, slot width, small section sizes and other applications. The gage provides an IP67 level of protection against foreign matter in a hostile shop environment and has an extra-large LCD for excellent readability. It also offers RS232 output to work with Datasure Wireless Systems as well as with cable-based products.

  •  Clear, easily-read numbers, properly sized for the tool
  •  Hardened stainless steel body and slide for long life
  •  Fine adjustment thumb roll for precision measurements
  •  Lock to hold the slide in position
  •  Hardened base is 3-15/16″ (99mm) long, but optional base extensions of 7″ and 12″ (175 and 300mm) are available.
  •  Spacing between holes is 2-3/4″ (70mm).
  •  Hook attachment, to take readings from the edge of a work piece to edges of slots, grooves, shoulders, and other I.D. length dimensioning.
  •  The removable hook has the screw permanently attached to prevent loss.
  •  One-year minimum battery life with furnished 3-volt battery, CR2033
  •  Inch/millimeter conversion
  •  Zero at any position
  •  Automatic shutoff after 30 minutes of non-use without loss of position upon reactivation
  •  Linear accuracy :+/- .001″ (0.03mm)
  •  .0005″ (0.010mm) resolution

*** Special Order – 8-12 weeks

Specification3753B-6/1503753B-8/200 ***3753B-12/300 ***
Range (in)0″ to 6″0″ to 8″0″ to 12″
Range (mm)0mm to 150mm0mm to 200mm0mm to 300mm
Resolution (in).0005″.0005″.0005″
Resolution (mm)0.01mm0.01mm0.01mm

Description

The 3753B Electronic Depth Gage is a versatile, easy-to-use tool for measuring depth, slot width, small section sizes and other applications. The gage provides an IP67 level of protection against foreign matter in a hostile shop environment and has an extra-large LCD for excellent readability. It also offers RS232 output to work with Datasure Wireless Systems as well as with cable-based products.

  •  Clear, easily-read numbers, properly sized for the tool
  •  Hardened stainless steel body and slide for long life
  •  Fine adjustment thumb roll for precision measurements
  •  Lock to hold the slide in position
  •  Hardened base is 3-15/16″ (99mm) long, but optional base extensions of 7″ and 12″ (175 and 300mm) are available.
  •  Spacing between holes is 2-3/4″ (70mm).
  •  Hook attachment, to take readings from the edge of a work piece to edges of slots, grooves, shoulders, and other I.D. length dimensioning.
  •  The removable hook has the screw permanently attached to prevent loss.
  •  One-year minimum battery life with furnished 3-volt battery, CR2033
  •  Inch/millimeter conversion
  •  Zero at any position
  •  Automatic shutoff after 30 minutes of non-use without loss of position upon reactivation
  •  Linear accuracy :+/- .001″ (0.03mm)
  •  .0005″ (0.010mm) resolution

*** Special Order – 8-12 weeks

Specification3753B-6/1503753B-8/200 ***3753B-12/300 ***
Range (in)0″ to 6″0″ to 8″0″ to 12″
Range (mm)0mm to 150mm0mm to 200mm0mm to 300mm
Resolution (in).0005″.0005″.0005″
Resolution (mm)0.01mm0.01mm0.01mm

Electronic Depth Gages (starrett.com)

*** Full STARRETT range available so if you don’t see it on our website just get in touch with us!Starrett Precision Measuring Tools & Instruments Buy Australia Distributor Sale

Description

The 3753B Electronic Depth Gage is a versatile, easy-to-use tool for measuring depth, slot width, small section sizes and other applications. The gage provides an IP67 level of protection against foreign matter in a hostile shop environment and has an extra-large LCD for excellent readability. It also offers RS232 output to work with Datasure Wireless Systems as well as with cable-based products.

  •  Clear, easily-read numbers, properly sized for the tool
  •  Hardened stainless steel body and slide for long life
  •  Fine adjustment thumb roll for precision measurements
  •  Lock to hold the slide in position
  •  Hardened base is 3-15/16″ (99mm) long, but optional base extensions of 7″ and 12″ (175 and 300mm) are available.
  •  Spacing between holes is 2-3/4″ (70mm).
  •  Hook attachment, to take readings from the edge of a work piece to edges of slots, grooves, shoulders, and other I.D. length dimensioning.
  •  The removable hook has the screw permanently attached to prevent loss.
  •  One-year minimum battery life with furnished 3-volt battery, CR2033
  •  Inch/millimeter conversion
  •  Zero at any position
  •  Automatic shutoff after 30 minutes of non-use without loss of position upon reactivation
  •  Linear accuracy :+/- .001″ (0.03mm)
  •  .0005″ (0.010mm) resolution

*** Special Order – 8-12 weeks

Specification3753B-6/1503753B-8/200 ***3753B-12/300 ***
Range (in)0″ to 6″0″ to 8″0″ to 12″
Range (mm)0mm to 150mm0mm to 200mm0mm to 300mm
Resolution (in).0005″.0005″.0005″
Resolution (mm)0.01mm0.01mm0.01mm

Additional information

Brand

Select

3753B-8/200 Range: 0" to 8” / Range: 0mm to 200mm *Special Order 4-6 month lead time, 3753B-6/150 Range: 0" to 6” / Range: 0mm to 150mm, 3753B-12/300 Range: 0" to 12” / Range: 0mm to 300mm
