depth gauge measuring tool, depth measuring gauge, dial depth gages, dial depth gauges, Starrett Australia
450-6

450 Starrett Dial Depth Gage / Select

Brand

Starrett Precision Tools

Item #

Starrett450

MOQ

1

Categories

, ,
Add to quote
Starrett Precision Measuring Tools & Instruments Buy Australia Distributor Sale Tool Shop Brisbane Engineers Engineering Tools Measuring & Precision Tools

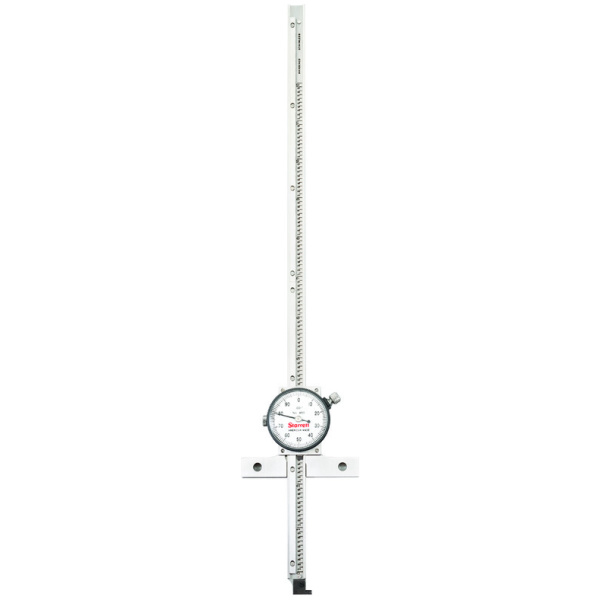

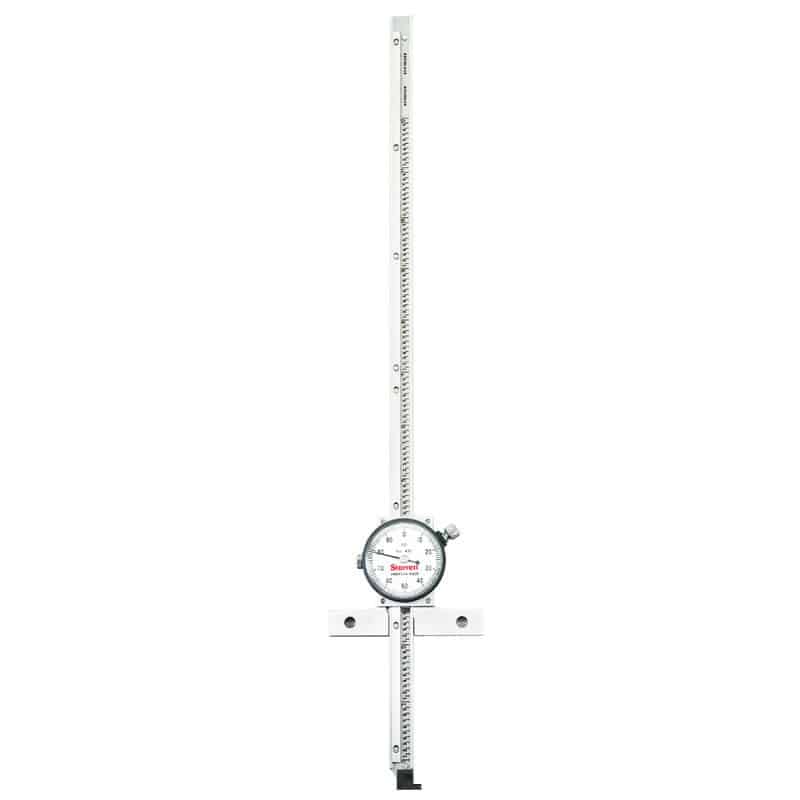

The Starrett 450 Dial Depth Gage is ideal for the individual mechanic. It is light, reliable and accurate for measurements to .001″ or 0.02mm and will fit into most toolboxes, 001″ Grad.

  •  Sharp, easy-to-read dial graduations of .001-.100″ in one revolution
  •  Sharp, black graduations on the satin chrome finished bar, every .100″ or 1mm
  •  Lock screw for dial bezel
  •  Lock screw for holding the measuring rod in position
  •  Optional base extensions of 7″ and 12″ (175 and 300mm) are available to increase the base span on both models
  •  Removable hook attachment permits readings from the edge of a workpiece to edges of slots, shoulders, etc.
  •  Hardened, stainless steel base, measuring bar, rack and gears
  •  Positive split gear anti-backlash control
Specification 450-6 450-12
Range (in) 0-6″ 0-12″
Graduations (in) .001″ .001″
Dial Reading 0-100 0-100

Description

The Starrett 450 Dial Depth Gage is ideal for the individual mechanic. It is light, reliable and accurate for measurements to .001″ or 0.02mm and will fit into most toolboxes, 001″ Grad.

  •  Sharp, easy-to-read dial graduations of .001-.100″ in one revolution
  •  Sharp, black graduations on the satin chrome finished bar, every .100″ or 1mm
  •  Lock screw for dial bezel
  •  Lock screw for holding the measuring rod in position
  •  Optional base extensions of 7″ and 12″ (175 and 300mm) are available to increase the base span on both models
  •  Removable hook attachment permits readings from the edge of a workpiece to edges of slots, shoulders, etc.
  •  Hardened, stainless steel base, measuring bar, rack and gears
  •  Positive split gear anti-backlash control
Specification 450-6 450-12
Range (in) 0-6″ 0-12″
Graduations (in) .001″ .001″
Dial Reading 0-100 0-100

Dial Depth Gages (starrett.com)

*** Full STARRETT range available so if you don’t see it on our website just get in touch with us!Starrett Precision Measuring Tools & Instruments Buy Australia Distributor Sale

Description

The Starrett 450 Dial Depth Gage is ideal for the individual mechanic. It is light, reliable and accurate for measurements to .001″ or 0.02mm and will fit into most toolboxes, 001″ Grad.

  •  Sharp, easy-to-read dial graduations of .001-.100″ in one revolution
  •  Sharp, black graduations on the satin chrome finished bar, every .100″ or 1mm
  •  Lock screw for dial bezel
  •  Lock screw for holding the measuring rod in position
  •  Optional base extensions of 7″ and 12″ (175 and 300mm) are available to increase the base span on both models
  •  Removable hook attachment permits readings from the edge of a workpiece to edges of slots, shoulders, etc.
  •  Hardened, stainless steel base, measuring bar, rack and gears
  •  Positive split gear anti-backlash control
Specification 450-6 450-12
Range (in) 0-6″ 0-12″
Graduations (in) .001″ .001″
Dial Reading 0-100 0-100

Additional information

Brand

Select

450-6 Range: 0-6", 450-12 Range: 0-12"
