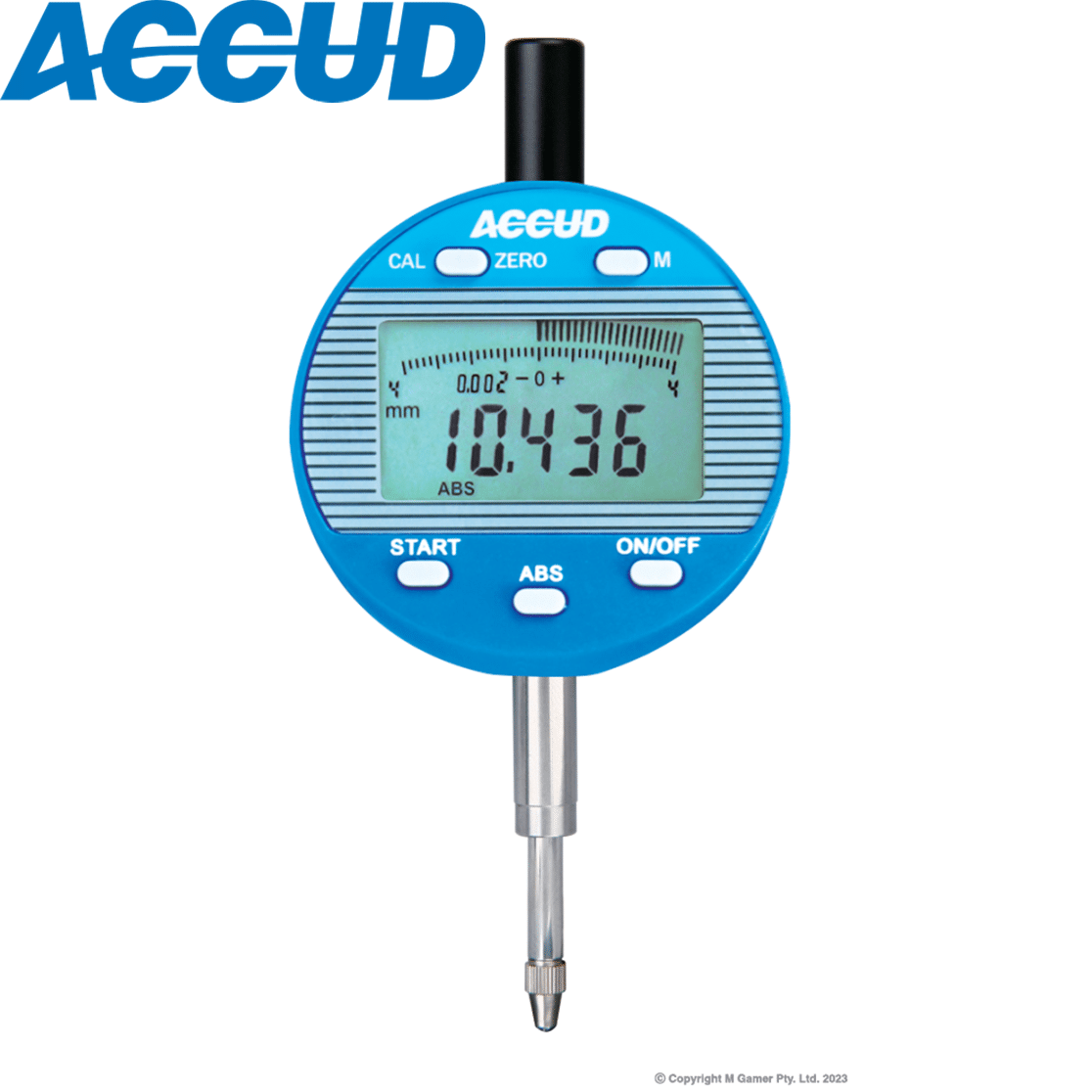

• Specially designed for bore gauges
• The minimum value tracking function can find the diameter automatically
• Read the diameter directly, after inputting the size of setting ring
• Reading in digit and analog
• Button: minimum value tracking, calibration, data preset, inch/metric conversion, absolute/incremental measurement
• Automatic power off
• Data output (cable code:200-03 or 200-04)
SPECIFICATIONS
Part No
Range
Accuracy
Hysteresis
Remark
Resolution
AC-215-010-12
12.7mm/0.5″
20µm
10µm
flat back
0.002mm/0.00001″
Description
• Specially designed for bore gauges
• The minimum value tracking function can find the diameter automatically
• Read the diameter directly, after inputting the size of setting ring
• Reading in digit and analog
• Button: minimum value tracking, calibration, data preset, inch/metric conversion, absolute/incremental measurement
• Automatic power off
• Data output (cable code:200-03 or 200-04)
*** Full ACCUD range available so if you don’t see it on our website just get in touch with us!
