E102 Sutton Slot Drills 2 Flute Long HSS Co.8 R30 N DIN 1835 A / Select

E102 Sutton Slot Drills 2 Flute Long HSS Co.8 R30 N DIN 1835 A / Select - Image 2

E102 Sutton Slot Drills 2 Flute Long HSS Co.8 R30 N DIN 1835 A / Select - Image 3

E102 Sutton Slot Drills 2 Flute Long HSS Co.8 R30 N DIN 1835 A / Select

Brand

Item #

E102

MOQ

1

Categories

Cutting Tools, Drill Bits & Accessories, Our Products, Slot Drills

Dropdown

E100 Sutton Slot Drills 2 Flute HSS Co.8 R30 N DIN 1835 A

2 Flute Slot Drill R30 N
Suitable for materials up to 1000 N/mm2
For soft steels & non-ferrous material
TiCN for longer tool life

Description

E100 Sutton Slot Drills 2 Flute HSS Co.8 R30 N DIN 1835 A

2 Flute Slot Drill R30 N
Suitable for materials up to 1000 N/mm2
For soft steels & non-ferrous material
TiCN for longer tool life

Designation	N	Material	HSS Co. 8
Finish	Brt	Shank Form	A
Helix Angle	R30	Point Tolerance	e8
Shank Tolerance	h6	Point Form	Square End
Type	N (finishing)	Standard	JIS

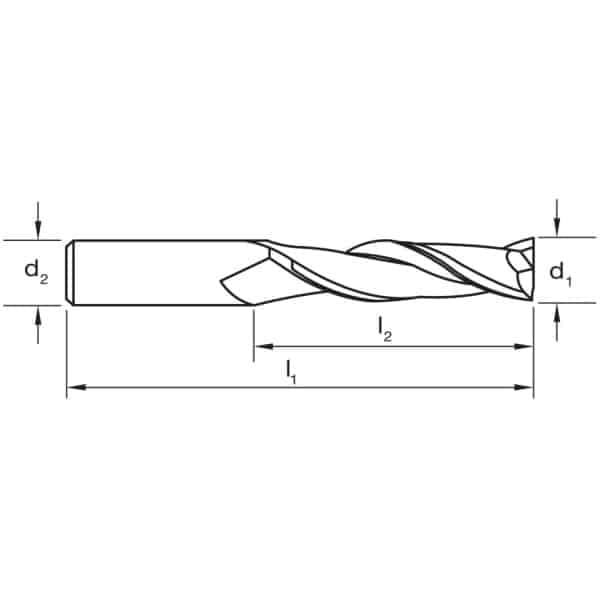

Item #	Size Ref.	d1 (e8)	l1	l2	d2	z
E1020300	300	3	60	15	6	2
E1020350	350	3.5	60	20	6	2
E1020400	400	4	60	20	8	2
E1020450	450	4.5	60	25	6	2
E1020500	500	5	65	25	8	2
E1020550	550	5.5	65	25	6	2
E1020600	600	6	65	25	8	2
E1020650	650	6.5	80	35	10	2
E1020700	700	7	80	35	10	2
E1020750	750	7.5	80	35	10	2
E1020800	800	8	80	35	10	2
E1020850	850	8.5	95	45	10	2
E1020900	900	9	95	45	10	2
E1020950	950	9.5	95	45	10	2
E1021000	1000	10	95	45	10	2
E1021100	1100	11	105	55	12	2
E1021200	1200	12	105	55	12	2
E1021400	1400	14	110	55	16	2
E1021600	1600	16	120	65	16	2
E1021800	1800	18	130	65	20	2
E1022000	2000	20	140	75	20	2
E1022200	2200	22	140	75	20	2
E1022400	2400	24	160	90	25	2
E1022500	2500	25	160	90	25	2

2 Flute Slot Drills – R30 N – Long | Sutton Tools

*** Full SUTTON TOOLS range available so if you don’t see it on our website just get in touch with us!

Description

E100 Sutton Slot Drills 2 Flute HSS Co.8 R30 N DIN 1835 A

2 Flute Slot Drill R30 N
Suitable for materials up to 1000 N/mm2
For soft steels & non-ferrous material
TiCN for longer tool life

Additional information

Dropdown

E1020300 – 3 x 6, E1020350 – 3.5 x 6, E1020400 – 4 x 8, E1020450 – 4.5 x 6, E1020500 – 5 x 8, E1020550 – 5.5 x 6, E1020600 – 6 x 8, E1020650 – 6.5 x 10, E1020700 – 7 x 10, E1020750 – 7.5 x 10, E1020800 – 8 x 10, E1020850 – 8.5 x 10, E1020900 – 9 x 10, E1020950 – 9.5 x 10, E1021000 – 10 x 10, E1021100 – 11 x 12, E1021200 – 12 x 12, E1021400 – 14 x 16, E1021600 – 16 x 16, E1021800 – 18 x 20, E1022000 – 20 x 20, E1022200 – 22 x 20, E1022400 – 24 x 25, E1022500 – 25 x 25
