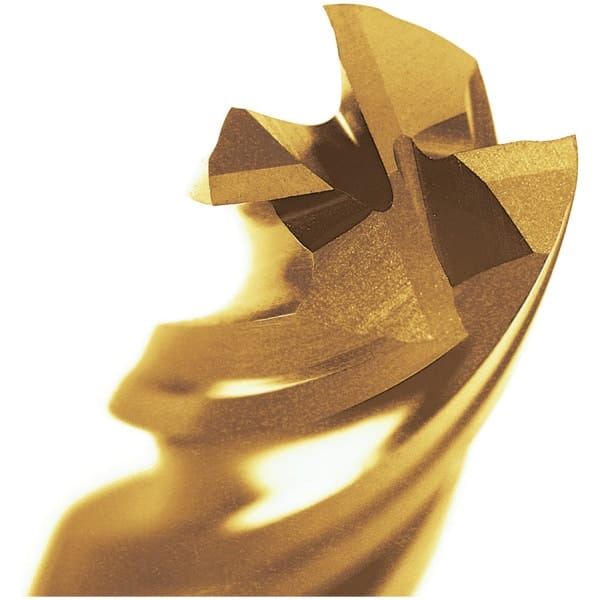

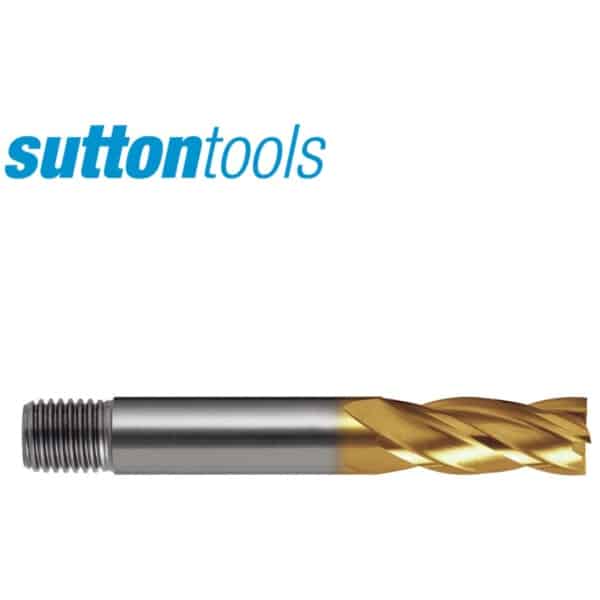

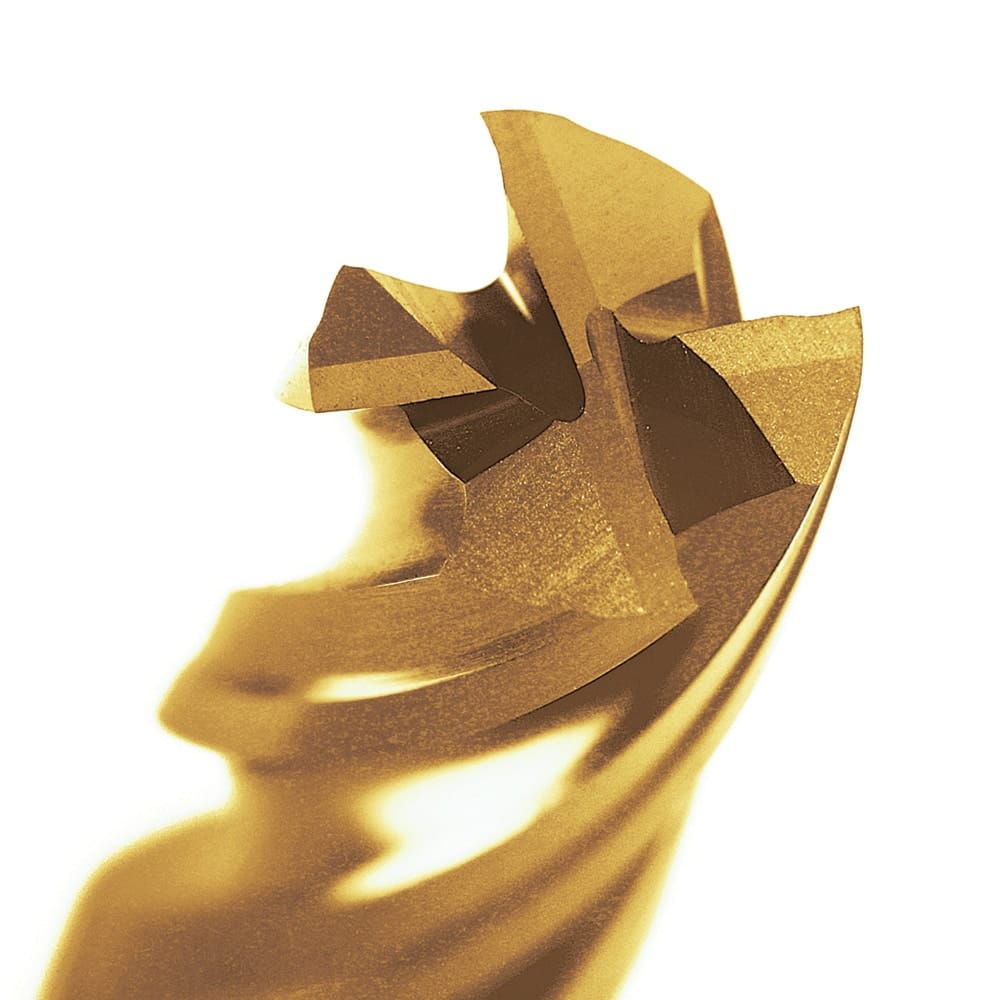

E130 Sutton 4 Flute Endmills HSS Co. TiN R30 N Threaded / Select

E130 Sutton 4 Flute Endmills HSS Co. TiN R30 N Threaded / Select - Image 2

E130 Sutton 4 Flute Endmills HSS Co. TiN R30 N Threaded / Select - Image 3

E130 Sutton 4 Flute Endmills HSS Co. TiN R30 N Threaded / Select

Brand

Item #

E130

MOQ

1

Categories

Cutting Tools, Endmills, Milling & Lathe Tools, Our Products

Dropdown

For finish milling applications

4 Flute Endmill R30 N
Suitable for materials up to 850 N/mm2
For soft steels & non-ferrous material

Description

For finish milling applications

4 Flute Endmill R30 N
Suitable for materials up to 850 N/mm2
For soft steels & non-ferrous material

Designation	N	Material	HSS Co
Finish	TiN	Shank Form	D
Helix Angle	R30	Point Tolerance	k9
Shank Tolerance	-0.025	Point Form	Square End
Type	N (finishing)	Standard	Sutton

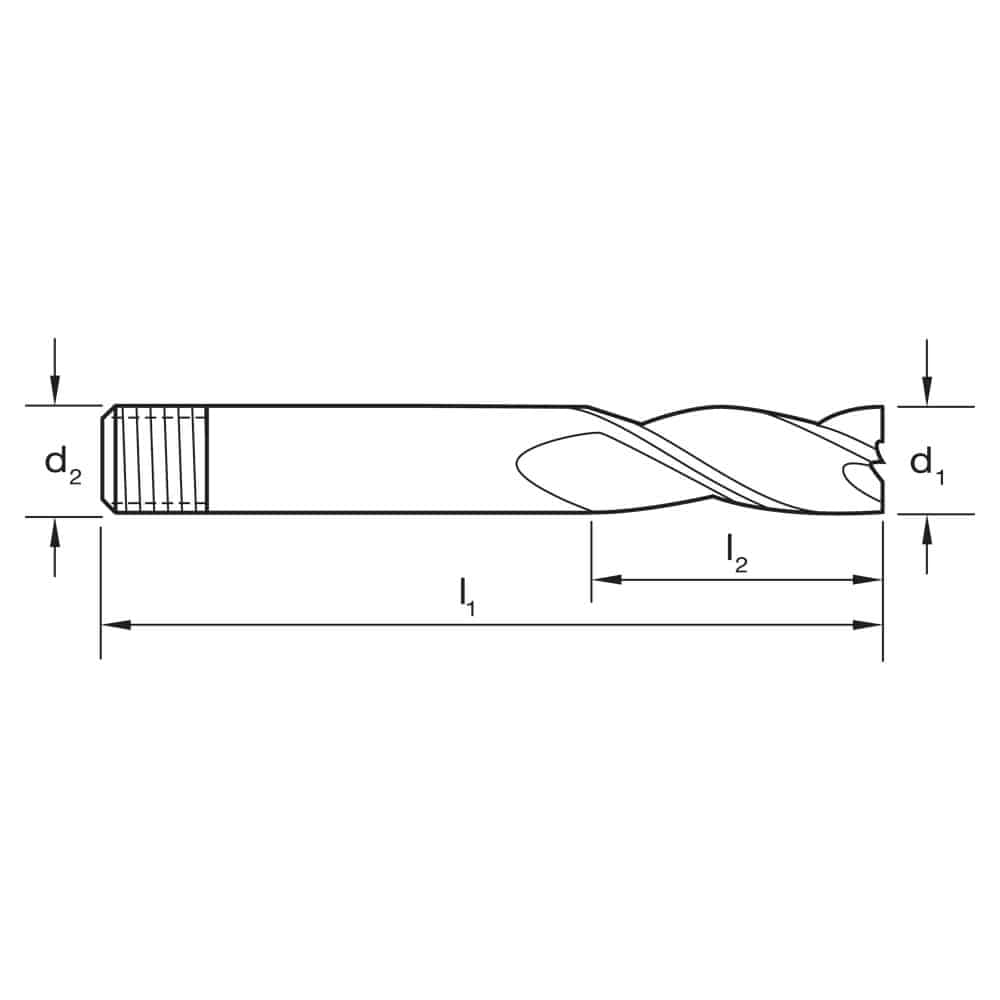

Item #	d1 (h9)	l1	l2	d2	z
E1300300	3	54	10	6	4
E1300318	1/8	54	9.5	1/4	4
E1300400	4	57	13	6	4
E1300476	3/16	57	12.5	1/4	4
E1300500	5	60.5	16	6	4
E1300794	5/16	64	19	3/8	4
E1300800	8	63.5	18	10	4
E1301000	10	66.5	21	10	4
E1301200	12	70	24	12	4
E1301600	16	77	26.5	16	4
E1302000	20	83.5	38	16	4

4 Flute Endmills – R30 N – Regular (Threaded) | Sutton Tools

*** Full SUTTON TOOLS range available so if you don’t see it on our website just get in touch with us!

Description

For finish milling applications

4 Flute Endmill R30 N
Suitable for materials up to 850 N/mm2
For soft steels & non-ferrous material

Additional information

Dropdown	E130 0300 – 3 x 6, E130 0400 – 4 x 6, E130 0500 – 5 x 6, E130 0800 – 8 x 10, E130 1000 – 10 x 10, E130 1200 – 12 x 12, E130 1600 – 16 x 16, E130 2000 – 20 x 16, E1300476 – 3/16 x 1/4, E1300794 – 5/16 x 3/8, E1300318 – 1/8 X 1/4
Brand	Sutton Tools
