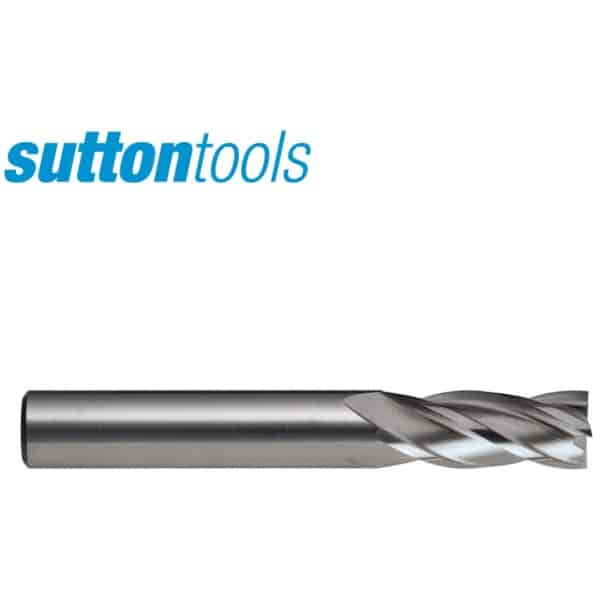

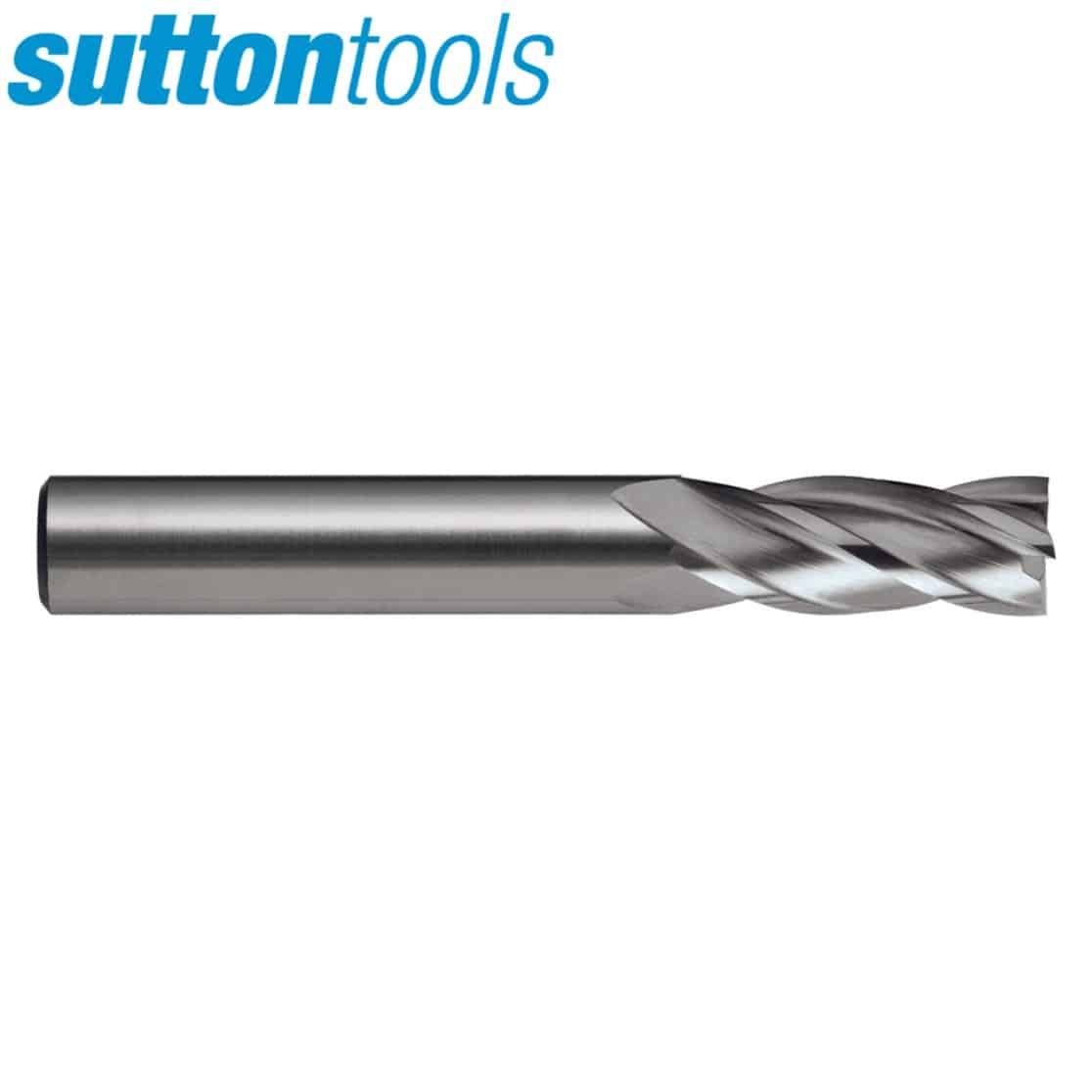

E227 Sutton Endmills 4 Flute R30 N DIN 1835 A / Select

E227 Sutton Endmills 4 Flute R30 N DIN 1835 A / Select - Image 2

E227 Sutton Endmills 4 Flute R30 N DIN 1835 A / Select - Image 3

E227 Sutton Endmills 4 Flute R30 N DIN 1835 A / Select

Brand

Item #

E227

MOQ

1

Categories

Cutting Tools, Endmills, Milling & Lathe Tools, Our Products

Dropdown

Clear

Add To Quote Request

For precision finish milling applications

4 Flute Endmill R30 N
Suitable for materials up to 1000 N/mm2
TiCN for longer tool life

Description

For precision finish milling applications

4 Flute Endmill R30 N
Suitable for materials up to 1000 N/mm2
TiCN for longer tool life

Designation	N	Material	HSS Co. 8
Finish	Brt	Shank Form	A
Helix Angle	R30	Point Tolerance	k9
Shank Tolerance	h6	Point Form	Square End
Type	N (finishing)	Standard	JIS

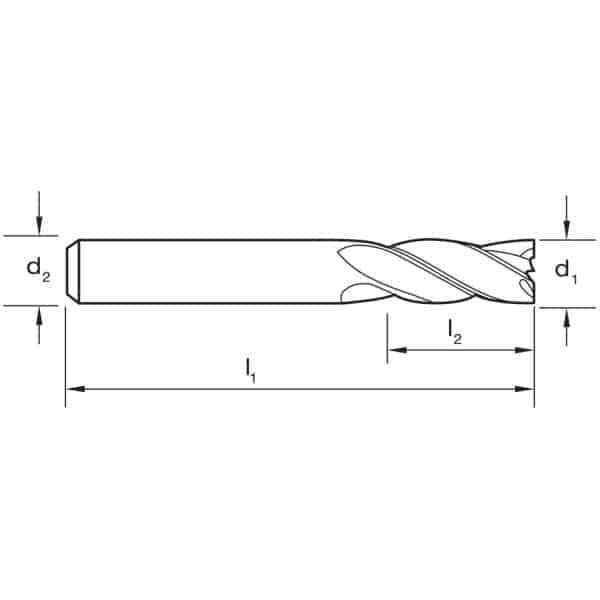

Item #	Size Ref.	d1 (k9)	l1	l2	d2	z
E2270350	350	3.5	60	12	6	4
E2270400	400	4	60	12	6	4
E2270450	450	4.5	60	15	6	4
E2270500	500	5	60	15	6	4
E2270550	550	5.5	60	15	6	4
E2270600	600	6	60	15	6	4

4 Flute Endmills – R30 N – Regular | Sutton Tools

*** Full SUTTON TOOLS range available so if you don’t see it on our website just get in touch with us!

Description

For precision finish milling applications

4 Flute Endmill R30 N
Suitable for materials up to 1000 N/mm2
TiCN for longer tool life

Additional information

Dropdown	E2270350 – 3.5 x 6, E2270400 – 4 x 6, E2270450 – 4.5 x 6, E2270500 – 5 x 6, E2270550 – 5.5 x 6, E2270600 – 6 x 6
Brand	Sutton Tools
