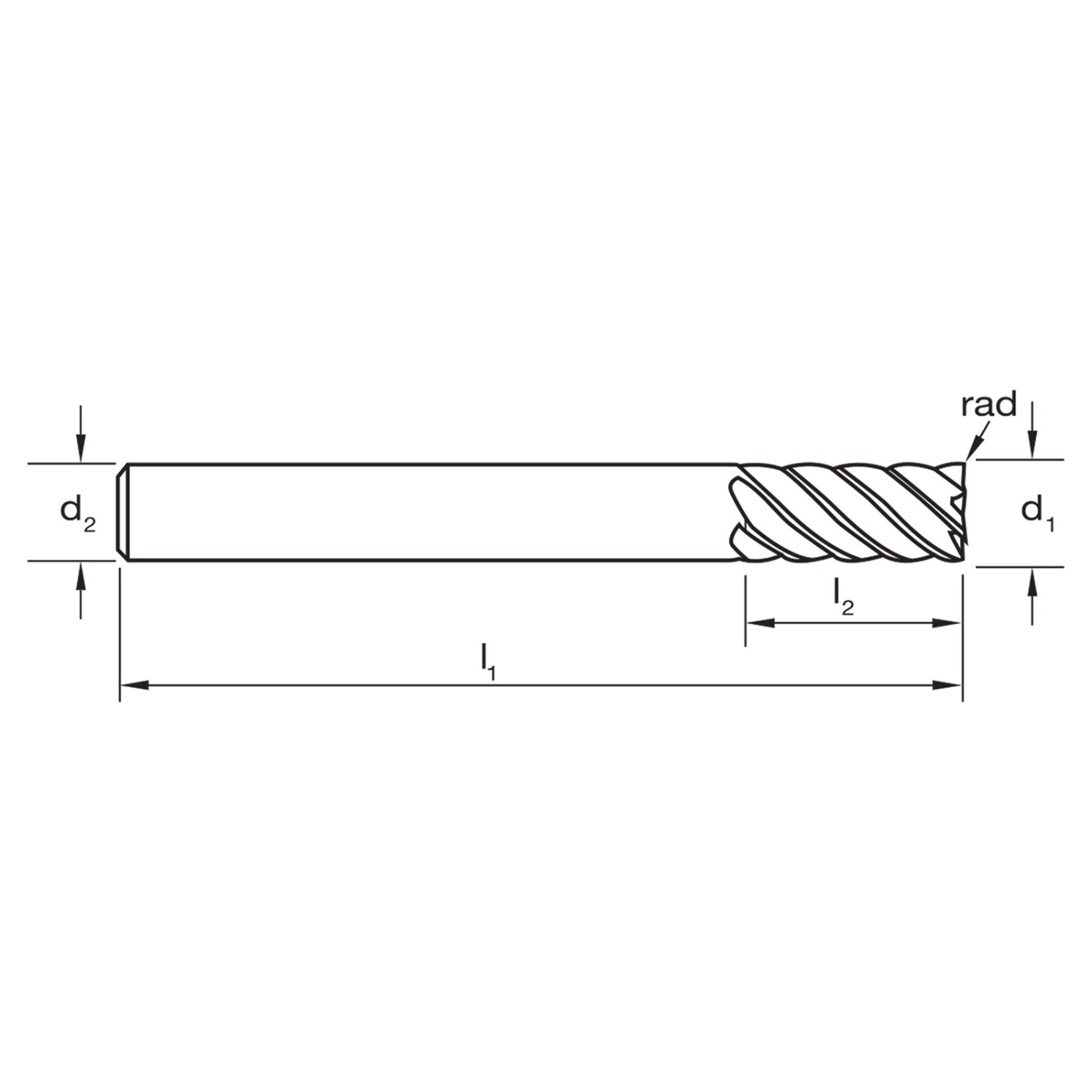

E436 Sutton Endmills 6-8 Flute R50/35 NH Long Reach – Harmony / Select - Image 2

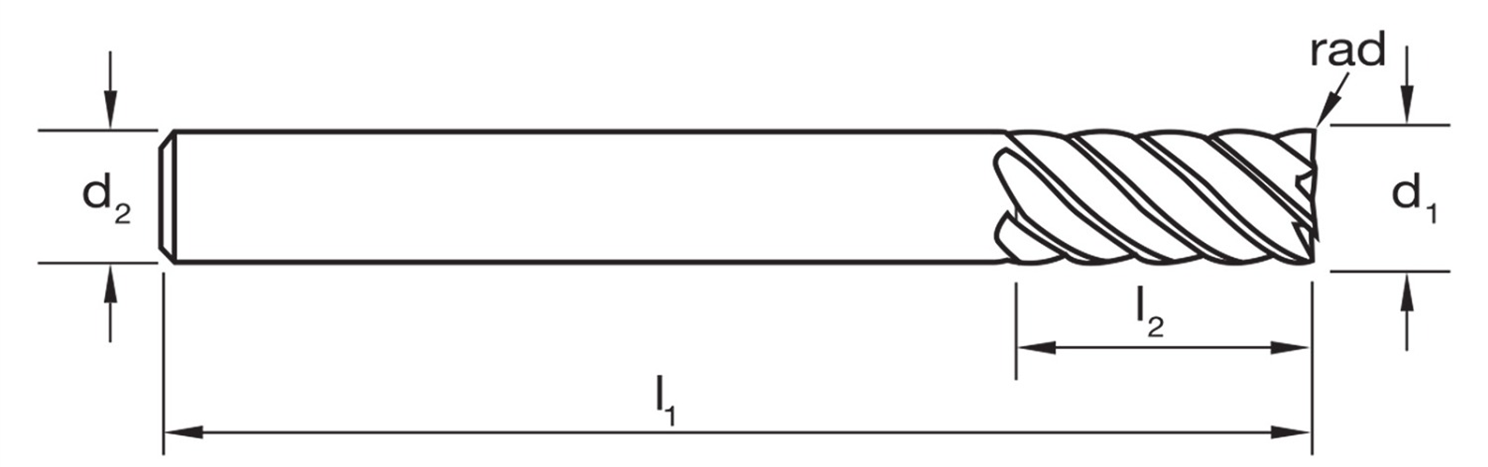

E436 Sutton Endmills 6-8 Flute R50/35 NH Long Reach – Harmony / Select - Image 3

E436 Sutton Endmills 6-8 Flute R50/35 NH Long Reach – Harmony / Select

Brand

Sutton Tools

Item #

E4836

MOQ

1

Categories

, , ,
Buy Sutton Tools Cutting Tools Australia Tool Shop Brisbane Distributor Stockist Manufacturing Speciality Mining Tradesmen Industry Trade
  • Endmill, 6-8 Flute, R50/35-NH, Long Reach, Harmony for high performance
  • For super fine finishing applications
  • 50/35° variable flute helix for chatter free milling
  • Suitable for hard, short chipping materials up to 48 HRC
  • AlCrN for longer tool life

Range:

Item # Diameter d1 (mm) Length l1 (mm) Length l2 (mm) Diameter d2 (mm) z Rad
E4360605 6.00 62 13 6 6 0.5
E4360610 6.00 62 13 6 6 1
E4360805 8.00 68 19 8 6 0.5
E4360810 8.00 68 19 8 6 1
E4361005 10.00 80 22 10 6 0.5
E4361010 10.00 80 22 10 6 1
E4361015 10.00 80 22 10 6 1.5
E4361020 10.00 80 22 10 6 2
E4361205 12.00 93 26 12 6 0.5
E4361210 12.00 93 26 12 6 1
E4361215 12.00 93 26 12 6 1.5
E4361220 12.00 93 26 12 6 2
E4361605 16.00 108 32 16 6 0.5
E4361610 16.00 108 32 16 6 1
E4361615 16.00 108 32 16 6 1.5
E4361620 16.00 108 32 16 6 2
E4362005 20.00 126 38 20 8 0.5
E4362010 20.00 126 38 20 8 1
E4362015 20.00 126 38 20 8 1.5
E4362020 20.00 126 38 20 8 2



Description

  • Endmill, 6-8 Flute, R50/35-NH, Long Reach, Harmony for high performance
  • For super fine finishing applications
  • 50/35° variable flute helix for chatter free milling
  • Suitable for hard, short chipping materials up to 48 HRC
  • AlCrN for longer tool life

Range:

Item # Diameter d1 (mm) Length l1 (mm) Length l2 (mm) Diameter d2 (mm) z Rad
E4360605 6.00 62 13 6 6 0.5
E4360610 6.00 62 13 6 6 1
E4360805 8.00 68 19 8 6 0.5
E4360810 8.00 68 19 8 6 1
E4361005 10.00 80 22 10 6 0.5
E4361010 10.00 80 22 10 6 1
E4361015 10.00 80 22 10 6 1.5
E4361020 10.00 80 22 10 6 2
E4361205 12.00 93 26 12 6 0.5
E4361210 12.00 93 26 12 6 1
E4361215 12.00 93 26 12 6 1.5
E4361220 12.00 93 26 12 6 2
E4361605 16.00 108 32 16 6 0.5
E4361610 16.00 108 32 16 6 1
E4361615 16.00 108 32 16 6 1.5
E4361620 16.00 108 32 16 6 2
E4362005 20.00 126 38 20 8 0.5
E4362010 20.00 126 38 20 8 1
E4362015 20.00 126 38 20 8 1.5
E4362020 20.00 126 38 20 8 2



Designation NH
Material VHM-ULTRA
Finish AlCrN
Shank Form HA
Helix Angle R50/35
Point Tolerance e8
Shank Tolerance h5
Point Form 45° Corner Chamfer
Standard Sutton
Rake Angle 6

6-8 Flute Endmills – R50/35 NH – Long Reach – Harmony | Sutton Tools

*** Full SUTTON TOOLS range available so if you don’t see it on our website just get in touch with us!

Description

  • Endmill, 6-8 Flute, R50/35-NH, Long Reach, Harmony for high performance
  • For super fine finishing applications
  • 50/35° variable flute helix for chatter free milling
  • Suitable for hard, short chipping materials up to 48 HRC
  • AlCrN for longer tool life

Range:

Item # Diameter d1 (mm) Length l1 (mm) Length l2 (mm) Diameter d2 (mm) z Rad
E4360605 6.00 62 13 6 6 0.5
E4360610 6.00 62 13 6 6 1
E4360805 8.00 68 19 8 6 0.5
E4360810 8.00 68 19 8 6 1
E4361005 10.00 80 22 10 6 0.5
E4361010 10.00 80 22 10 6 1
E4361015 10.00 80 22 10 6 1.5
E4361020 10.00 80 22 10 6 2
E4361205 12.00 93 26 12 6 0.5
E4361210 12.00 93 26 12 6 1
E4361215 12.00 93 26 12 6 1.5
E4361220 12.00 93 26 12 6 2
E4361605 16.00 108 32 16 6 0.5
E4361610 16.00 108 32 16 6 1
E4361615 16.00 108 32 16 6 1.5
E4361620 16.00 108 32 16 6 2
E4362005 20.00 126 38 20 8 0.5
E4362010 20.00 126 38 20 8 1
E4362015 20.00 126 38 20 8 1.5
E4362020 20.00 126 38 20 8 2



Additional information

Select

E4360605 Sutton Endmill Harmony Cutting Tip 6.00mm/Length 62mm/Rad: 0.5, E4360610 Sutton Endmill Harmony Cutting Tip 6.00mm/Length 62mm/Rad: 1, E4360805 Sutton Endmill Harmony Cutting Tip 8.00mm/Length 68mm/Rad: 0.5, E4360810 Sutton Endmill Harmony Cutting Tip 8.00mm/Length 68mm/Rad: 1, E4361005 Sutton Endmill Harmony Cutting Tip 10.00mm/Length 80mm/Rad: 0.5, E4361010 Sutton Endmill Harmony Cutting Tip 10.00mm/Length 80mm/Rad: 1, E4361015 Sutton Endmill Harmony Cutting Tip 10.00mm/Length 80mm/Rad: 1.5, E4361020 Sutton Endmill Harmony Cutting Tip 10.00mm/Length 80mm/Rad: 2, E4361205 Sutton Endmill Harmony Cutting Tip 12.00mm/Length 93mm/Rad: 0.5, E4361210 Sutton Endmill Harmony Cutting Tip 12.00mm/Length 93mm/Rad: 1, E4361215 Sutton Endmill Harmony Cutting Tip 12.00mm/Length 93mm/Rad: 1.5, E4361220 Sutton Endmill Harmony Cutting Tip 12.00mm/Length 93mm/Rad: 2, E4361605 Sutton Endmill Harmony Cutting Tip 16.00mm/Length 108mm/Rad: 0.5, E4361610 Sutton Endmill Harmony Cutting Tip 16.00mm/Length 108mm/Rad: 1, E4361615 Sutton Endmill Harmony Cutting Tip 16.00mm/Length 108mm/Rad: 1.5, E4361620 Sutton Endmill Harmony Cutting Tip 16.00mm/Length 108mm/Rad: 2, E4362005 Sutton Endmill Harmony Cutting Tip 20.00mm/Length 126mm/Rad: 0.5, E4362010 Sutton Endmill Harmony Cutting Tip 20.00mm/Length 126mm/Rad: 1, E4362015 Sutton Endmill Harmony Cutting Tip 20.00mm/Length 126mm/Rad: 1.5, E4362020 Sutton Endmill Harmony Cutting Tip 20.00mm/Length 126mm/Rad: 2
