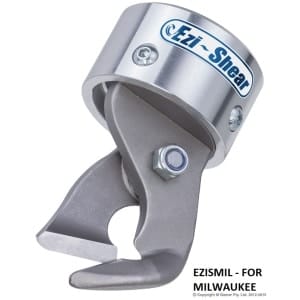

EZISMIL – Ezi-Shear for Milwaukee
SPECIFICATIONS
Input drive: Cam Shaft
Max. Speed: 2400 RPM
Cutting Capacity:
Stainless Steel: 1.2 mm (16 Gauge)
Mild Steel: 1.6 mm (14 Gauge)
Aluminium: 2.2 mm (11 Gauge)
Suitable for
Corrugated Iron & Colorbond Panels
The Ezi-Shear EZISMIL attachment will fit:
Milwaukee M18 14 Gauge Double Cut Shear (2636-20)
Milwaukee M18 18 Gauge Single Cut Shear Kit (2637-20)
Milwaukee M18 18 Gauge Double Cut Shear (2635-20) EZISHEAR EZI SHEAR
EZISDEW – Ezi-Shear for Dewalt DCS491N
Only suits Dewalt DCS491N
Input drive: Cam Shaft
Max. Speed: 2400 RPM
Cutting Capacity:
Stainless Steel: 1.2 mm
Mild Steel: 1.6 mm
Aluminium: 2.2 mm
Suitable for
Corrugated Iron & Colorbond Panels
6 month warranty on manufacturing defaults
EZIS012 Ezi-Shear 1/2″x 20tpi mount
Max Speed: 2400 RPM
Cutting Capacity:
Stainless Steel: 1.2 mm
Mild Steel: 1.6 mm
Aluminium: 2.2 mm
Suitable for Corrugated Iron & Colorbond Panels
Fits drills with Metal gearbox incorporating a 43 mm diameter (European standard) neck with at least 15 mm length and 3/8″ x 24 tpi or 1/2″ x 20 tpi threaded drive shaft
- Note:
- 3/8″ x 24 tpi drill spindle requires 1/2″ x 20 TPI Adaptor
- 1/2″ x 20 tpi drill spindle requires 4mm spacer
EZIS014H Ezi-Shear Hex Drive
Input drive: 1/4″ Hex female
Max Speed: 2400 RPM
Cutting Capacity:
Stainless Steel: 1.2 mm
Mild Steel: 1.6 mm
Aluminium: 2.2 mm
Suitable for Corrugated Iron & Colorbond Panels
The Ezi-Shear EZIS014H attachment will fit:
FESTOOL DRC 18 Cordless Drill 5.2Ah (201557)
FESTOOL PDC 18 Cordless Hammer Drill (500781)
FESTOOL DRC 18 Cordless Drill (500782)
FESTOOL DRC 18 Cordless Drill 18V (500752)
FESTOOL DR 18 QuaDrill Electric Drill 705W (768936)
Metabo Cordless (Hammer) Drill (SB18LTX BL)

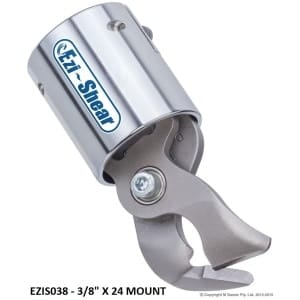

EZIS038 Ezi-Shear 3/8″x 24tpi mount
Max Speed: 2400 RPM
Cutting Capacity:
Stainless Steel: 1.2 mm
Mild Steel: 1.6 mm
Aluminium: 2.2 mm
Suitable for Corrugated Iron & Colorbond Panels
Fits drills with Metal gearbox incorporating a 43 mm diameter (European standard) neck with at least 15 mm length and 3/8″ x 24 tpi or 1/2″ x 20 tpi threaded drive shaft

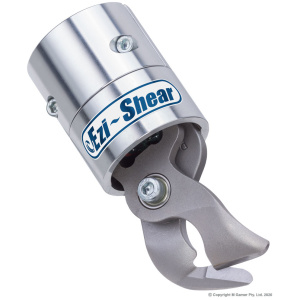

EZIS5500 Ezi-Shear Drill Head for SI5500
- Fits drills with Metal gearbox incorporating a 43 mm diameter (European standard) neck with at least 15 mm length and 3/8″ x 24 tpi or 1/2″ x 20 tpi
- threaded drive shaft
Specifications
Max Speed: 2400 RPM
Cutting Capacity:
Stainless Steel: 1.2 mm
Mild Steel: 1.6 mm
Aluminium: 2.2 mm
Suitable for Corrugated Iron & Colorbond Panels
