T394 Sutton Spiral Point Tap / Gun Tap Form B Metric / Select

Brand

Sutton Tools

Item #

T386-1

MOQ

1

Categories

, , ,
Add To Quote Request
Buy Sutton Tools Cutting Tools Australia Tool Shop Brisbane Distributor Stockist Manufacturing Speciality Mining Tradesmen Industry Trade
  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to approx. 3 x d1

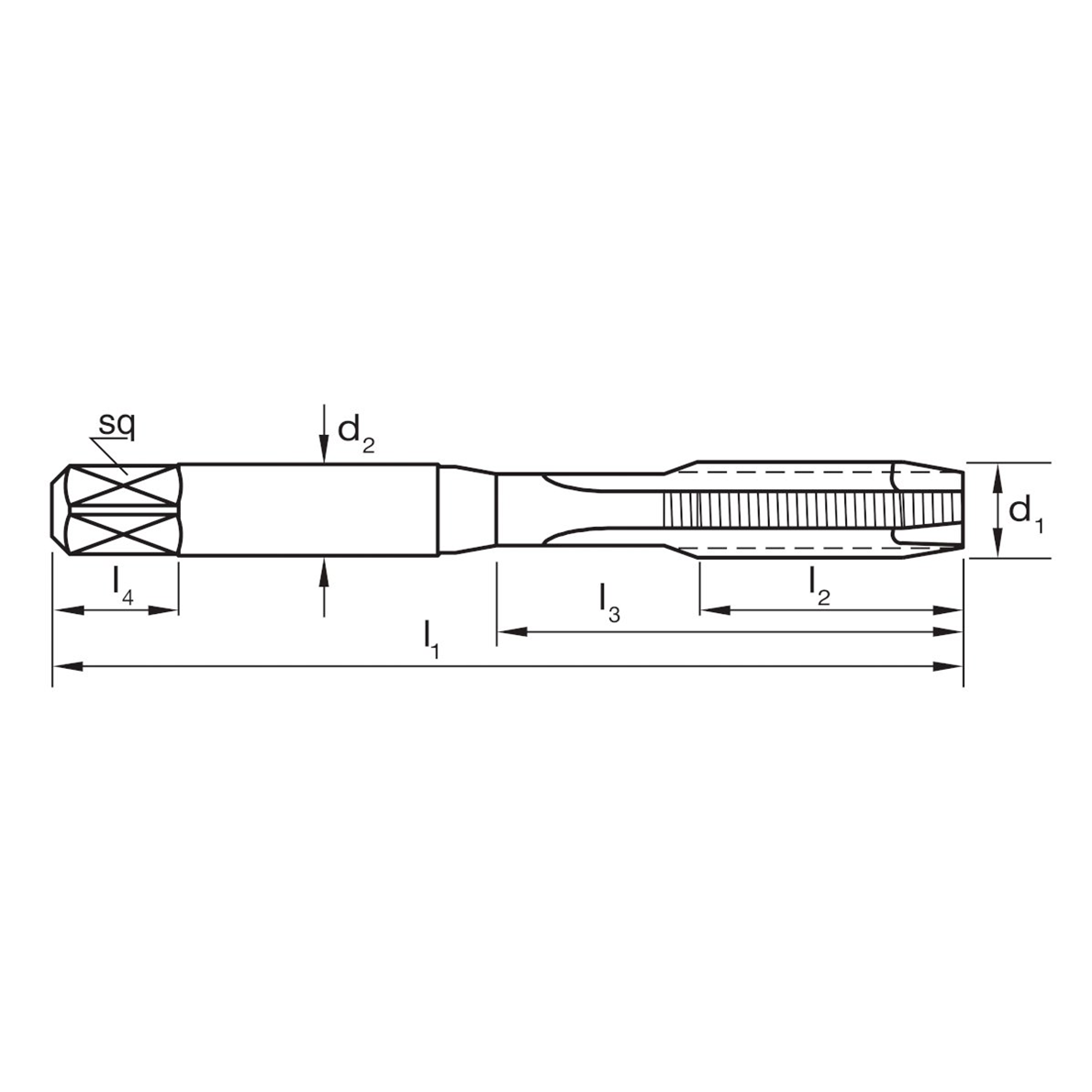

Item # Size Limit Lead Length l1 (mm) Length l2 (mm) Diameter d2 (mm) sq Length l4 (mm) z
T3940250 M2.5×0.45 ISO 2 / 6H – 45 10 2.8 2.24 5 3
T3940300 M3x0.5 ISO 2 / 6H – 48 11 3.15 2.5 5 3
T3940350 M3.5×0.6 ISO 2 / 6H – 50 13 3.55 2.8 5 3
T3940400 M4x0.7 ISO 2 / 6H – 53 13 4 3.15 6 3
T3940500 M5x0.8 ISO 2 / 6H – 58 16 5 4 7 3
T3940600 M6x1 ISO 2 / 6H – 66 19 6.3 5 8 3
T3940800 M8x1.25 ISO 2 / 6H – 72 22 8 6.3 9 3
T3941000 M10x1.5 ISO 2 / 6H – 80 24 10 8 11 3
T3941200 M12x1.75 ISO 2 / 6H – 89 29 9 7.1 10 3
T3941400 M14x2 ISO 2 / 6H – 95 30 11.2 9 12 3
T3941600 M16x2 ISO 2 / 6H – 102 32 12.5 10 13 3
T3941800 M18x2.5 ISO 2 / 6H – 112 37 14 11.2 14 4
T3942000 M20x2.5 ISO 2 / 6H – 112 37 14 11.2 14 4
T3942200 M22x2.5 ISO 2 / 6H – 118 38 16 12.5 16 4
T3942400 M24x3 ISO 2 / 6H – 130 45 18 14 18 4
T3943000 M30x3.5 ISO 2 / 6H – 138 48 20 16 20 4

Description

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to approx. 3 x d1
Item # Size Limit Lead Length l1 (mm) Length l2 (mm) Diameter d2 (mm) sq Length l4 (mm) z
T3940250 M2.5×0.45 ISO 2 / 6H – 45 10 2.8 2.24 5 3
T3940300 M3x0.5 ISO 2 / 6H – 48 11 3.15 2.5 5 3
T3940350 M3.5×0.6 ISO 2 / 6H – 50 13 3.55 2.8 5 3
T3940400 M4x0.7 ISO 2 / 6H – 53 13 4 3.15 6 3
T3940500 M5x0.8 ISO 2 / 6H – 58 16 5 4 7 3
T3940600 M6x1 ISO 2 / 6H – 66 19 6.3 5 8 3
T3940800 M8x1.25 ISO 2 / 6H – 72 22 8 6.3 9 3
T3941000 M10x1.5 ISO 2 / 6H – 80 24 10 8 11 3
T3941200 M12x1.75 ISO 2 / 6H – 89 29 9 7.1 10 3
T3941400 M14x2 ISO 2 / 6H – 95 30 11.2 9 12 3
T3941600 M16x2 ISO 2 / 6H – 102 32 12.5 10 13 3
T3941800 M18x2.5 ISO 2 / 6H – 112 37 14 11.2 14 4
T3942000 M20x2.5 ISO 2 / 6H – 112 37 14 11.2 14 4
T3942200 M22x2.5 ISO 2 / 6H – 118 38 16 12.5 16 4
T3942400 M24x3 ISO 2 / 6H – 130 45 18 14 18 4
T3943000 M30x3.5 ISO 2 / 6H – 138 48 20 16 20 4
Designation N
Material HSSE
Finish Blu
Max Cut Depth 3xD
Shank Form A
Standard ISO529
Thread Form Metric
Thread Tolerance Class 6H
Lead Form B

Spiral Point (Gun) Taps

*** Full SUTTON TOOLS range available so if you don’t see it on our website just get in touch with us!









Description

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to approx. 3 x d1
Item # Size Limit Lead Length l1 (mm) Length l2 (mm) Diameter d2 (mm) sq Length l4 (mm) z
T3940250 M2.5×0.45 ISO 2 / 6H – 45 10 2.8 2.24 5 3
T3940300 M3x0.5 ISO 2 / 6H – 48 11 3.15 2.5 5 3
T3940350 M3.5×0.6 ISO 2 / 6H – 50 13 3.55 2.8 5 3
T3940400 M4x0.7 ISO 2 / 6H – 53 13 4 3.15 6 3
T3940500 M5x0.8 ISO 2 / 6H – 58 16 5 4 7 3
T3940600 M6x1 ISO 2 / 6H – 66 19 6.3 5 8 3
T3940800 M8x1.25 ISO 2 / 6H – 72 22 8 6.3 9 3
T3941000 M10x1.5 ISO 2 / 6H – 80 24 10 8 11 3
T3941200 M12x1.75 ISO 2 / 6H – 89 29 9 7.1 10 3
T3941400 M14x2 ISO 2 / 6H – 95 30 11.2 9 12 3
T3941600 M16x2 ISO 2 / 6H – 102 32 12.5 10 13 3
T3941800 M18x2.5 ISO 2 / 6H – 112 37 14 11.2 14 4
T3942000 M20x2.5 ISO 2 / 6H – 112 37 14 11.2 14 4
T3942200 M22x2.5 ISO 2 / 6H – 118 38 16 12.5 16 4
T3942400 M24x3 ISO 2 / 6H – 130 45 18 14 18 4
T3943000 M30x3.5 ISO 2 / 6H – 138 48 20 16 20 4
