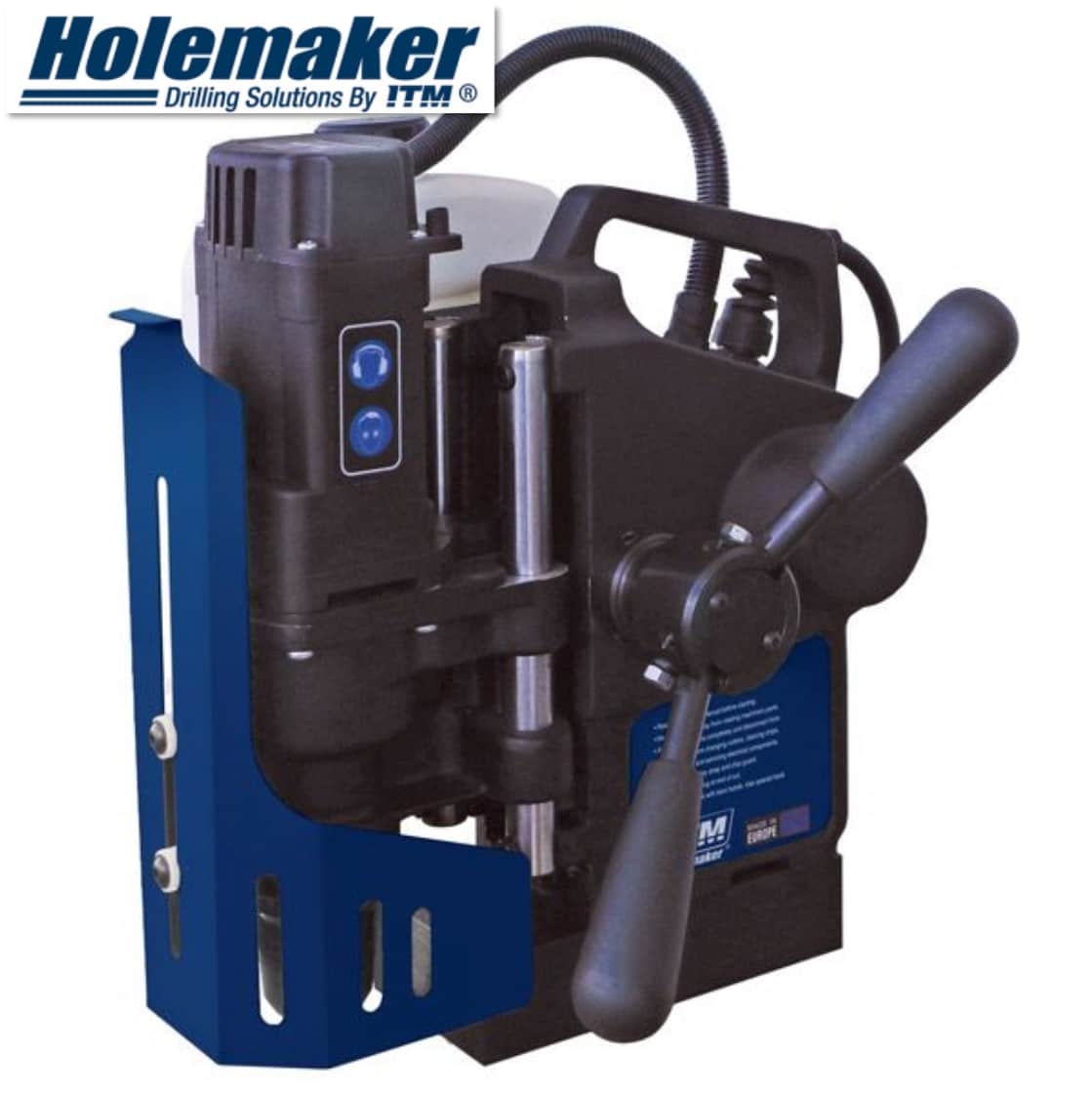

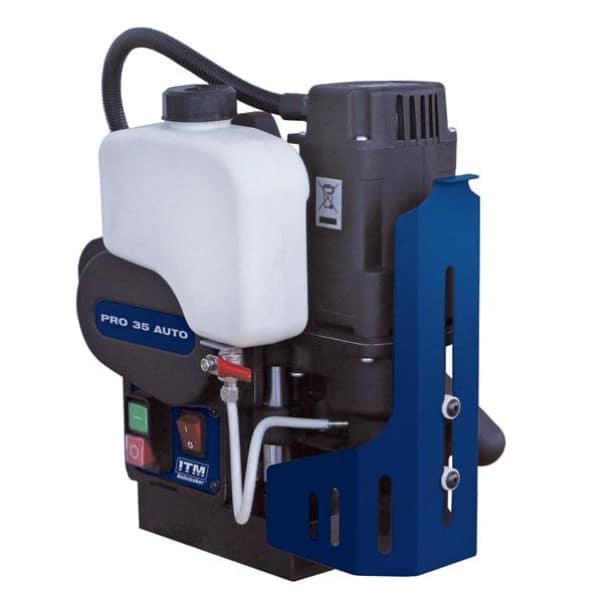

HMPRO35AUTO Holemaker PRO35 Automatic Feed Magnetic Base Drill 240V CAP: 35mm Dia x 52mm

Item #

HMPRO35AUTO

MOQ

Add to quote
Holemaker Drilling Solutions Tools Industrial Trade Manufacturing Australia

The Holemaker PRO 35 AUTO is equipped with many advanced systems & is an ideal cost saving solution for drilling a large number of holes with diameters up to 35mm and maximum depth up to 52mm.

Superior features of the Holemaker PRO 35 AUTO drilling machine include:.

  • Compact, rigid design with ultra-light weight of 13.5 kg.
  • Perfect combination of spindle speeds and torque reduces cycle times for both TCT and HSS cutters.
  • Smart control systems for excellent performance and operator’s safety.
  • Dual rail slide system ensures extraordinary rigidity and maintenance free operation.
  • Integrated cutter guard.
  • Large capacity coolant tank

Description

The Holemaker PRO 35 AUTO is equipped with many advanced systems & is an ideal cost saving solution for drilling a large number of holes with diameters up to 35mm and maximum depth up to 52mm.

Superior features of the Holemaker PRO 35 AUTO drilling machine include:.

  • Compact, rigid design with ultra-light weight of 13.5 kg.
  • Perfect combination of spindle speeds and torque reduces cycle times for both TCT and HSS cutters.
  • Smart control systems for excellent performance and operator’s safety.
  • Dual rail slide system ensures extraordinary rigidity and maintenance free operation.
  • Integrated cutter guard.
  • Large capacity coolant tank

Capacity ( Depth )  52mm
Motor Power  920 watt
Input Power  1000 watt Single Phase 240V
Speed  350rpm
Weight  13.5kg
Magnetic Dead Lift  9500Nm On 25mm Steel Plate
Stroke  70mm

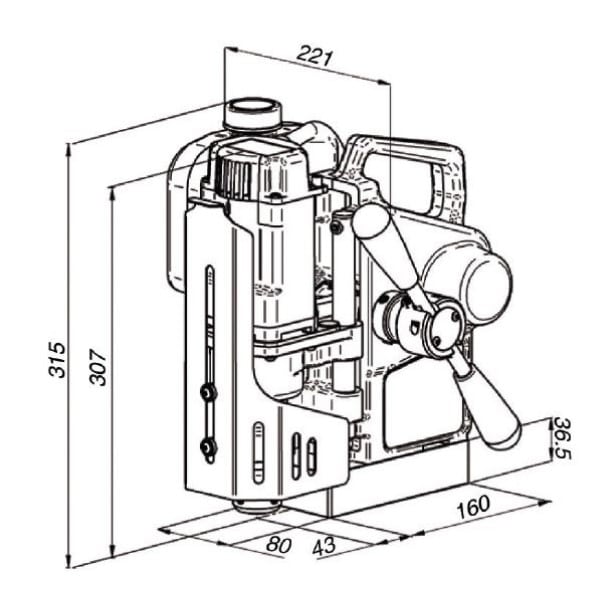

Height  306mm min / 376mm max
Through Spindle Coolant System

Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion

Supplied In Metal Carry Case With Cutter Guard & Safety Strap

HOLEMAKER PRO35 AUTOMATIC FEED MAGNETIC BASE DRILL, 240V, CAP: 35MM DIA X 52MM – HMPRO35AUTO – ITM Industrial Tool & Machinery Sales

Product Brochure

Description

The Holemaker PRO 35 AUTO is equipped with many advanced systems & is an ideal cost saving solution for drilling a large number of holes with diameters up to 35mm and maximum depth up to 52mm.

Superior features of the Holemaker PRO 35 AUTO drilling machine include:.

  • Compact, rigid design with ultra-light weight of 13.5 kg.
  • Perfect combination of spindle speeds and torque reduces cycle times for both TCT and HSS cutters.
  • Smart control systems for excellent performance and operator’s safety.
  • Dual rail slide system ensures extraordinary rigidity and maintenance free operation.
  • Integrated cutter guard.
  • Large capacity coolant tank
