Extended reach cutting
For improved visibility and accessibility when cutting in confined spaces
Extended reach gouging
For improved visibility and accessibility when gouging in confined spaces
Fine feature cutting
For narrow kerf width with minimal dross and heat affected zone
Flush cutting
For cutting closer to base materials using a 45 degree
Max control gouging
For precise metal removal, shallower gouge profiles and light metal washing
Max removal gouging
For aggressive metal removal, deep gouge profiles, and extreme metal washing
Mechanized cutting
For portable automation and table cutting
ORDERING INFORMATION – CE/CCC
(CE – For use in Europe, Australia & New Zealand – RCM, Serbia, UK – UKCA, Ukraine, and other countries where accepted. CCC – for use in China.)
Below are the standard system configurations, which include a power supply, torch or torches, work cable, 3-4 cartridges, and product information. Some configurations may include additional items such as a remote pendant and communication cables.
|
75° hand torch |
75° and 15°
hand torch |
|
180° full-length
machine torch |
180° full-length machine torch
and 75° hand torch |
| Torch lead length |
7,6 m
(25′) |
15,2 m (50′) |
7,6 m
(25′) |
|
7,6 m
(25′) |
10,7 m
(35′) |
15,2m
(50′) |
| X = With remote pendant |
|
|
|
|
X |
|
|
X |
|
| Powermax105 SYNC power supplies |
Handheld |
|
Mechanized
|
| 380-400 V CE standard power supply |
059690 |
059691 |
059692 |
|
|
|
|
|
|
| 380-400 V CE power supply with CPC port and voltage divider |
059697 |
059680 |
|
|
059694 |
059693 |
|
059695 |
059681 |
| 380-400 V CE power supply with CPC port, voltage divider, and serial port |
|
|
|
|
|
059697 |
059765 |
|
059698 |
| 230-400 V CE/CCC standard power supply |
059679 |
059680 |
|
|
|
059682 |
|
|
059683 |
| 230-400 V CE/CCC power supply with CPC port and voltage divider |
|
|
|
|
|
059682 |
|
|
059683 |
| 230-400 V CE/CCC power supply with CPC port, voltage divider, and serial port |
|
|
|
|
|
059712 |
059764 |
|
|
CUSTOM CONFIGURATIONS – CE/CCC
Select power supply, torch, work cable, cartridge, and other components.
| Power supply option |
Standard |
With CPC port and voltage divider |
With CPC port, voltage divider and serial port |
| Powermax105 SYNC 380-400 V CE/CCC |
059708 |
059709 |
059710 |
| Powermax105 SYNC 230-400 V CE/CCC |
059701 |
059702 |
059703 |
Description

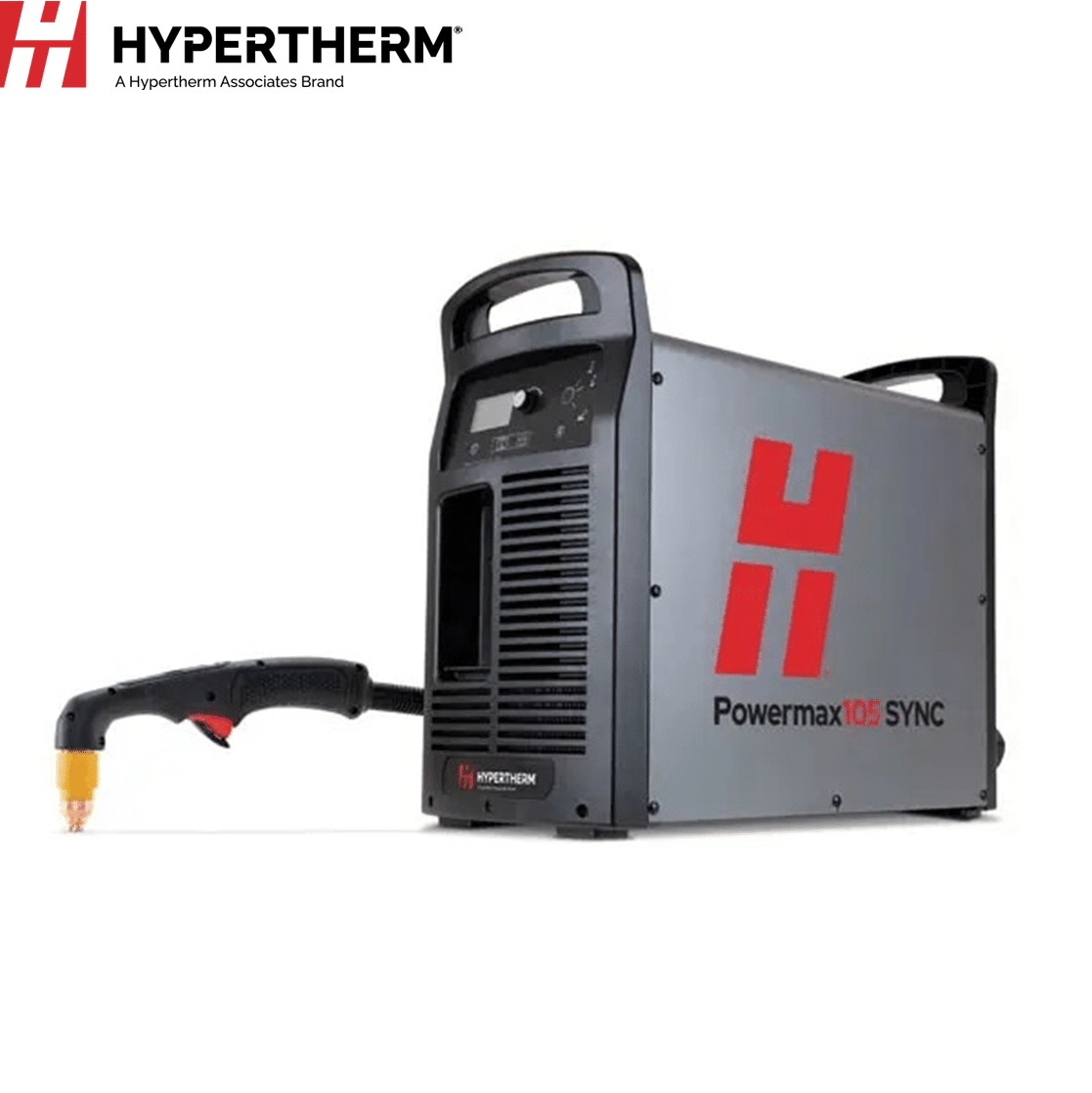

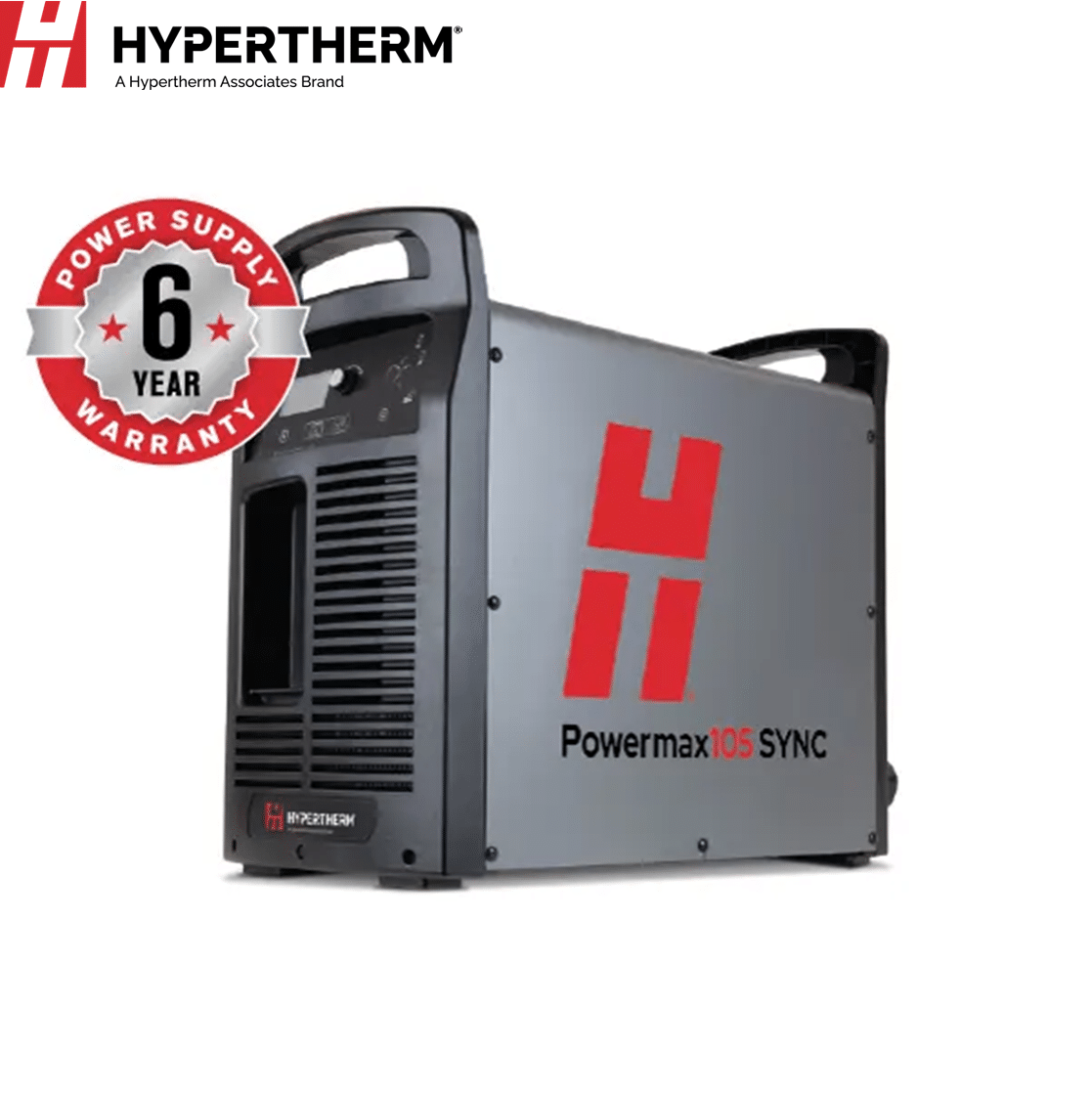

The Powermax105 SYNC® is a next-generation, professional-grade air plasma cutter that dramatically simplifies system operation for gouging and recommended cutting up to 32 mm (1-1/4″). Features automated system process set-up via advanced RFID-enabled SmartSYNC® torches, and a revolutionary single-piece cartridge that provides trackable utilization data.
The Powermax105 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance, and streamlined consumable inventory management.
Powermax105 Sync – Benefits
Easy to use
- Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups.
- RFID-enabled SmartSYNC torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors.
- End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge.
- Less operator fatigue when using hand torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.
Minimise operation costs
- Simplified system operation minimizes the time and costs spent on training and troubleshooting.
- Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts.
- Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.
Maximise performance
- Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging.
- Optimized cartridge consumable design provides up to twice the life for handheld cutting and improved quality over life in mechanized setups compared to standard consumables.
- Time-saving hand torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.
Industry-leading reliability
- SmartSYNC torches are engineered for rugged, industrial environments.
- SpringStart™ technology ensures consistent starting and a more reliable torch.
- Industry-leading reliability reduces production downtime.
Powermax105 SYNC plasma cutter and consumables | Hypertherm
Specifications
Cut and gouge capacities
| Cut capacity |
Thickness |
Cut speed |
| Recommended |
32 mm (1-1/4″) |
500 mm/min (20 ipm) |
|
38 mm (1-1/2″) |
250 mm/min (10 ipm) |
| Severance (hand cutting) |
50 mm (2″) |
125 mm/min (5 ipm) |
| Pierce* |
22 mm (7/8″) |
|
*Pierce rating for handheld use or with automatic torch height control
| Gouge capacity |
Metal removal rate |
Groove profile |
| Typical gouge |
8,6 kg (19.1 lbs.) per hour |
6,6 mm D x 6,0 mm W (0.26″ D x 0.24″ W) |
Specifications – CE/CCC
|
| Input voltages (± 10%) |
200-600 V, 3-PH, 50/60 Hz |
| Input current @ 16.8 kW |
380-400 V, 3-PH, 50/60 Hz |
| Output current |
30–105 A |
| Rated output voltage |
160 VDC |
| Duty cycle @ 40° C (104° F) |
70% @ 105 A, 240 V, 3-PH
80% @ 105 A, 400 V, 3-PH
100% @ 94 A, 400 V, 3-PH
100% @ 88 A, 230 V, 3-PH |
| Open circuit voltage (OCV) |
288 VDC |
| Weight with 7,6 m (25′) torch |
230-400 V: 42.7 kg (94 lbs.)
39.4 kg (87 lbs.) |
