ORDERING INFORMATION – CE/CCC
(CE – For use in Europe, Australia & New Zealand – RCM, Serbia, UK – UKCA, Ukraine, and other countries where accepted. CCC – for use in China.)
Below are the standard system configurations, which include a power supply, torch or torches, work cable, 1-2 cartridges, and product information.
|
75° hand torch |
75° and 15°
hand torch |
|
180° full-length
machine torch |
180° full-length machine torch
and 75° hand torch |
| Torch lead length |
6,1 m
(20′) |
15,2 m
(50′) |
6,1 m (20′)
and 7,6 m
(25′) |
|
7,6 m
(25′) |
15,2 m
(50′) |
7,6 m (25′)
and 6,1 m (20′) |
| X = With remote pendant |
|
|
|
|
|
X |
|
X |
| Powermax45 SYNC power supplies |
Handheld |
|
Mechanized |
| 400 V CE/CCC standard power supply |
088565 |
088566 |
|
|
|
|
|
|
| 400 V CE/CCC power supply with CPC port and voltage divider |
088567 |
|
|
|
088585 |
|
088586 |
|
| 230 V CE/CCC standard power supply |
088568 |
|
|
|
|
|
|
|
| 230 V CE/CCC power supply with CPC port and voltage divider |
088569 |
|
|
|
088587 |
|
|
|
CUSTOM CONFIGURATIONS – CE/CCC
Select power supply, torch, work cable, cartridge, and other components.
| Power supply option |
Standard |
With CPC port and voltage divider |
With CPC port, voltage divider and serial port |
| Powermax45 SYNC 400 V CE/CCC |
088574 |
088575 |
088576 |
| Powermax45 SYNC 230 V CE/CCC |
088577 |
088578 |
088579 |
~ AVAILABLE FOR ALL SYSTEMS ~
Torch options
View the Torches and Consumables section below for torch and cartridge options.
Cable options
|
Work cables |
Control cables |
| Cable length |
Hand clamp |
Remote pendant |
CNC, spade connector, divided voltage |
CNC, spade connector, no divided voltage |
RS-485 Serial comm, unterminated |
RS-485 Serial comm, D-sub |
| 7.6 m (25′) |
223595 |
128650 |
228350 |
023206 |
223236 |
223239 |
| 15.2 m (50′) |
223596 |
128651 |
228351 |
023279 |
223237 |
223240 |
| 22.8 m (75′) |
223127 |
128652 |
|
|
|
|
Description
For metal workers who want the most versatile system available to gouge, cut, and mark, Powermax45 SYNC delivers the best return on investment with a patented single-piece cartridge, up to 5x longer consumable life, and greater cutting power than higher-amperage competitors.
Powermax45 Sync – Benefits
Simplify operations and boost productivity
- Simplified system operation minimizes the time and costs spent on training and troubleshooting.
- Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts.
- Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.
Easy to use
- Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups.
- RFID-enabled SmartSYNC torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors.
- End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge.
- Less operator fatigue when using hand torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.
Maximize performance
- Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging.
- Optimized cartridge consumable design provides up to twice the life for handheld cutting and improved quality over life in mechanized setups compared to standard consumables.
- Time-saving hand torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.
- Industry-leading reliability
- SmartSYNC torches are engineered for rugged, industrial environments.
- SpringStart™ technology ensures consistent starting and a more reliable torch.
- Industry-leading reliability reduces production downtime.

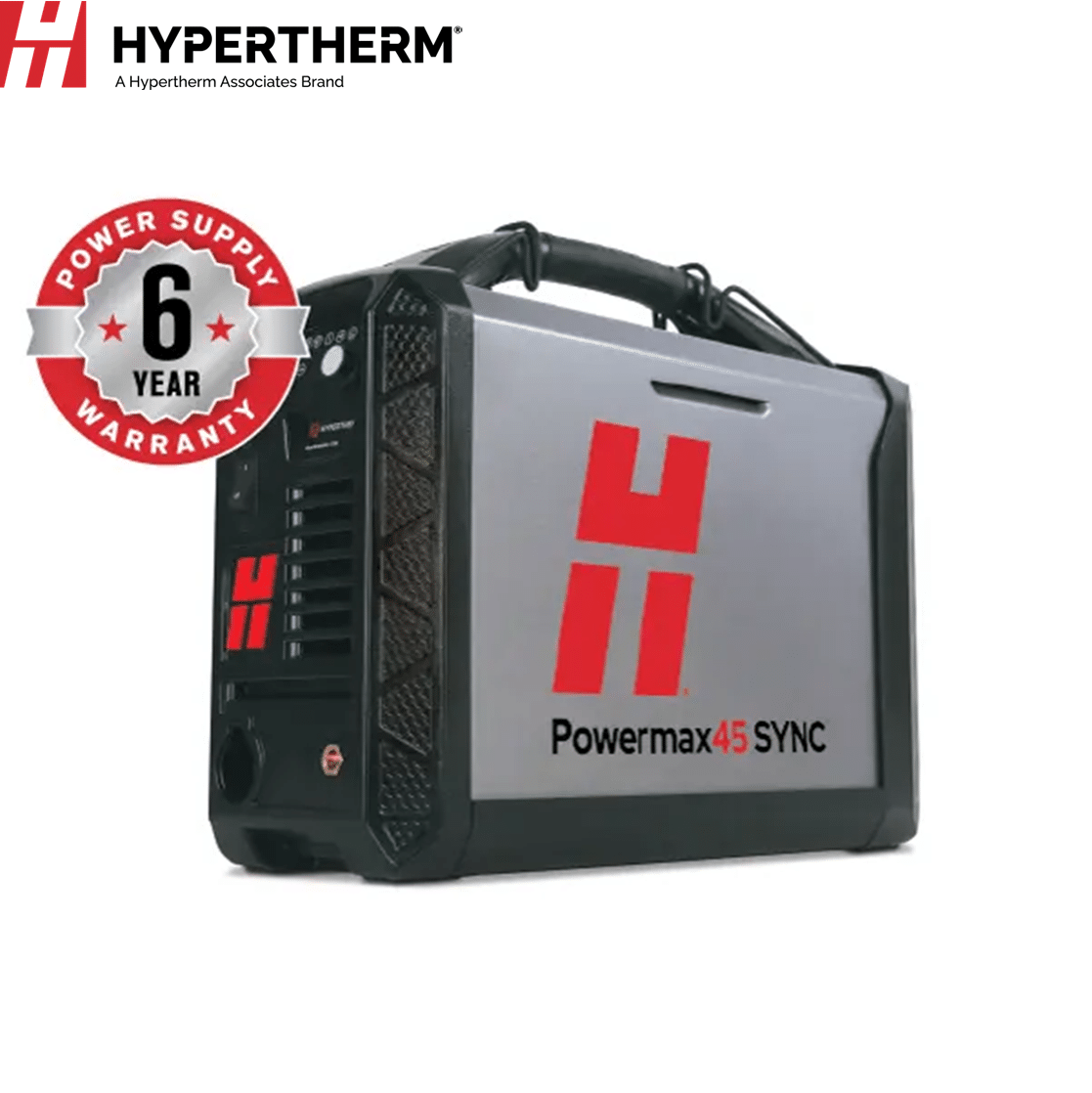

Powermax45 SYNC plasma cutter
Specifications
Cut and gouge capacities
| Capacity |
Thickness |
Cut speed |
| Recommended |
16 mm (5/8″) |
500 mm/min (20 ipm) |
| Severance (hand cutting) |
29 mm (1-1/8″) |
125 mm/min (5 ipm) |
| Pierce* |
12 mm (1/2″) |
|
*Pierce rating for handheld use or with automatic torch height control.
| Gouge capacity |
Metal removal rate |
Groove profile |
| Typical gouge |
3.4 kg (7.5 lbs.) per hour |
3,2 mm D x 6,8 mm W (0.12″ D x 0.26″ W) |
Specifications – CE/CCC
|
| Input voltages (± 10%) |
230 V, 1-PH, 50/60 Hz
400 V, 3-PH, 50/60 Hz |
| Input current @ 6.9 kW |
230 V, 1-PH, 33 A
400 V, 3-PH, 10 A |
| Output current |
9–45 A |
| Rated output voltage |
155 VDC |
| Duty cycle @ 40° C (104° F) |
50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
50% @ 45 A, 400 V, 3-PH
60% @ 41 A, 400 V, 3-PH
100% @ 32 A, 400 V, 3-PH
|
| Open circuit voltage (OCV) |
275 VDC 200-240 V
265 VDC 400 V |
| Weight with 6.1 m (20′) torch |
15 kg (33 lbs.) |
CE – for use in Europe, Australia & New Zealand – RCM, Serbia, UK – UKCA, Ukraine, and other countries where accepted. CCC – for use in China.
