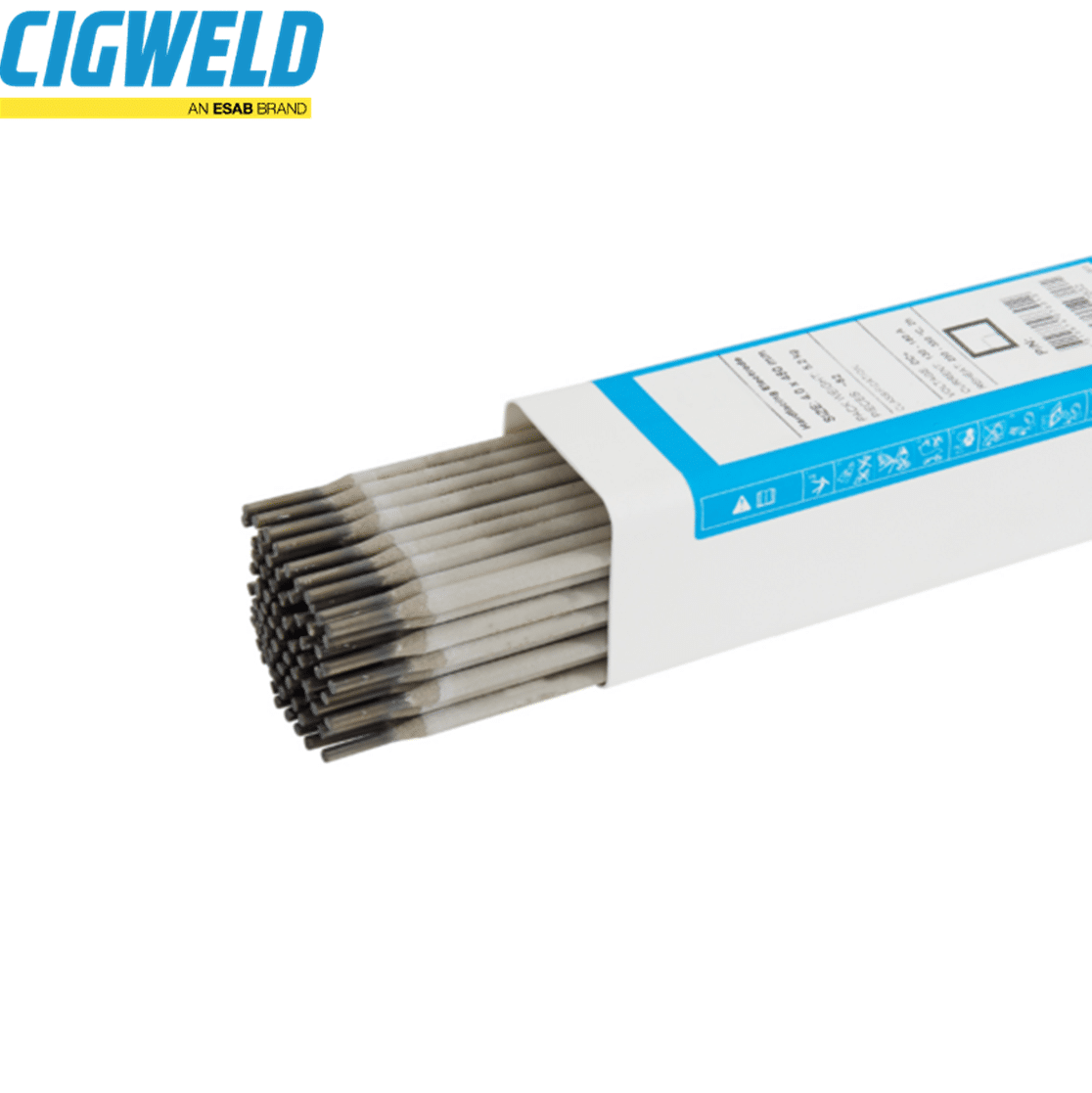

Ferrocraft 22 is a rutile type high iron powder electrode for the higher productivity fillet and butt welding of mild steel in all down hand (flat and horizontal-vertical) positions. Slag lift and “side wall” wash at weld toes are superb and welding speeds are approximately double those of conventional electrodes of equal size and length.
Packaging Data
611253N – 3.2mm – 5.8kg Pack
611254N – 4.0mm – 5.3kg Pack
611255N – 5.0mm – 5.2kg Pack
Features & Benefits
Classifcations
ISO AS/NZS 4855: E 4924 A
AWS/ASME-SFA A5.1: E7024
Applications
Suitable for ‘on site’ repair, maintenance and fabrication jobs where the iron powder addition gives improved useability
Welding Positions
All downhand positions
Typical all Weld Metal Analysis
C: 0.05%
Mn: 0.75%
Si: 0.25%
Typical all Weld Metal Mechanical Analysis
Yield Stress 440 MPa
Tensile Strength 512 MPa
Elongation 25%
CVN Impact Values 60J av @ 0°C.
