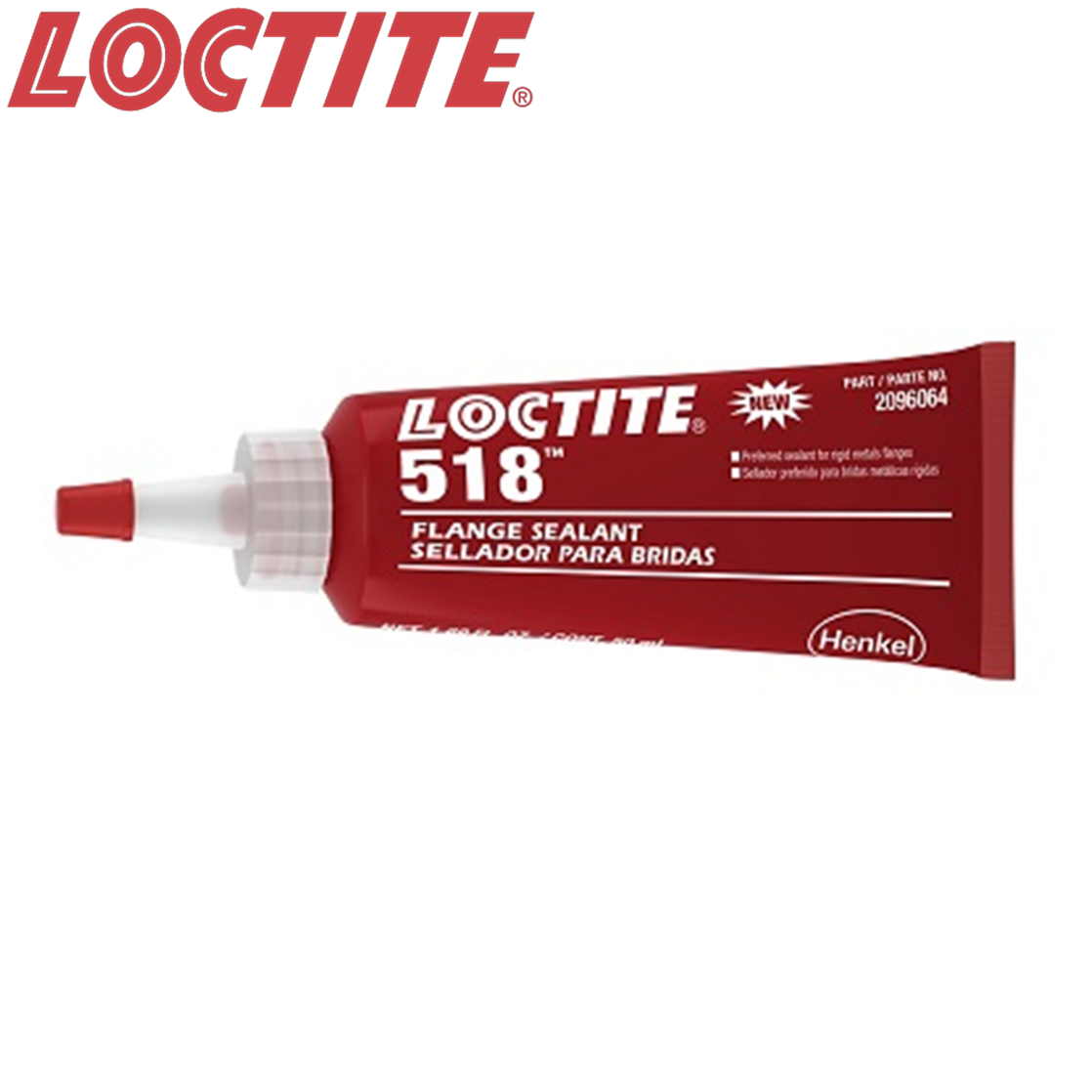

LOCTITE® 518 cures when confined in the absence of air between close-fitting metal surfaces. It is an anaerobic gasketing material designed for use on rigid iron, aluminum, and steel flanged mating surfaces. LOCTITE 518 fills gaps up to 0.25mm and forms a flexible, chemical-resistant seal that will not tear or decay. Parts disassemble easily, even after extended service. Typical applications include sealing close-fitting joints between rigid metal faces and flanges. It is also used as a formed-in-place gasket on rigid flanged connections, e.g. transmissions and motor housings.
Technical Information
| Application method | Dispense system, Manual |
| Applications | Rigid assembly gasketing, Sealing |
| Chemical basis / base | Dimethacrylate ester |
| Colour | Red |
| Cure type | Anaerobic cure |
| Fixture time, Steel | 25.0 min. |
| Gap fill, Unprimed | 0.25 mm |
| Key characteristics | Fluorescent, For machined, rigid flanges, Immediate low pressure sealing, Strength: medium strength, Surface contamination-tolerant, Thixotropic |
| Number of components | 1 part |
| Operating temperature | -55.0 – 150.0 °C (-65.0 – 300.0 °F ) |
| Physical form | Gel |
| Recommended for use with | Metal: aluminium, Metal: iron – cast iron, Metal: passive metal, Metal: steel |
| Specific gravity, @ 25.0 °C | 1.1 |
| Storage temperature | 8.0 – 21.0 °C |
| Viscosity | 750000.0 mPa·s (cP) |
LOCTITE® 518 cures when confined in the absence of air between close-fitting metal surfaces. It is an anaerobic gasketing material designed for use on rigid iron, aluminum, and steel flanged mating surfaces. LOCTITE 518 fills gaps up to 0.25mm and forms a flexible, chemical-resistant seal that will not tear or decay. Parts disassemble easily, even after extended service. Typical applications include sealing close-fitting joints between rigid metal faces and flanges. It is also used as a formed-in-place gasket on rigid flanged connections, e.g. transmissions and motor housings.
Technical Information
| Application method | Dispense system, Manual |
| Applications | Rigid assembly gasketing, Sealing |
| Chemical basis / base | Dimethacrylate ester |
| Colour | Red |
| Cure type | Anaerobic cure |
| Fixture time, Steel | 25.0 min. |
| Gap fill, Unprimed | 0.25 mm |
| Key characteristics | Fluorescent, For machined, rigid flanges, Immediate low pressure sealing, Strength: medium strength, Surface contamination-tolerant, Thixotropic |
| Number of components | 1 part |
| Operating temperature | -55.0 – 150.0 °C (-65.0 – 300.0 °F ) |
| Physical form | Gel |
| Recommended for use with | Metal: aluminium, Metal: iron – cast iron, Metal: passive metal, Metal: steel |
| Specific gravity, @ 25.0 °C | 1.1 |
| Storage temperature | 8.0 – 21.0 °C |
| Viscosity | 750000.0 mPa·s (cP) |
| Item Type | 518 GASKET ELIMINATOR® |
| Container Type | Tube / Cartridge |
| Container Size | 50ml |
| UNSPSC Code | 31401904 |
| UNSPSC Description | Anaerobic liquid gasket |
| Compound Number | 518 |
| Unit Of Measure | TUBE / CRTG |
| UoM Quantity | 50ml / 300ml |
LOCTITE® 518 cures when confined in the absence of air between close-fitting metal surfaces. It is an anaerobic gasketing material designed for use on rigid iron, aluminum, and steel flanged mating surfaces. LOCTITE 518 fills gaps up to 0.25mm and forms a flexible, chemical-resistant seal that will not tear or decay. Parts disassemble easily, even after extended service. Typical applications include sealing close-fitting joints between rigid metal faces and flanges. It is also used as a formed-in-place gasket on rigid flanged connections, e.g. transmissions and motor housings.
Technical Information
| Application method | Dispense system, Manual |
| Applications | Rigid assembly gasketing, Sealing |
| Chemical basis / base | Dimethacrylate ester |
| Colour | Red |
| Cure type | Anaerobic cure |
| Fixture time, Steel | 25.0 min. |
| Gap fill, Unprimed | 0.25 mm |
| Key characteristics | Fluorescent, For machined, rigid flanges, Immediate low pressure sealing, Strength: medium strength, Surface contamination-tolerant, Thixotropic |
| Number of components | 1 part |
| Operating temperature | -55.0 – 150.0 °C (-65.0 – 300.0 °F ) |
| Physical form | Gel |
| Recommended for use with | Metal: aluminium, Metal: iron – cast iron, Metal: passive metal, Metal: steel |
| Specific gravity, @ 25.0 °C | 1.1 |
| Storage temperature | 8.0 – 21.0 °C |
| Viscosity | 750000.0 mPa·s (cP) |
