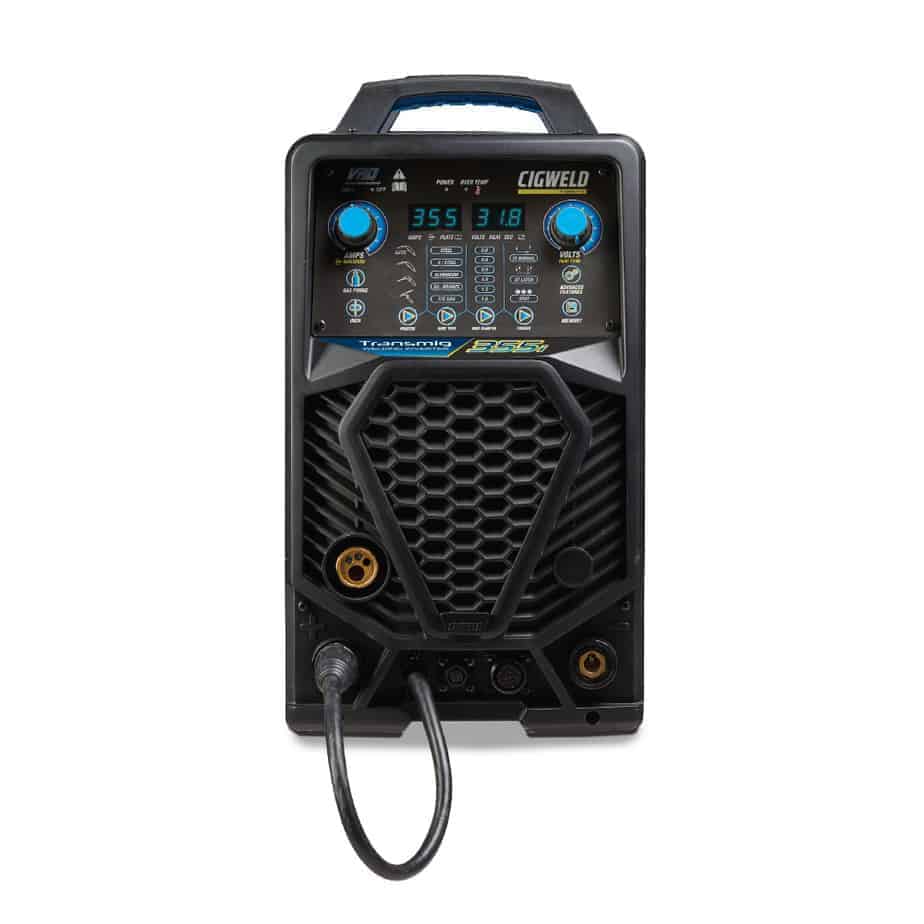

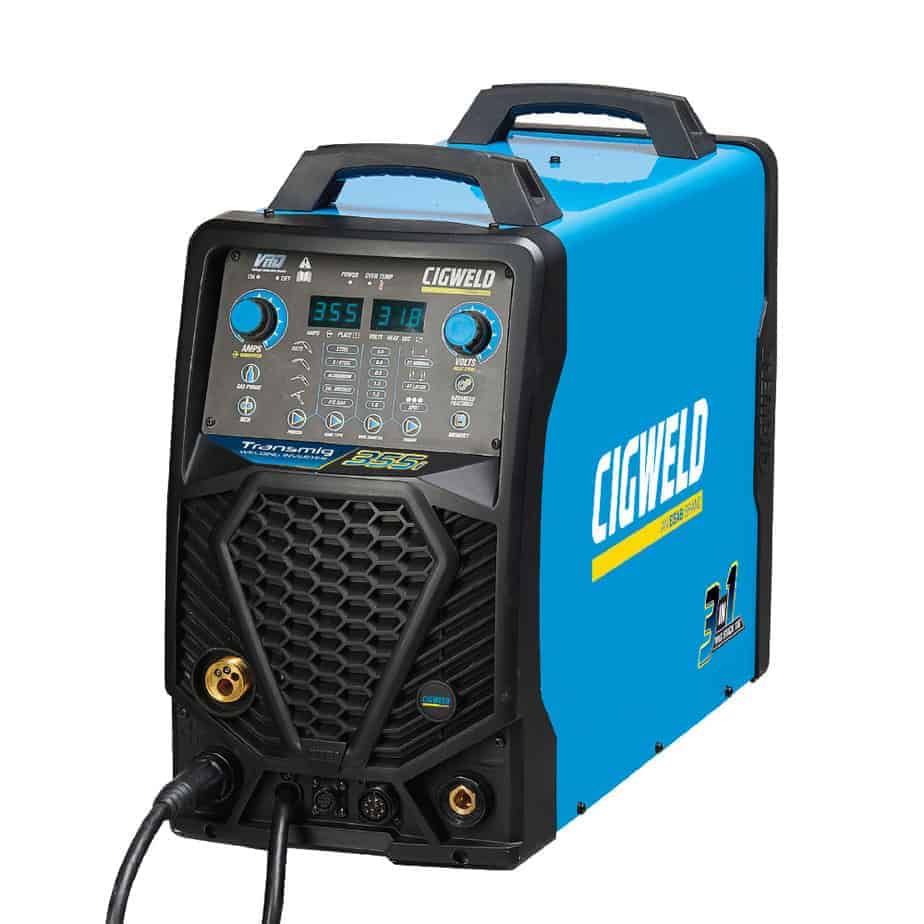

W1003511 Cigweld TransMIG 355i Plant – 3Ph, 400/415V

Brand

Cigweld Welding Equipment

Item #

W1003511

MOQ

1

Categories

, , ,
Add To Quote Request
Cigweld Welding Supplies Equipment Consumables Industrial Trade Manufacturing Australia

NB: LARGE MACHINE – DELIVERY SOUTH EAST QLD ONLY

CIGWELD’s Transmig 355i is a powerful 3phase 3in1 Multi-Process inverter that operates at 355A@60% Duty Cycle and offers exceptional welding results across MIG, STICK and TIG, and the added convenience of CIGWELD’s AUTO SET MIG feature for optimal plate thickness control.

Powerful Multi-Process Welding Performance
Delivering up to 355A @ 60% Duty Cycle, the Transmig 355i provides smooth, stable arc characteristics and consistent performance across MIG (GMAW/FCAW), STICK (MMAW), and TIG (GTAW) processes. Whether you’re welding mild steel, stainless, aluminum, or silicon bronze, it ensures superior weld quality every time
Auto Set Precision and Efficiency
CIGWELD’s AUTO SET MIG process is pre-programmed with synergic lines determined by material type, plate thickness, and consumable diameter. This feature simplifies setup, reduces guesswork, and guarantees optimal welding parameters for fast, professional results, while Heat Trim Control allows precise voltage adjustments for fine-tuning weld quality
Advanced Control and Customisation
Equipped with a range of adjustable parameters, including Burnback, Inductance, 2T/4T, Spot/Stitch Weld, Pre/Post Flow, Crater Fill, Crater Current, Crater Volts, Run-In, Creep Feed, and Down Slope, the Transmig 355i gives you full control to customise your welds for every application and material thickness
User-Friendly Design and Operation
Featuring a simple push-button interface, easy-access memory storage for up to 15 presets, and clearly labelled purge and wire-inch controls, the Transmig 355i simplifies setup and operation for all skill levels
Robust Industrial Design
Built to IP23S standards for heavy-duty fabrication, this inverter offers generator compatibility (14 kVA), a robust 4-roll wire feed system, and flexible remote or local configuration options.

The AUTO SET MIG Process has been pre-programmed with synergic lines determined by material type, plate thickness and consumable diameter reduce your setup time and ensures you are always getting the best from your welds.

The Transmig 355i has an easy-to-use push-button design, convenient memory storage, and is loaded with advanced features to ensure you can always customise your welds.
And best of all you can operate it as a compact inverter or with a remote 4RX feeder^

^Compact Plant (W1003511) or Remote Plant with Transmig 4RX wirefeeder (W1003510)

WHATS INCLUDED:

  • Transmig 355i Inverter Power Source
  • Feedroll 0.9/1.2mm V Groove (Fitted)
  • Tweco Fusion 400 Mig Torch 3.6m
  • Comet Professional Argon Regulator/Flowmeter
  • 3 Year Limited Warranty



Description

NB: LARGE MACHINE – DELIVERY SOUTH EAST QLD ONLY

CIGWELD’s Transmig 355i is a powerful 3phase 3in1 Multi-Process inverter that operates at 355A@60% Duty Cycle and offers exceptional welding results across MIG, STICK and TIG, and the added convenience of CIGWELD’s AUTO SET MIG feature for optimal plate thickness control.

Powerful Multi-Process Welding Performance
Delivering up to 355A @ 60% Duty Cycle, the Transmig 355i provides smooth, stable arc characteristics and consistent performance across MIG (GMAW/FCAW), STICK (MMAW), and TIG (GTAW) processes. Whether you’re welding mild steel, stainless, aluminum, or silicon bronze, it ensures superior weld quality every time
Auto Set Precision and Efficiency
CIGWELD’s AUTO SET MIG process is pre-programmed with synergic lines determined by material type, plate thickness, and consumable diameter. This feature simplifies setup, reduces guesswork, and guarantees optimal welding parameters for fast, professional results, while Heat Trim Control allows precise voltage adjustments for fine-tuning weld quality
Advanced Control and Customisation
Equipped with a range of adjustable parameters, including Burnback, Inductance, 2T/4T, Spot/Stitch Weld, Pre/Post Flow, Crater Fill, Crater Current, Crater Volts, Run-In, Creep Feed, and Down Slope, the Transmig 355i gives you full control to customise your welds for every application and material thickness
User-Friendly Design and Operation
Featuring a simple push-button interface, easy-access memory storage for up to 15 presets, and clearly labelled purge and wire-inch controls, the Transmig 355i simplifies setup and operation for all skill levels
Robust Industrial Design
Built to IP23S standards for heavy-duty fabrication, this inverter offers generator compatibility (14 kVA), a robust 4-roll wire feed system, and flexible remote or local configuration options.

The AUTO SET MIG Process has been pre-programmed with synergic lines determined by material type, plate thickness and consumable diameter reduce your setup time and ensures you are always getting the best from your welds.

The Transmig 355i has an easy-to-use push-button design, convenient memory storage, and is loaded with advanced features to ensure you can always customise your welds.
And best of all you can operate it as a compact inverter or with a remote 4RX feeder^

^Compact Plant (W1003511) or Remote Plant with Transmig 4RX wirefeeder (W1003510)

WHATS INCLUDED:

  • Transmig 355i Inverter Power Source
  • Feedroll 0.9/1.2mm V Groove (Fitted)
  • Tweco Fusion 400 Mig Torch 3.6m
  • Comet Professional Argon Regulator/Flowmeter
  • 3 Year Limited Warranty



Brand Cigweld Material Thickness MIG 0.6-20.0mm
Power Supply 415V Plug Type Not Fitted
Material Thickness STICK Up to 25mm Welding Process MIG, STICK, TIG
Material Thickness TIG Up to 16mm Warranty 1 Year + 6 months Extended Warranty, 3 Year + 6 months Extended Warranty
Usage Industrial, Trade Dimensions Power Source 700 x 287 x 517mm
Material Type Mild Steel, Aluminium, Bronze, Stainless Steel Pulse Capable MIG No
Additional Features Push Pull Gun Compatible, Spool Gun Compatible Pulse Capable TIG No
Pulse Capable STICK No Weight 45kg
Duty cycle 355A @ 60% Number of Phases Three Phase
Generator Requirement 14 kVA Type Compact Plant, Remote Plant
Type Remote Plant
  • Transmig 355i Inverter Power Source
  • Feedroll 0.9/1.2mm V Groove (Fitted)
  • Tweco Fusion 400 Mig Torch 3.6m
  • Comet Professional Argon Regulator
  • Flowmeter Work Clamp with 4m Lead
  • Shielding Gas Hose Assembly
  • Operation Manual

OPTIONAL ACCESSORIES:

  • Tweco Fusion 400 MIG Torch, 3.6m, Euro OTWF412X3545
  • Tweco No. 4 MIG Torch, 3.6m, Euro OTWX412/3545
  • Tweco No. 4 MIG Torch, 4.5m, Euro OTWX415/3545
  • Transmig 4RX Wirefeeder W3000410
  • 2m Interconnection Lead, 10 Pin, suits 4RX wirefeeder W4016003
  • 8m Interconnection Lead, 10 Pin, suits 4RX wirefeeder W4016002
  • 15m Interconnection Lead, 10 Pin, suits 4RX wirefeeder W4016004
  • Tweco SGT 250 Spool Gun W4011250
  • CIGWELD TBi Push-Pull Gun, 8m 185P958180
  • CIGWELD TBi Push-Pull Gun, 12m 185P9581C0
  • CIGWELD TBi Push-Pull Gun Neck, 40 degree 185P001002
  • CIGWELD TBi Synchroniser Box 590P958000
  • Twistlock Electrode Holder Lead, 400A, 5m 646779
  • TIG Torch 17V with 4m lead (200A@20%) W4013801
  • TIG Torch 17V with 4m lead and remote control (200A@20%) W4013800
  • TIG Torch 26V with 4m lead (240A@20%) W4014601
  • Transmig 355i Trolley with inbuilt cylinder carrier W4015005
  • Feed Roll 0.6/0.8mm V groove (hard) 7977729
  • Feed Roll 0.9/1.2mm V groove (hard) (fitted) 7977703
  • Feed Roll 1.2/1.6mm V groove (hard) (fitted) 7977346
  • Feed Roll 0.8/0.9mm U groove (soft) 7977733
  • Feed Roll 1.0/1.2mm U groove (soft) 7977730
  • Feed Roll 1.2/1.6mm U groove (soft) 7977348
  • Feed Roll 0.8/0.9mm V groove knurled (flux cored) 7977734
  • Feed Roll 1.2/1.6mm V groove knurled (flux cored) 7977347
  • Shielding Gas Hose Assembly W7004913
  • MIG Pliers CWPLIER

TransMIG 355i Plant – 3Ph, 400/415V – Cigweld
