4000962 Harris Ultra-High Flow Pipeline Regulator Model 3560 - Image 2
4000962 Harris Ultra-High Flow Pipeline Regulator Model 3560 - Image 3

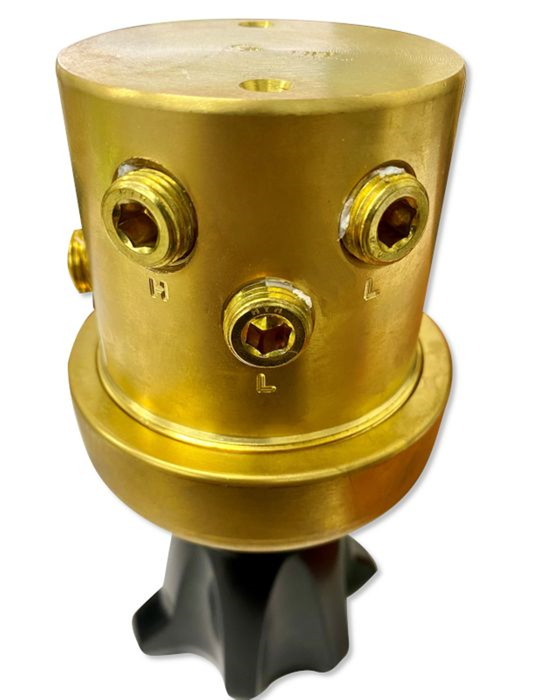

4000962 Harris Ultra-High Flow Pipeline Regulator Model 3560

Brand

Harris Gas Equipment

Item #

4000962

MOQ

1

Categories

, , ,
Add to quote
Harris Gas Equipment Stockist Dealer Supplier Australia Premium Complete Gas Kits; Torches; Tips; Nozzles; Hoses; Regulators; Cutting Guides; Gas Cutting

Model 3560-250 Ultra-High flow Pipeline Single-Stage Regulator (250PSIG)

  • Outlet Pressure: 0-250PSIG, 0-1,700kPa
  • Suitable for use with non-corrosive gases
  • Provides ultra-high flows for pipeline, manifold and bulk systems
  • Brass bar stock body and bonnet for longer service life
  • Neoprene diaphragm for improved pressure control
  • One-piece encapsulated seat design with internal filter to protect the neoprene seat from particulate contamination
  • Ergonomic ABS plastic knob for easy adjustments
  • 2.5″ brass dual scale (psi/bar) easy-to-read gauge
  • 8 ports: (2) 1/2″ NPT, (6) 1/4″ NPT
  • 1/2″ NPT (F) inlet/outlet connections
  • CGA E-4 certified
  • Rear panel mountable





Description

Model 3560-250 Ultra-High flow Pipeline Single-Stage Regulator (250PSIG)

  • Outlet Pressure: 0-250PSIG, 0-1,700kPa
  • Suitable for use with non-corrosive gases
  • Provides ultra-high flows for pipeline, manifold and bulk systems
  • Brass bar stock body and bonnet for longer service life
  • Neoprene diaphragm for improved pressure control
  • One-piece encapsulated seat design with internal filter to protect the neoprene seat from particulate contamination
  • Ergonomic ABS plastic knob for easy adjustments
  • 2.5″ brass dual scale (psi/bar) easy-to-read gauge
  • 8 ports: (2) 1/2″ NPT, (6) 1/4″ NPT
  • 1/2″ NPT (F) inlet/outlet connections
  • CGA E-4 certified
  • Rear panel mountable





*** Full HARRIS GAS EQUIPMENT range available so if you don’t see it on our website just get in touch with us!Harris Gas Equipment Stockist Dealer Supplier Australia Premium Buy For Sale Brisbane





Description

Model 3560-250 Ultra-High flow Pipeline Single-Stage Regulator (250PSIG)

  • Outlet Pressure: 0-250PSIG, 0-1,700kPa
  • Suitable for use with non-corrosive gases
  • Provides ultra-high flows for pipeline, manifold and bulk systems
  • Brass bar stock body and bonnet for longer service life
  • Neoprene diaphragm for improved pressure control
  • One-piece encapsulated seat design with internal filter to protect the neoprene seat from particulate contamination
  • Ergonomic ABS plastic knob for easy adjustments
  • 2.5″ brass dual scale (psi/bar) easy-to-read gauge
  • 8 ports: (2) 1/2″ NPT, (6) 1/4″ NPT
  • 1/2″ NPT (F) inlet/outlet connections
  • CGA E-4 certified
  • Rear panel mountable
