AC-HL100 Accud Portable Hardness Tester / Accuracy: ±6HLD/0.6HRC (HLD=800) - Image 2
AC-HL100 Accud Portable Hardness Tester / Accuracy: ±6HLD/0.6HRC (HLD=800) - Image 3

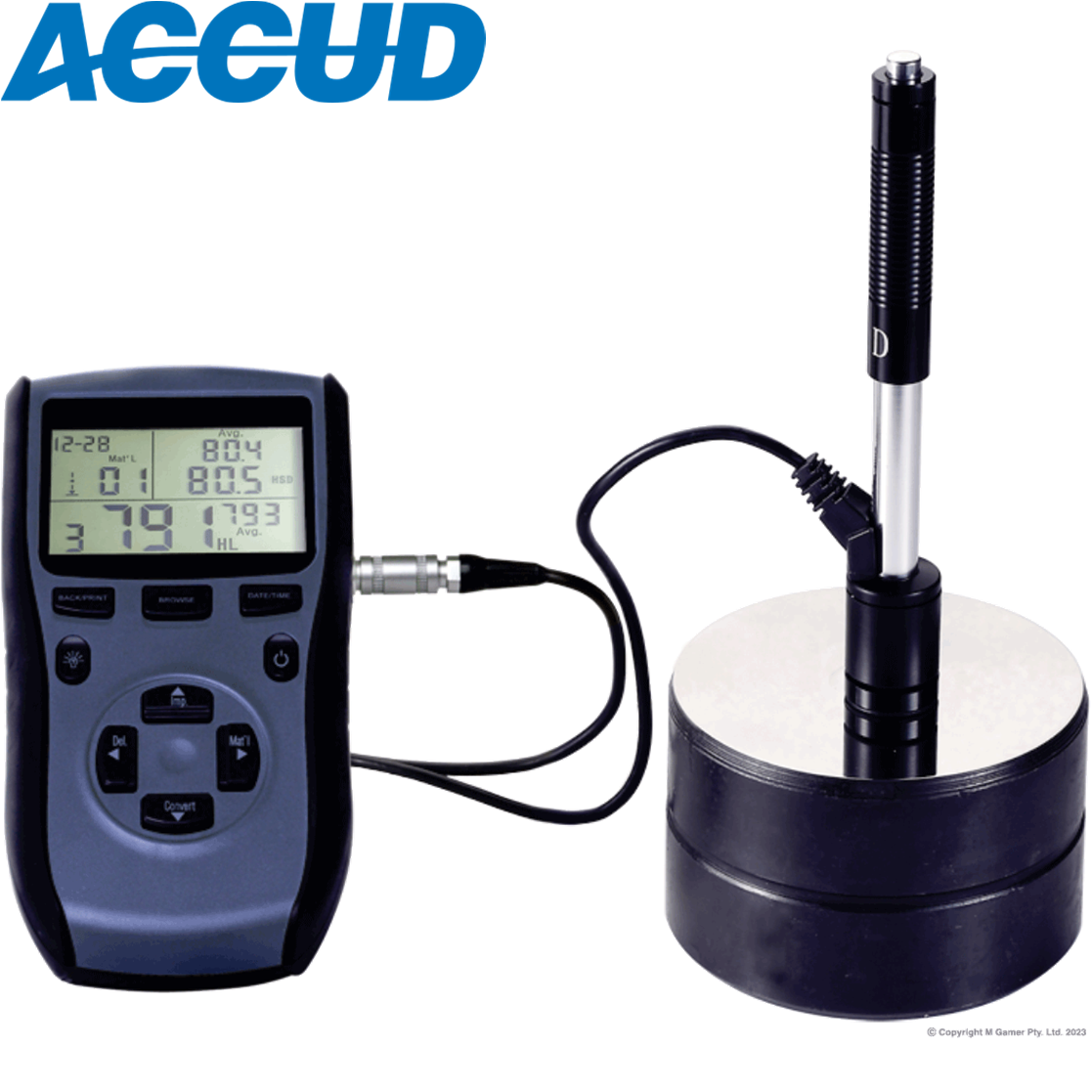

AC-HL100 Accud Portable Hardness Tester / Accuracy: ±6HLD/0.6HRC (HLD=800)

Brand

Accud Accurate Measuring Tools

Item #

AC-HL100

MOQ

1

Categories

, , ,

  • Large LCD display with backlight
  • Based on HL scale, converted to other hardness scales (HV, HB, HRC, HRB, HS) and tensile strength MPa
  • With wireless printer Can set impact direction
  • With average value calculation function Automatic power off
  • Conforms to the standard ASTMA956-02

Specifications

*** ORDER IN ITEM ***   —   Note: ETA for Order In products is between 8-12 weeks.

Part No Status Specification
AC-HL100 Order In Resolution: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa
Accuracy: ±6HLD/0.6HRC(HLD=800)
Min. workpiece weight: ＞5kg (directly)
Min. workpiece weight: ＞2kg (on solid support)
Min. workpiece weight: ＞0.1kg (coupled on large plate)
Min. workpiece thickness: ＞5mm
Min. workpiece diameter: ＞22mm
Max. workpiece surface roughness: Ra＜1.6µm
Power: 3 x AAA batteries
Dimension: 150 × 80× 24mmIncluded accessories
Main unit: 1pc

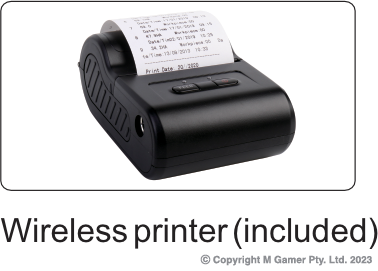

Wireless printer: 1pc
Test block: 1pc
Small support ring: 1pc
Brush: 1pc
Charger for printer: 1pc

Optional accesories

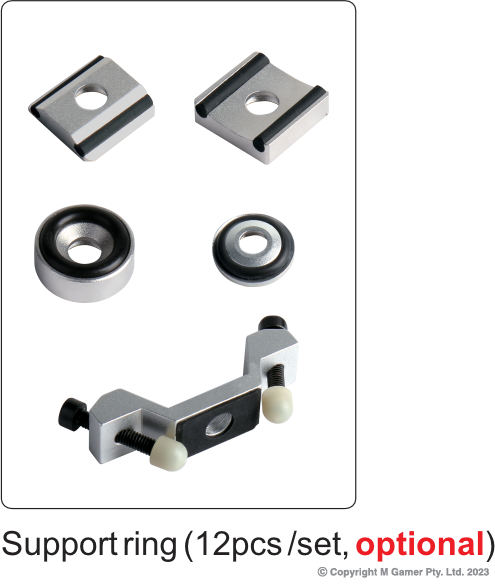

Support ring (12pcs set): AC-HL-SP



Description

  • Large LCD display with backlight
  • Based on HL scale, converted to other hardness scales (HV, HB, HRC, HRB, HS) and tensile strength MPa
  • With wireless printer Can set impact direction
  • With average value calculation function Automatic power off
  • Conforms to the standard ASTMA956-02

Specifications

*** ORDER IN ITEM ***   —   Note: ETA for Order In products is between 8-12 weeks.

Part No Status Specification
AC-HL100 Order In Resolution: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa
Accuracy: ±6HLD/0.6HRC(HLD=800)
Min. workpiece weight: ＞5kg (directly)
Min. workpiece weight: ＞2kg (on solid support)
Min. workpiece weight: ＞0.1kg (coupled on large plate)
Min. workpiece thickness: ＞5mm
Min. workpiece diameter: ＞22mm
Max. workpiece surface roughness: Ra＜1.6µm
Power: 3 x AAA batteries
Dimension: 150 × 80× 24mmIncluded accessories
Main unit: 1pc
Wireless printer: 1pc
Test block: 1pc
Small support ring: 1pc
Brush: 1pc
Charger for printer: 1pc

Optional accesories
Support ring (12pcs set): AC-HL-SP



*** Full ACCUD range available so if you don’t see it on our website just get in touch with us!Buy Accud Professional Precision Measuring & Instruments Engineers Engineering Professional Tools Equipment Australia Industrial Wholesale

Description

  • Large LCD display with backlight
  • Based on HL scale, converted to other hardness scales (HV, HB, HRC, HRB, HS) and tensile strength MPa
  • With wireless printer Can set impact direction
  • With average value calculation function Automatic power off
  • Conforms to the standard ASTMA956-02

Specifications

*** ORDER IN ITEM ***   —   Note: ETA for Order In products is between 8-12 weeks.

Part No Status Specification
AC-HL100 Order In Resolution: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa
Accuracy: ±6HLD/0.6HRC(HLD=800)
Min. workpiece weight: ＞5kg (directly)
Min. workpiece weight: ＞2kg (on solid support)
Min. workpiece weight: ＞0.1kg (coupled on large plate)
Min. workpiece thickness: ＞5mm
Min. workpiece diameter: ＞22mm
Max. workpiece surface roughness: Ra＜1.6µm
Power: 3 x AAA batteries
Dimension: 150 × 80× 24mmIncluded accessories
Main unit: 1pc
Wireless printer: 1pc
Test block: 1pc
Small support ring: 1pc
Brush: 1pc
Charger for printer: 1pc

Optional accesories
Support ring (12pcs set): AC-HL-SP
