AC-HL200 Accud Portable Hardness Tester Touch Screen / Accuracy: ±6HLD/0.6HRC (HLD=800) - Image 2
AC-HL200 Accud Portable Hardness Tester Touch Screen / Accuracy: ±6HLD/0.6HRC (HLD=800) - Image 3
AC-HL200 Accud Portable Hardness Tester Touch Screen / Accuracy: ±6HLD/0.6HRC (HLD=800) - Image 4

AC-HL200 Accud Portable Hardness Tester Touch Screen / Accuracy: ±6HLD/0.6HRC (HLD=800)

Brand

Accud Accurate Measuring Tools

Item #

AC-HL1200

MOQ

1

Categories

, , ,

  • Touch screen, with backlight
  • Based on HL scale, converted to other hardness scales (HV, HB, HRC, HRB, HS) and tensile strength Mpa
  • With wireless printer Can set impact direction Memory:500
  • Low and high limits with judgement
  • Automatic power off
  • Conforms to the standard ASTMA956-02
  • Specifications

*** ORDER IN ITEM ***   —   Note: ETA for Order In products is between 8-12 weeks.

Part No Status Specification
AC-HL200 Order In Resolution: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa
Accuracy: ±6HLD/0.6HRC(HLD=800)
Min. workpiece weight: ＞5kg (directly)
Min. workpiece weight: ＞2kg (on solid support)
Min. workpiece weight: ＞0.1kg (coupled on large plate)
Min. workpiece thickness: ＞5mm
Min. workpiece diameter: ＞22mm
Max. workpiece surface roughness: Ra＜1.6µm
Power: Rechargeable battery
Dimension: 135×83×24mm

Included accessories
Main unit: 1pc
Wireless printer: 1pc
Test block: 1pc
Small support ring & brush: 1pc
Charger for printer: 1pc

Optional accessories

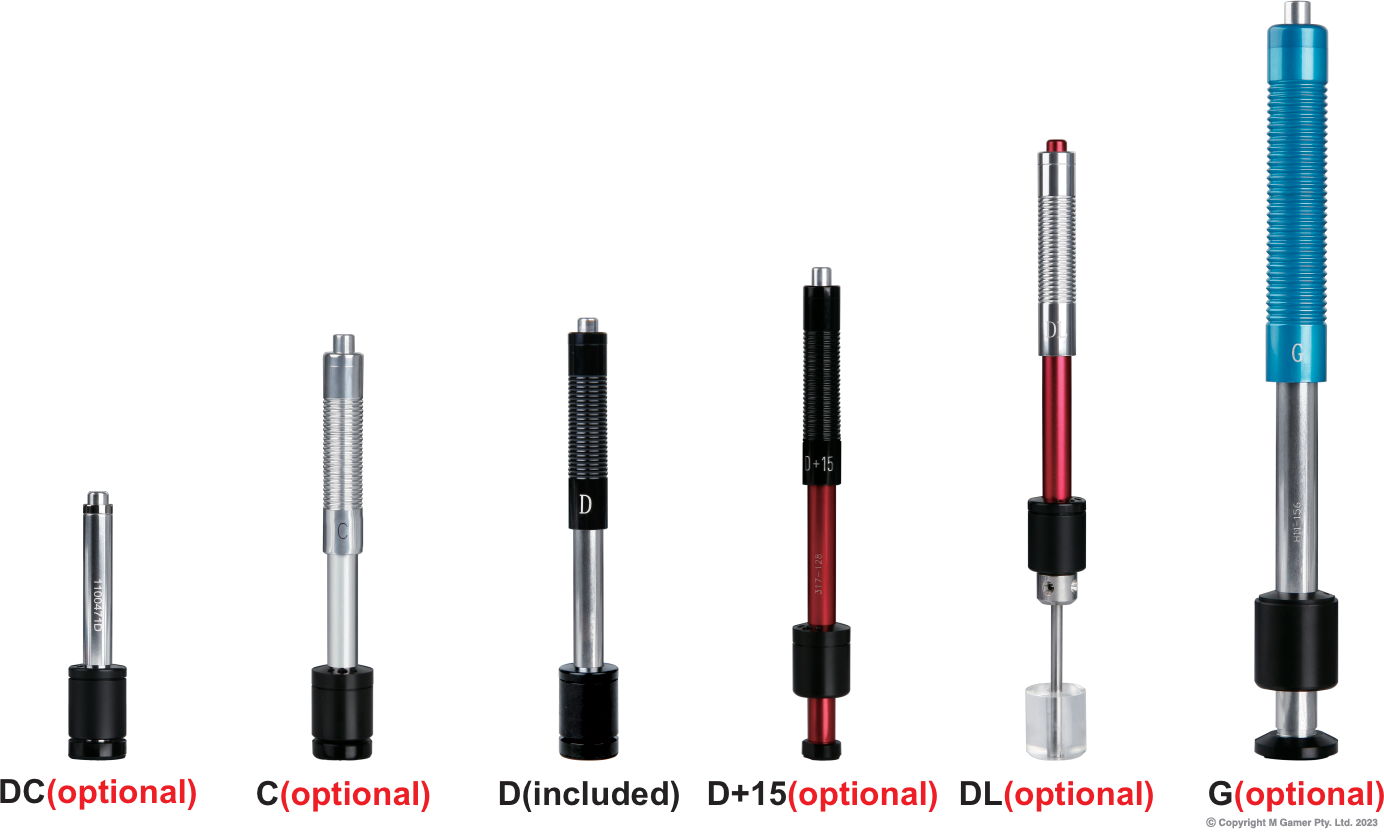

Impact device DC: HL200-DC
Impact device C: HL200-C
Impact device D+15: HL200-D15
Impact device DL: HL200-DL
Impact device G: HL200-G

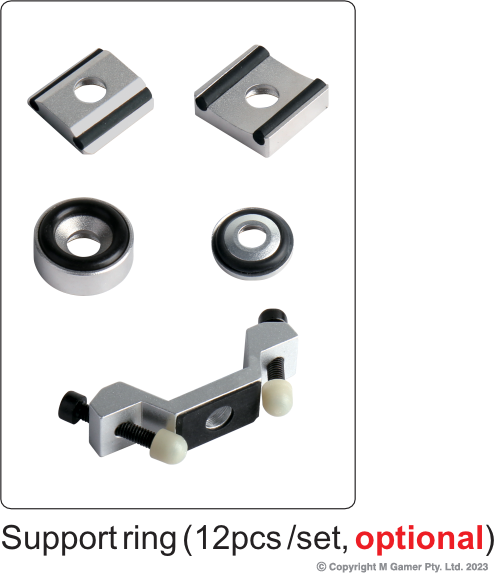

Support ring (12pcs set): HL-SP

Description

  • Touch screen, with backlight
  • Based on HL scale, converted to other hardness scales (HV, HB, HRC, HRB, HS) and tensile strength Mpa
  • With wireless printer Can set impact direction Memory:500
  • Low and high limits with judgement
  • Automatic power off
  • Conforms to the standard ASTMA956-02
  • Specifications

*** ORDER IN ITEM ***   —   Note: ETA for Order In products is between 8-12 weeks.

Part No Status Specification
AC-HL200 Order In Resolution: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa
Accuracy: ±6HLD/0.6HRC(HLD=800)
Min. workpiece weight: ＞5kg (directly)
Min. workpiece weight: ＞2kg (on solid support)
Min. workpiece weight: ＞0.1kg (coupled on large plate)
Min. workpiece thickness: ＞5mm
Min. workpiece diameter: ＞22mm
Max. workpiece surface roughness: Ra＜1.6µm
Power: Rechargeable battery
Dimension: 135×83×24mm

Included accessories
Main unit: 1pc
Wireless printer: 1pc
Test block: 1pc
Small support ring & brush: 1pc
Charger for printer: 1pc

Optional accessories
Impact device DC: HL200-DC
Impact device C: HL200-C
Impact device D+15: HL200-D15
Impact device DL: HL200-DL
Impact device G: HL200-G
Support ring (12pcs set): HL-SP

*** Full ACCUD range available so if you don’t see it on our website just get in touch with us!Buy Accud Professional Precision Measuring & Instruments Engineers Engineering Professional Tools Equipment Australia Industrial Wholesale

Description

  • Touch screen, with backlight
  • Based on HL scale, converted to other hardness scales (HV, HB, HRC, HRB, HS) and tensile strength Mpa
  • With wireless printer Can set impact direction Memory:500
  • Low and high limits with judgement
  • Automatic power off
  • Conforms to the standard ASTMA956-02
  • Specifications

*** ORDER IN ITEM ***   —   Note: ETA for Order In products is between 8-12 weeks.

Part No Status Specification
AC-HL200 Order In Resolution: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa
Accuracy: ±6HLD/0.6HRC(HLD=800)
Min. workpiece weight: ＞5kg (directly)
Min. workpiece weight: ＞2kg (on solid support)
Min. workpiece weight: ＞0.1kg (coupled on large plate)
Min. workpiece thickness: ＞5mm
Min. workpiece diameter: ＞22mm
Max. workpiece surface roughness: Ra＜1.6µm
Power: Rechargeable battery
Dimension: 135×83×24mm

Included accessories
Main unit: 1pc
Wireless printer: 1pc
Test block: 1pc
Small support ring & brush: 1pc
Charger for printer: 1pc

Optional accessories
Impact device DC: HL200-DC
Impact device C: HL200-C
Impact device D+15: HL200-D15
Impact device DL: HL200-DL
Impact device G: HL200-G
Support ring (12pcs set): HL-SP
