Unimig Razor SWF 350 Welder U11213

Brand

Unimig Welding Supplies

Item #

U11213

MOQ

1

Categories

, , ,
Add to quote
NB: LARGE MACHINE – DELIVERY SOUTH EAST QLD ONLY

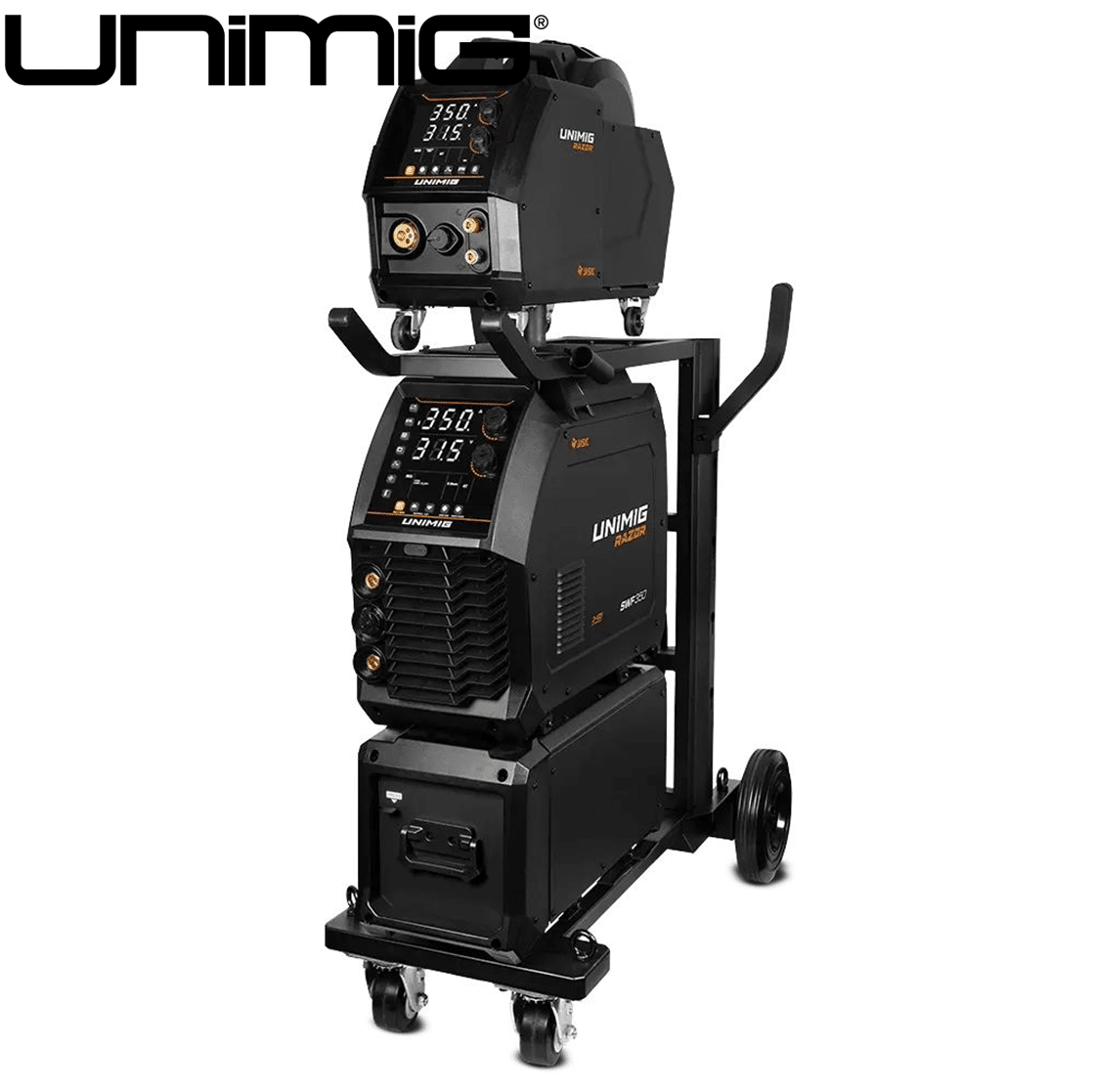

Take control of heavy-duty workshop fabrication with the UNIMIG RAZOR SWF 350 Welder. Engineered for industrial environments, this high-performance 415V three-phase powerhouse delivers a massive 350A output across MIG, TIG, and STICK welding configurations.
Equipped with a separate wire feeder offering up to 10 metres of workplace manoeuvrability, a premium 4-geared wire drive system, and next-generation Smart-Set MIG synergic programming, the UNIMIG RAZOR SWF 350 guarantees premium weld quality under the most challenging commercial conditions.
Key features:
  • A separate wire feeder gives extra manoeuvrability
  • Push-Pull gun ready for heavy-duty welding
  • 4 geared wire drive system for the smoothest wire feeding experience
In the box:
  • RAZOR SWF 350 Welder
  • 3m M350 Digital MIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 500A Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 1.8m Quick-Connect Gas Hose
  • Operating Manual
  • 2 x 0.8-0.9mm V Groove Rollers
  • 2 x 1.0-1.2mm V Groove Rollers
  • 2 x 0.8-0.9mm F Groove Rollers
  • 2 x 1.0-1.2mm F Groove Rollers
  • 4 x 1.0-1.2mm U Groove Rollers

DETAILED PRODUCT INFORMATION LINK > RAZOR SWF 350 Welder

Machine Specifications
Primary Input Voltage 415V Three-Phase
Supply Plug Unplugged (32A Recommended)
Ieff (A) 13.9
Imax (A) 25.0
Open Circuit Voltage (OCV) 75.0
Open Circuit Voltage with VRD Active (V) 13.0
Protection Class IP23S
Insulation Class H
Minimum Generator (kVA) 23.0
Dinse Connector 35/50
Standard AS 60974.1
Warranty 5 Years
Weight (kg) 88.41
Dimensions (LxWxH) 1520 x 520 x 980mm

MIG Specifications
MIG Current Range 30-350A
MIG Duty Cycle @ 40°C 50% @ 350A
60% @ 319A 100% @ 247A
MIG Wire Sizes 0.6-1.2mm
MIG Wire Spool Sizes 5kg (D200)
15kg (D300)
MIG Welding Thickness Range 1-16mm
Drive Roller Size 37/24

TIG Specifications
TIG Ignition Type DC Lift Arc
TIG Current Range 20-350A
TIG Duty Cycle @ 40°C 50% @ 350A
60% @ 319A
100% @ 247A
TIG Welding Thickness Range 1-10mm

MMA Specifications
MMA Current Range 20-350A
MMA Duty Cycle @ 40°C 50% @ 350A
60% @ 319A
100% @ 247A
MMA Electrode Range 2.5-4.0mm
MMA Welding Thickness Range 2-16mm
