AC-SR200 Accud Roughness Tester / Range: 160µm

Brand

Accud Accurate Measuring Tools

Item #

AC-SR200

MOQ

1

Categories

, ,
Add to quote

  • 13 roughness parameters
  • With probe position indicator
  • Connected with printer via bluetooth
  • Roughness values, profile, and curve can be shown on the display
  • Memory of maximum 100 results
  • With a mini SD card slot, can save the result into SD card
  • Automatic power off

Specifications

Part No Specification
AC-SR200 Parameters: Ra, Rz, Ry,Rq, Rp, Rm, Rt, R3z, Rmax, Sk, S, Sm, tp
Range: 160µm
Accuracy: ±10%
Resolution (Ra): 0.001µm
Probe- type: inductive
Probe- stylus radius/angle: 5µm/90°
Probe- stylus material: diamond
Measuring force: 0.4mN
Measuring unit: µm/µin
Cut off: 0.25/0.8/2.5mm
Number of cut-offs: 1 -5
Traverse speed: 0.5mm/s, 1mm/s
Memory: 100 measurement results
Output: USB
Power: built-in rechargeble battery
Dimension(L×W×H): 140×52×48mm
Weight: 440gINCLUDED ACCESSORIES
Main unit: 1pc
Standard probe: 1pc
Calibration block: 1pc
Calibration support: 1pc
Adjustable stand: 1pc
Probe cover: 1pc
USB cable and software: 1pc
AC/DC adapter: 1pc
Software: 1pc

Optional Accessories
Extension rod: SR200-ER
Curved surface probe: SR200-02
Groove probe: SR200-03
Deep groove probe: SR200-04

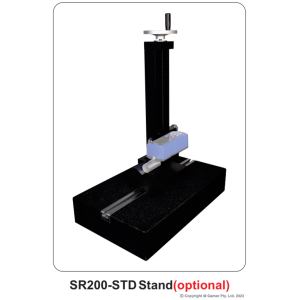

Test stand: SR200-STD
Printer: SR200-PR

Description

  • 13 roughness parameters
  • With probe position indicator
  • Connected with printer via bluetooth
  • Roughness values, profile, and curve can be shown on the display
  • Memory of maximum 100 results
  • With a mini SD card slot, can save the result into SD card
  • Automatic power off

Specifications

Part No Specification
AC-SR200 Parameters: Ra, Rz, Ry,Rq, Rp, Rm, Rt, R3z, Rmax, Sk, S, Sm, tp
Range: 160µm
Accuracy: ±10%
Resolution (Ra): 0.001µm
Probe- type: inductive
Probe- stylus radius/angle: 5µm/90°
Probe- stylus material: diamond
Measuring force: 0.4mN
Measuring unit: µm/µin
Cut off: 0.25/0.8/2.5mm
Number of cut-offs: 1 -5
Traverse speed: 0.5mm/s, 1mm/s
Memory: 100 measurement results
Output: USB
Power: built-in rechargeble battery
Dimension(L×W×H): 140×52×48mm
Weight: 440gINCLUDED ACCESSORIES
Main unit: 1pc
Standard probe: 1pc
Calibration block: 1pc
Calibration support: 1pc
Adjustable stand: 1pc
Probe cover: 1pc
USB cable and software: 1pc
AC/DC adapter: 1pc
Software: 1pc

Optional Accessories
Extension rod: SR200-ER
Curved surface probe: SR200-02
Groove probe: SR200-03
Deep groove probe: SR200-04
Test stand: SR200-STD
Printer: SR200-PR

*** Full ACCUD range available so if you don’t see it on our website just get in touch with us!Buy Accud Professional Precision Measuring & Instruments Engineers Engineering Professional Tools Equipment Australia Industrial Wholesale

Description

  • 13 roughness parameters
  • With probe position indicator
  • Connected with printer via bluetooth
  • Roughness values, profile, and curve can be shown on the display
  • Memory of maximum 100 results
  • With a mini SD card slot, can save the result into SD card
  • Automatic power off

Specifications

Part No Specification
AC-SR200 Parameters: Ra, Rz, Ry,Rq, Rp, Rm, Rt, R3z, Rmax, Sk, S, Sm, tp
Range: 160µm
Accuracy: ±10%
Resolution (Ra): 0.001µm
Probe- type: inductive
Probe- stylus radius/angle: 5µm/90°
Probe- stylus material: diamond
Measuring force: 0.4mN
Measuring unit: µm/µin
Cut off: 0.25/0.8/2.5mm
Number of cut-offs: 1 -5
Traverse speed: 0.5mm/s, 1mm/s
Memory: 100 measurement results
Output: USB
Power: built-in rechargeble battery
Dimension(L×W×H): 140×52×48mm
Weight: 440gINCLUDED ACCESSORIES
Main unit: 1pc
Standard probe: 1pc
Calibration block: 1pc
Calibration support: 1pc
Adjustable stand: 1pc
Probe cover: 1pc
USB cable and software: 1pc
AC/DC adapter: 1pc
Software: 1pc

Optional Accessories
Extension rod: SR200-ER
Curved surface probe: SR200-02
Groove probe: SR200-03
Deep groove probe: SR200-04
Test stand: SR200-STD
Printer: SR200-PR

Additional information

Brand

Select

AC-SR200 Accud Roughness Tester, AC-SR200-STD – Stand Only
