Exclusive to the Student Powered Air Program

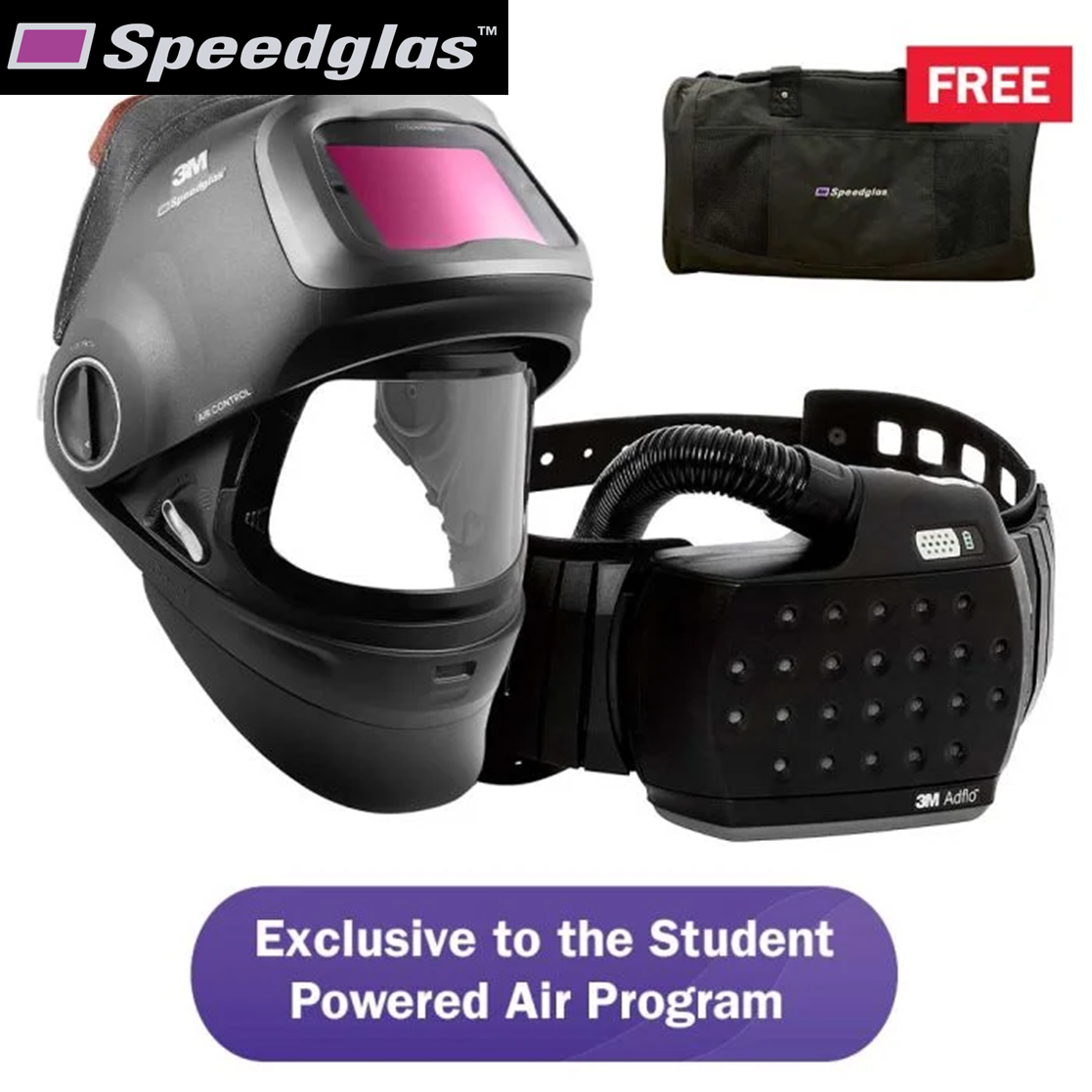

The G5-01 NC with Adflo PAPR is available exclusively to students that have registered for the Student Powered Air Program. To purchase this helmet, you must register for the Student Powered Air Program and present your access code to your preferred Speedglas Distributor. The kit also comes with a bonus Speedglas carry bag!

Step Up to Speedglas

Crafted in Sweden, Speedglas welding helmets offer market-leading features, quality and performance. There’s a reason Speedglas Welding Helmets with Adflo PAPR are worn by over 1 million welders worldwide! Start your welding career off on the right foot, by investing in quality protection that stands the test of time.

Huge Flip-Up Grinding Visor with Removable Welding Shield

A convenient flip-up mechanism reveals an ultra-wide 170×104 mm clear grinding visor. When performing grinding or non-welding tasks for extended periods, users have the option to completely remove the welding visor – reducing the helmet weight by over 35%.

Control Your Air Flow

Easily adjust the airflow inside your helmet with Speedglas climate control! An innovative airduct system lets you fine-tune the amount and direction of your airflow, for optimum comfort. All adjustments can be made using the external controls, allowing you to keep your eye, face and respiratory protection in place.

Expanded Viewing Area with Elite Optical Quality

Experience a more expansive view of your weld pool, with a large 55 x 107mm welding lens viewing area. See your welds in greater detail than ever before with Speedglas True-View technology, which offers greater clarity, colour and contrast when looking through the welding lens.

Streamlined Design with Increased Coverage

The G5-01 helmet is well-balanced with a slim profile, offering maximum coverage for your ears, head and neck. A range of extra head and neck covers are also available, giving you the ability to adapt your coverage based on your needs and environment.

Versatile Welding Lens for All Welding Applications

Suitable for a wide range of welding applications, the G5-01 NC welding lens gives you a light shade of 3, as well as dark shades 5 for cutting and shades 8-12 for welding.

Smooth and Secure Face Seal

Optimised for your comfort, the G5-01 face seal is designed to follow the contours of the wearer’s face. The result is a highly effective positive pressure respiratory seal that enables a constant flow of clean air to circulate throughout the welder’s breathing zone – keeping welding fume and other pollutants at bay.

Fully Customisable Head Harness

The G5-01 head harness features a market-leading 6 points of adjustment to ensure the best possible fit and evenly distributed weight for a lighter, more comfortable feel.

Reliable Arc Detection Even at Low Amperages

With arc detection down to an industry-leading 1 Amp and reliable switching from dark to light state, the G5-01 NC welding lens offers the required precision for high-performance, critical work.

Level Up Your Protection – When the Time is Right!

A range of accessories are available to level up your welding game, as your needs and environment change over time. Choose from additional head and neck covers, a helmet-mounted task light or upgrade your welding lens to the G5-01VC – the choice is yours!

Fully Compliant with AS/NZS Standards

The Speedglas G5-01 NC welding helmet with Adflo PAPR conforms with the relevant Australian and New Zealand standards for eye protection (AS/NZS1338.1), high-impact face protection (AS/NZS1337.1), and respiratory protection (AS/NZS1716).

Long-Life Battery with Rapid Charge Function

The Adflo battery provides approximately 8-10 hours run time, depending on conditions. With the new rapid-charger, the battery can be restored from 0% to 80% of its full capacity in just one hour – meaning you’re ready to weld again!

Welders Respiratory Protection

Respiratory protection built specifically for welding. Designed from inception to meet the specific needs of professional welders, the Adflo PAPR has long been established as one of the most popular powered air respiratory systems in the world.

Required Minimum Protection Factor (RMPF)

In accordance with the Australian and New Zealand Standard for powered air respirators (AS/NZS 1716), the Adflo PAPR provides a RMPF of 50 for mechanically and thermally generated particles. This means the air will be at least 50 times cleaner than you would otherwise breathe unprotected.

Clean Air to Your Breathing Zone

The consistent flow of filtered air supplied by the Adflo follows an intricate airflow pattern to spread evenly across the welder’s breathing zone. This allows welders to stay cool throughout each shift.

Lightweight Protection Against Welding Fume

The slim, streamlined design of the Adflo respirator enables easy mobility without compromising protection. This is especially valuable when working in tighter, more restrictive spaces.

Protection from Welding Particulates and Gases

With the right type of filters, your Adflo system offers effective protection against both welding fume particles and gases. Built-in indicators alert you when it’s time to replace your filters and recharge your battery.

Choose Your Airflow Rate

The 3M Adflo PAPR is designed to provide welders a constant nominal airflow rate of 170 liters per minute, with the option of increasing to 200 litres per minute for added comfort in hotter climates. Your airflow will maintain at this rate regardless of battery charge or filter load.

Easy Breathing Hose Connection

For one-handed attachment and disconnection, the Adflo breathing tube has a built-in Quick Release Swivel. The breathing hose length is self-adjusting, ensuring that the hose always remains close to your back, reducing the risk of snagging on nearby objects.
