Description
FOR HIGHEST QUALITY ALL POSITION STAINLESS STEEL WELDING

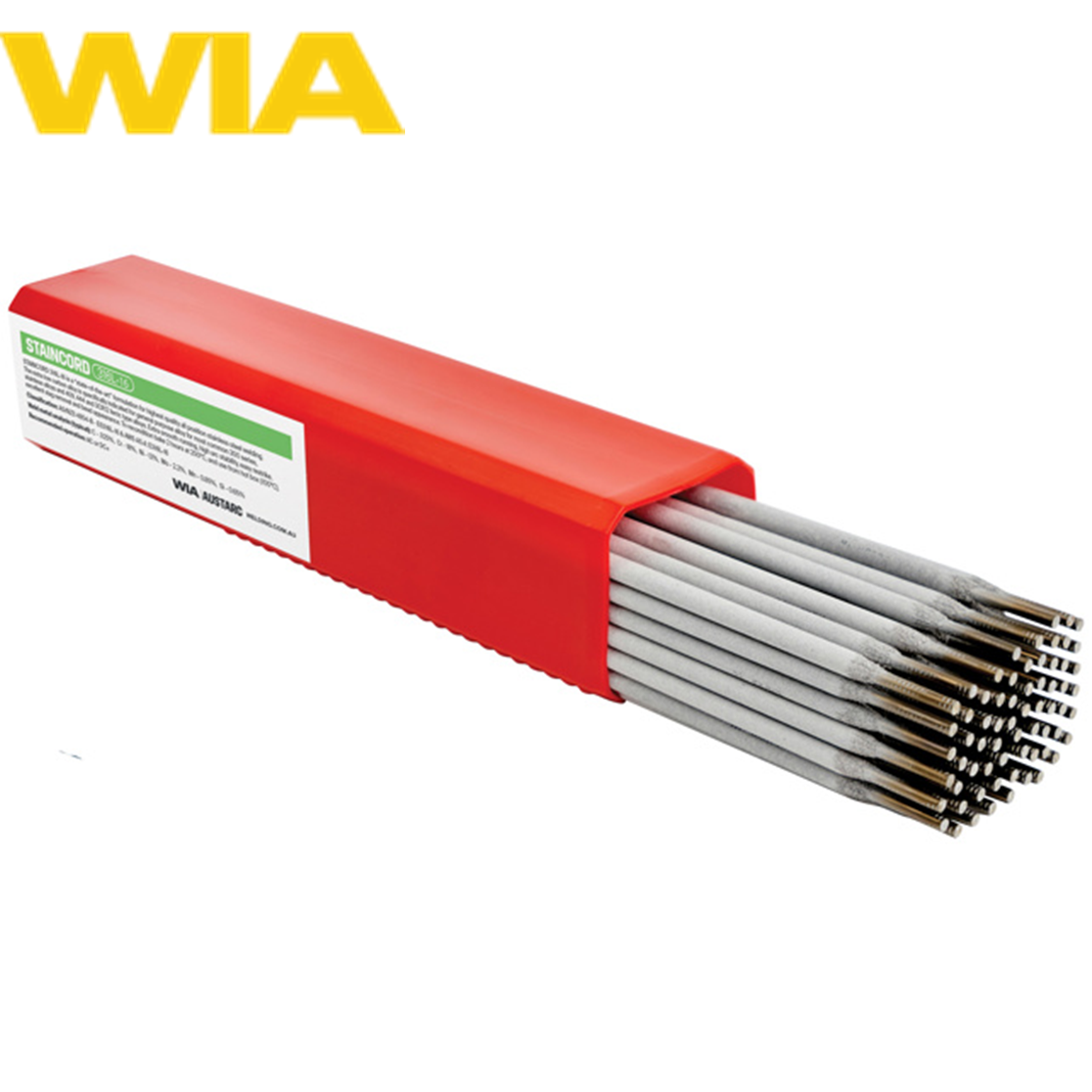

The Austarc Staincord 316L-16 stick electrode is a “state-of-the-art” formulation for highest quality all position stainless steel welding. It’s specifically indicated for general purpose alloy for most common 300 series, stainless alloys and 409, 444 and 3CR12 ferric type alloys.
Extra smooth running, it provides high arc stability, easy re-strike, excellent slag removal and bead appearance.
Processes: MMAW, SMAW
Typical Applications
The extra low carbon alloy is specifically indicated for general purpose alloy for most common 300 series, stainless alloys and 409, 444 and 3CR12 ferric type alloys.
CLASSIFICATION
- AS/NZS 4854-B – E316L-16
- AWS A5.4: E316L-16
SPECIFICATIONS
| Typical All Weld Metal Chemical Analysis | |||||||
|---|---|---|---|---|---|---|---|
| C | Mn | Si | Cr | Ni | Mo | P | S |
| 0.025 | 0.85 | 0.65 | 18.0 | 12.0 | 2.2 | 0.035 | 0.013 |
| Typical All Weld Metal Mechanical Analysis | ||
|---|---|---|
| Tensile Strength | Elongation | |
| 580 MPa | 43% | |
