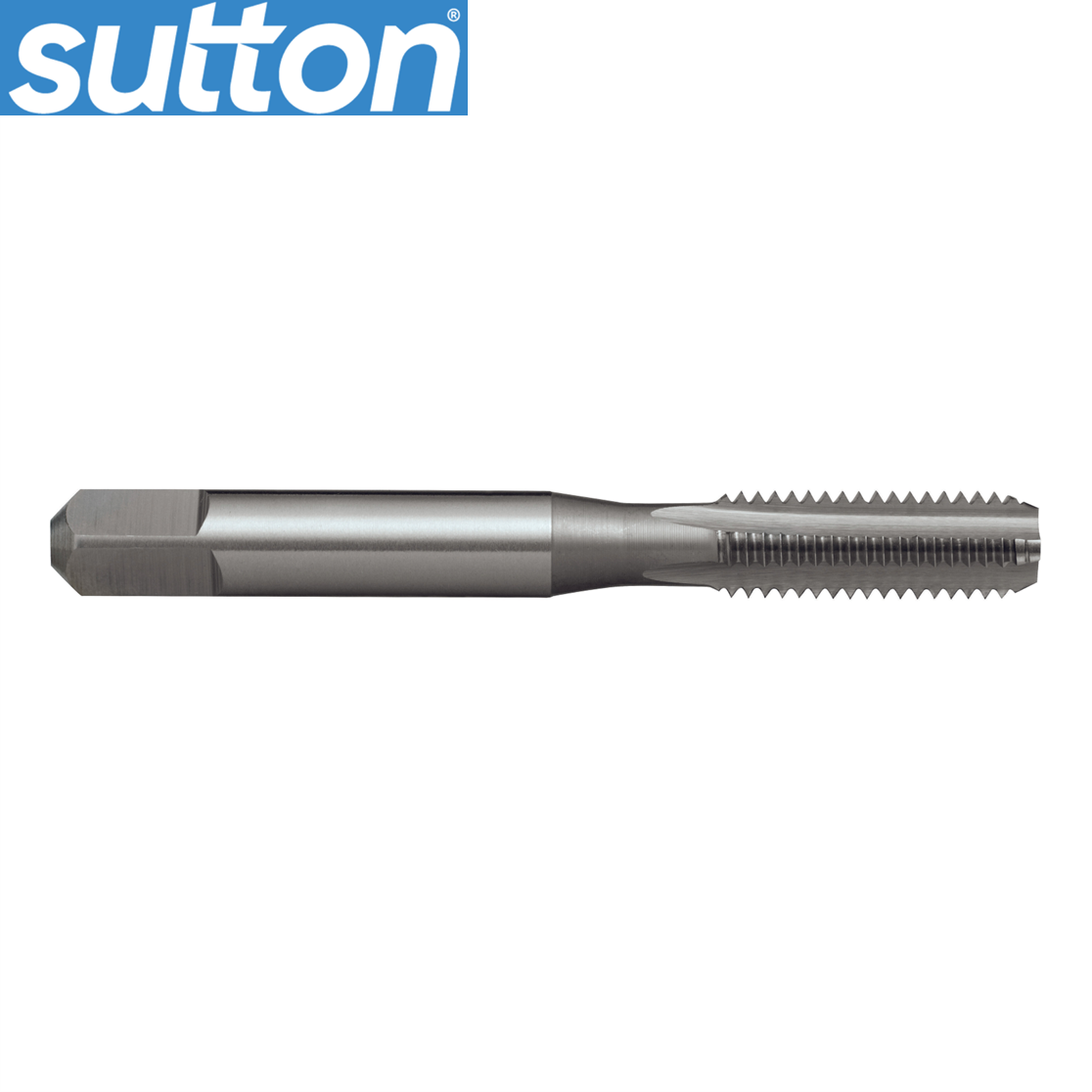

T386 Sutton Straight Flute Taps Bottoming Metric HSS / Select

T386 Sutton Straight Flute Taps Bottoming Metric HSS / Select - Image 2

T386 Sutton Straight Flute Taps Bottoming Metric HSS / Select - Image 3

T386 Sutton Straight Flute Taps Bottoming Metric HSS / Select

Brand

Item #

T386

MOQ

1

Categories

Cutting Tools, Hand Taps – Bottoming, Our Products, Taps & Dies

Dropdown

Clear

Add To Quote Request

General purpose use
Suitable for both hand and machine operations
Depths up to approx. 1 x d1
Suitable for materials up to 1000N/mm2

Item #	Size	Limit	Lead	Length l1 (mm)	Length l2 (mm)	Diameter d2 (mm)	sq	Length l4 (mm)	z
T3860200	M2x0.4	ISO 2 / 6H	–	41	8	2.5	2	4	3
T3860250	M2.5×0.45	ISO 2 / 6H	–	45	10	2.8	2.24	5	3
T3860300	M3x0.5	ISO 2 / 6H	–	48	11	3.15	2.5	5	3
T3860350	M3.5×0.6	ISO 2 / 6H	–	50	13	3.55	2.8	5	3
T3860400	M4x0.7	ISO 2 / 6H	–	53	13	4	3.15	6	3
T3860450	M4.5×0.75	ISO 2 / 6H	–	53	13	4.5	3.55	6	3
T3860500	M5x0.8	ISO 2 / 6H	–	58	16	5	4	7	3
T3860600	M6x1	ISO 2 / 6H	–	66	19	6.3	5	8	3
T3860700	M7x1	ISO 2 / 6H	–	66	19	7.1	5.6	8	4
T3860800	M8x1.25	ISO 2 / 6H	–	72	22	8	6.3	9	4
T3860900	M9x1.25	ISO 2 / 6H	–	72	22	9	7.1	10	4
T3861000	M10x1.5	ISO 2 / 6H	–	80	24	10	8	11	4
T3861100	M11x1.5	ISO 2 / 6H	–	85	25	8	6.3	9	4
T3861200	M12x1.75	ISO 2 / 6H	–	89	29	9	7.1	10	4
T3861400	M14x2	ISO 2 / 6H	–	95	30	11.2	9	12	4
T3861600	M16x2	ISO 2 / 6H	–	102	32	12.5	10	13	4
T3861800	M18x2.5	ISO 2 / 6H	–	112	37	14	11.2	14	4
T3862000	M20x2.5	ISO 2 / 6H	–	112	37	14	11.2	14	4
T3862200	M22x2.5	ISO 2 / 6H	–	118	38	16	12.5	16	4
T3862400	M24x3	ISO 2 / 6H	–	130	45	18	14	18	4
T3862700	M27x3	ISO 2 / 6H	–	135	45	20	16	20	4
T3863000	M30x3.5	ISO 2 / 6H	–	138	48	20	16	20	4
T3863300	M33x3.5	ISO 2 / 6H	–	151	51	22.4	18	22	4
T3863600	M36x4	ISO 2 / 6H	–	162	57	25	20	24	4
T3863900	M39x4	ISO 2 / 6H	–	170	60	28	22.4	26	4
T3864200	M42x4.5	ISO 2 / 6H	–	170	60	28	22.4	26	4
T3864500	M45x4.5	ISO 2 / 6H	–	187	67	31.5	25	28	4
T3864800	M48x5	ISO 2 / 6H	–	187	67	31.5	25	28	4
T3865200	M52x5	ISO 2 / 6H	–	200	70	35.5	28	31	4

Description

General purpose use
Suitable for both hand and machine operations
Depths up to approx. 1 x d1
Suitable for materials up to 1000N/mm2

Item #	Size	Limit	Lead	Length l1 (mm)	Length l2 (mm)	Diameter d2 (mm)	sq	Length l4 (mm)	z
T3860200	M2x0.4	ISO 2 / 6H	–	41	8	2.5	2	4	3
T3860250	M2.5×0.45	ISO 2 / 6H	–	45	10	2.8	2.24	5	3
T3860300	M3x0.5	ISO 2 / 6H	–	48	11	3.15	2.5	5	3
T3860350	M3.5×0.6	ISO 2 / 6H	–	50	13	3.55	2.8	5	3
T3860400	M4x0.7	ISO 2 / 6H	–	53	13	4	3.15	6	3
T3860450	M4.5×0.75	ISO 2 / 6H	–	53	13	4.5	3.55	6	3
T3860500	M5x0.8	ISO 2 / 6H	–	58	16	5	4	7	3
T3860600	M6x1	ISO 2 / 6H	–	66	19	6.3	5	8	3
T3860700	M7x1	ISO 2 / 6H	–	66	19	7.1	5.6	8	4
T3860800	M8x1.25	ISO 2 / 6H	–	72	22	8	6.3	9	4
T3860900	M9x1.25	ISO 2 / 6H	–	72	22	9	7.1	10	4
T3861000	M10x1.5	ISO 2 / 6H	–	80	24	10	8	11	4
T3861100	M11x1.5	ISO 2 / 6H	–	85	25	8	6.3	9	4
T3861200	M12x1.75	ISO 2 / 6H	–	89	29	9	7.1	10	4
T3861400	M14x2	ISO 2 / 6H	–	95	30	11.2	9	12	4
T3861600	M16x2	ISO 2 / 6H	–	102	32	12.5	10	13	4
T3861800	M18x2.5	ISO 2 / 6H	–	112	37	14	11.2	14	4
T3862000	M20x2.5	ISO 2 / 6H	–	112	37	14	11.2	14	4
T3862200	M22x2.5	ISO 2 / 6H	–	118	38	16	12.5	16	4
T3862400	M24x3	ISO 2 / 6H	–	130	45	18	14	18	4
T3862700	M27x3	ISO 2 / 6H	–	135	45	20	16	20	4
T3863000	M30x3.5	ISO 2 / 6H	–	138	48	20	16	20	4
T3863300	M33x3.5	ISO 2 / 6H	–	151	51	22.4	18	22	4
T3863600	M36x4	ISO 2 / 6H	–	162	57	25	20	24	4
T3863900	M39x4	ISO 2 / 6H	–	170	60	28	22.4	26	4
T3864200	M42x4.5	ISO 2 / 6H	–	170	60	28	22.4	26	4
T3864500	M45x4.5	ISO 2 / 6H	–	187	67	31.5	25	28	4
T3864800	M48x5	ISO 2 / 6H	–	187	67	31.5	25	28	4
T3865200	M52x5	ISO 2 / 6H	–	200	70	35.5	28	31	4

Designation	N
Finish	Brt
Shank Form	A
Type	Straight Flute
Thread Form	M
Lead	Bottoming
Material	HSS
Max Cut Depth	1xD
X	als
Standard	ISO529
Nut Tolerance	ISO 2 / 6H

Straight Flute Taps – M – Bottoming | Sutton Tools

*** Full SUTTON TOOLS range available so if you don’t see it on our website just get in touch with us!

Description

General purpose use
Suitable for both hand and machine operations
Depths up to approx. 1 x d1
Suitable for materials up to 1000N/mm2

Item #	Size	Limit	Lead	Length l1 (mm)	Length l2 (mm)	Diameter d2 (mm)	sq	Length l4 (mm)	z
T3860200	M2x0.4	ISO 2 / 6H	–	41	8	2.5	2	4	3
T3860250	M2.5×0.45	ISO 2 / 6H	–	45	10	2.8	2.24	5	3
T3860300	M3x0.5	ISO 2 / 6H	–	48	11	3.15	2.5	5	3
T3860350	M3.5×0.6	ISO 2 / 6H	–	50	13	3.55	2.8	5	3
T3860400	M4x0.7	ISO 2 / 6H	–	53	13	4	3.15	6	3
T3860450	M4.5×0.75	ISO 2 / 6H	–	53	13	4.5	3.55	6	3
T3860500	M5x0.8	ISO 2 / 6H	–	58	16	5	4	7	3
T3860600	M6x1	ISO 2 / 6H	–	66	19	6.3	5	8	3
T3860700	M7x1	ISO 2 / 6H	–	66	19	7.1	5.6	8	4
T3860800	M8x1.25	ISO 2 / 6H	–	72	22	8	6.3	9	4
T3860900	M9x1.25	ISO 2 / 6H	–	72	22	9	7.1	10	4
T3861000	M10x1.5	ISO 2 / 6H	–	80	24	10	8	11	4
T3861100	M11x1.5	ISO 2 / 6H	–	85	25	8	6.3	9	4
T3861200	M12x1.75	ISO 2 / 6H	–	89	29	9	7.1	10	4
T3861400	M14x2	ISO 2 / 6H	–	95	30	11.2	9	12	4
T3861600	M16x2	ISO 2 / 6H	–	102	32	12.5	10	13	4
T3861800	M18x2.5	ISO 2 / 6H	–	112	37	14	11.2	14	4
T3862000	M20x2.5	ISO 2 / 6H	–	112	37	14	11.2	14	4
T3862200	M22x2.5	ISO 2 / 6H	–	118	38	16	12.5	16	4
T3862400	M24x3	ISO 2 / 6H	–	130	45	18	14	18	4
T3862700	M27x3	ISO 2 / 6H	–	135	45	20	16	20	4
T3863000	M30x3.5	ISO 2 / 6H	–	138	48	20	16	20	4
T3863300	M33x3.5	ISO 2 / 6H	–	151	51	22.4	18	22	4
T3863600	M36x4	ISO 2 / 6H	–	162	57	25	20	24	4
T3863900	M39x4	ISO 2 / 6H	–	170	60	28	22.4	26	4
T3864200	M42x4.5	ISO 2 / 6H	–	170	60	28	22.4	26	4
T3864500	M45x4.5	ISO 2 / 6H	–	187	67	31.5	25	28	4
T3864800	M48x5	ISO 2 / 6H	–	187	67	31.5	25	28	4
T3865200	M52x5	ISO 2 / 6H	–	200	70	35.5	28	31	4

Additional information

Dropdown

T3860200 – M 2×0.4 6H, T3860250 – M 2.5×0.45 6H, T3860300 – M 3×0.5 6H, T3860350 – M 3.5×0.6 6H, T3860400 – M 4×0.7 6H, T3860450 – M 4.5×0.75 6H, T3860500 – M 5×0.8 6H, T3860600 – M 6×1 6H, T3860700 – M 7×1 6H, T3860800 – M 8×1.25 6H, T3860900 – M 9×1.25 6H, T3861000 – M 10×1.5 6H, T3861100 – M 11×1.5 6H, T3861200 – M 12×1.75 6H, T3861400 – M 14×2 6H, T3861600 – M 16×2 6H, T3861800 – M 18×2.5 6H, T3862000 – M 20×2.5 6H, T3862200 – M 22×2.5 6H, T3862400 – M 24×3 6H, T3862700 – M 27×3 6H, T3863000 – M 30×3.5 6H, T3863300 – M 33×3.5 6H, T3863600 – M 36×4 6H, T3863900 – M 39×4 6H, T3864200 – M 42×4.5 6H, T3864500 – M 45×4.5 6H, T3864800 – M 48×5 6H, T3865200 – M 52×5 6H
