Description

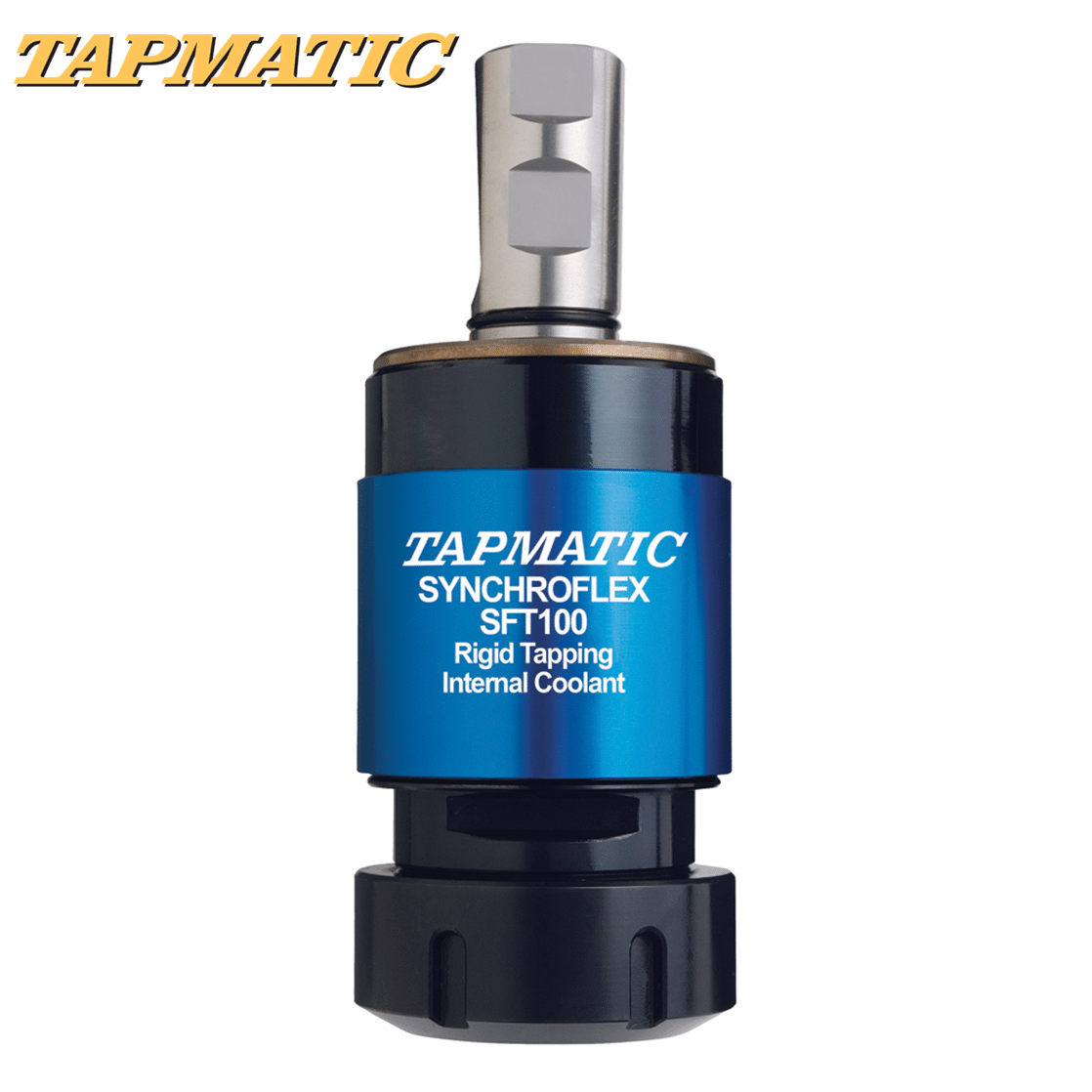

The Tapmatic tap holder is a highly specialized CNC rigid tapping tool holder designed to compensate for pitch errors in synchronized or rigid tapping machines.
- SynchroFlex Technology: Uses a patented flexure design that acts as a microscopic shock absorber, drastically reducing thrust forces on the tap.
- Benefits: Extends tap life by up to 100% and drastically improves thread quality, all without overstressing the machine.
Z100SFT10 Tapmatic Syncroflex CNC Rigid Tapping Tap Holder
- Tap Capacity: M1 to M6 (or #2 to #10 in fractional sizes)
- Collet System: Uses ER11 Collets to hold various tap shank sizes
- Shank Mount: 25mm Straight Shank
- Ref#: 4312511
- Barcode: 9311963429526
Z100SFT50 Tapmatic Syncroflex CNC Rigid Tapping Tap Holder
- Tap Capacity: M4-M12 (#8-#1/2″)
- Collet System: Uses ER20 Collets to hold various tap shank sizes
- Shank Mount: 25mm Straight Shank
- Ref#: 43502520
- Barcode: 9311963429533
Z100SFT75 Tapmatic Syncroflex CNC Rigid Tapping Tap Holder
- Tap Capacity: M4-M16 (#3/8″#3/4″)
- Collet System: Uses ER25 Collets to hold various tap shank sizes
- Shank Mount: 25mm Straight Shank
- Ref#: 43752525
- Barcode: 9311963429540
