17 series torch, unimig tig torch

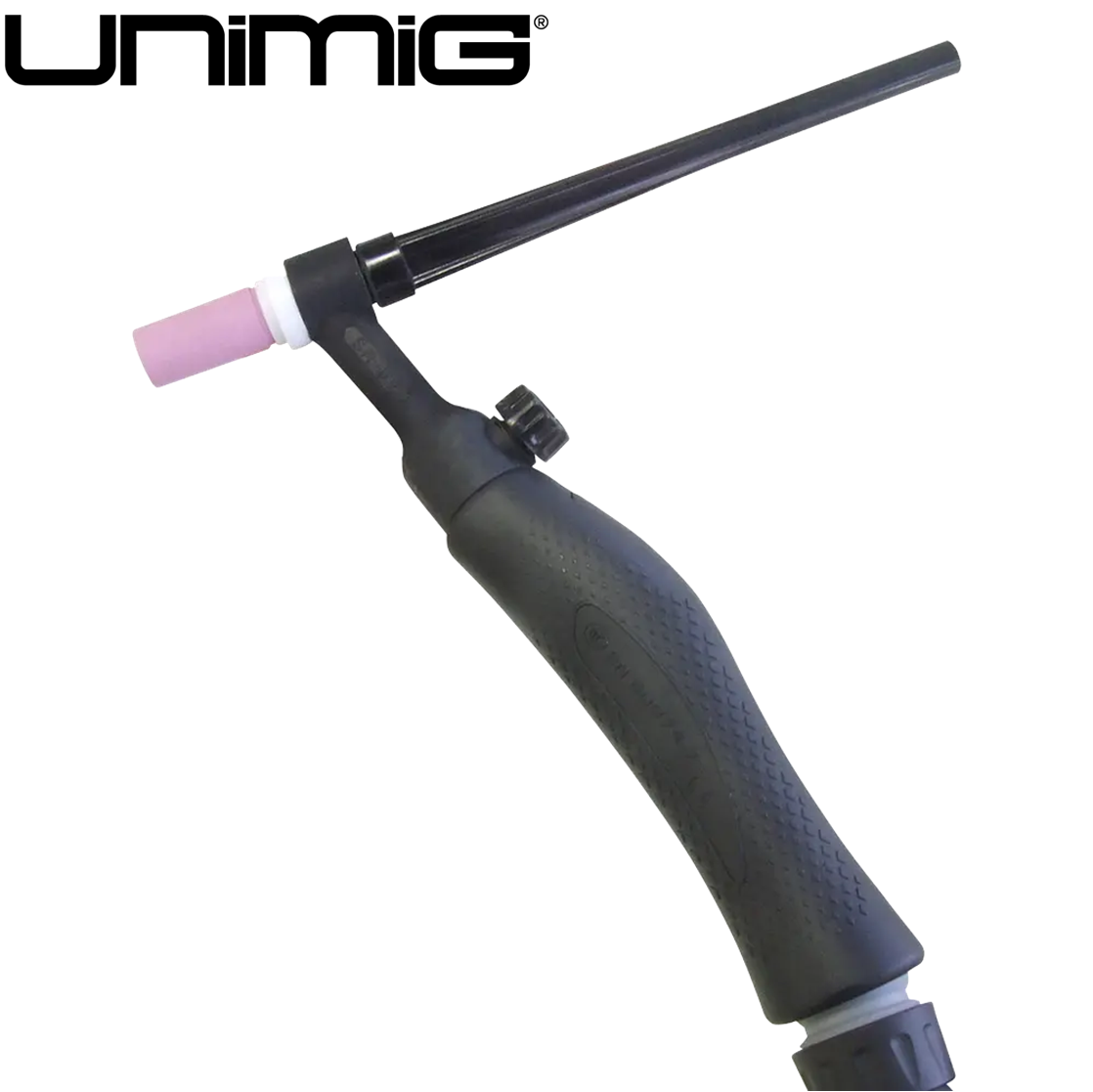

17V-4MCP50 Unimig 17 Series Valve TIG Torch 35/50

Brand

Unimig Welding Supplies

Item #

17V4MCP50

MOQ

1

Categories

, ,
Add To Quote Request
The Unimig 17V TIG Torch has been engineered for effortless and powerful performance while DC Lift Arc TIG welding, with shielded switch leads for max machine protection.
  • Weld with electrodes as thick as 3.2mm with a 150A output
  • Keep your hand comfortable with a soft grip and knuckle joints on the ergonomic handle
  • Easily swap our torch head to a flex-head and weld at any angle

Torch Length: 4m / 8m

Dinse: 35/50

150A Output

  • Perform effortlessly on every weld. With a rated output of 150A, you’ll be able to weld with tungsten electrodes up to 3.2mm thick.

Ergonomic Handle

  • The ergonomic handle, with soft grips and knuckle joints, provides comfort even during extended periods of usage.

Flex-Head Compatible

  • Bend your torch head to any angle you need. The 17 Series Valve torch comes with the option to swap to a flex-head, so you can access tight and cramped spaces when you need to.

Advanced Cable System

  • A durable cable system keeps your torch connections protected and running at max capacity. Shielded switch leads, rubber cable materials, and a flexible leather section along the first metre of the torch all work to safeguard your torch leads.

Torch Specifications

Cooling Method Air-Cooled
Maximum Output 150A
Duty Cycle @ 40°C – DC 35% @ 150A
Duty Cycle @ 40°C – AC 35% @ 105A
Lengths (m) 4, 8
Tungsten Range 1.0-3.2mm
Dinse Size 35/50
Standard EN 60974-7



Description

The Unimig 17V TIG Torch has been engineered for effortless and powerful performance while DC Lift Arc TIG welding, with shielded switch leads for max machine protection.
  • Weld with electrodes as thick as 3.2mm with a 150A output
  • Keep your hand comfortable with a soft grip and knuckle joints on the ergonomic handle
  • Easily swap our torch head to a flex-head and weld at any angle

Torch Length: 4m / 8m

Dinse: 35/50

150A Output

  • Perform effortlessly on every weld. With a rated output of 150A, you’ll be able to weld with tungsten electrodes up to 3.2mm thick.

Ergonomic Handle

  • The ergonomic handle, with soft grips and knuckle joints, provides comfort even during extended periods of usage.

Flex-Head Compatible

  • Bend your torch head to any angle you need. The 17 Series Valve torch comes with the option to swap to a flex-head, so you can access tight and cramped spaces when you need to.

Advanced Cable System

  • A durable cable system keeps your torch connections protected and running at max capacity. Shielded switch leads, rubber cable materials, and a flexible leather section along the first metre of the torch all work to safeguard your torch leads.

Torch Specifications

Cooling Method Air-Cooled
Maximum Output 150A
Duty Cycle @ 40°C – DC 35% @ 150A
Duty Cycle @ 40°C – AC 35% @ 105A
Lengths (m) 4, 8
Tungsten Range 1.0-3.2mm
Dinse Size 35/50
Standard EN 60974-7



*** Full UNIMIG range available so if you don’t see it on our website just get in touch with us!Unimig Welder Welders Welding Supplies Shop Brisbane Mig TIG Consumables Industrial Distributor Australia







Description

The Unimig 17V TIG Torch has been engineered for effortless and powerful performance while DC Lift Arc TIG welding, with shielded switch leads for max machine protection.
  • Weld with electrodes as thick as 3.2mm with a 150A output
  • Keep your hand comfortable with a soft grip and knuckle joints on the ergonomic handle
  • Easily swap our torch head to a flex-head and weld at any angle

Torch Length: 4m / 8m

Dinse: 35/50

150A Output

  • Perform effortlessly on every weld. With a rated output of 150A, you’ll be able to weld with tungsten electrodes up to 3.2mm thick.

Ergonomic Handle

  • The ergonomic handle, with soft grips and knuckle joints, provides comfort even during extended periods of usage.

Flex-Head Compatible

  • Bend your torch head to any angle you need. The 17 Series Valve torch comes with the option to swap to a flex-head, so you can access tight and cramped spaces when you need to.

Advanced Cable System

  • A durable cable system keeps your torch connections protected and running at max capacity. Shielded switch leads, rubber cable materials, and a flexible leather section along the first metre of the torch all work to safeguard your torch leads.

Torch Specifications

Cooling Method Air-Cooled
Maximum Output 150A
Duty Cycle @ 40°C – DC 35% @ 150A
Duty Cycle @ 40°C – AC 35% @ 105A
Lengths (m) 4, 8
Tungsten Range 1.0-3.2mm
Dinse Size 35/50
Standard EN 60974-7



Additional information

Brand

Select

17V-4MCP50 Unimig 17 Series Valve TIG Torch 35/50 4Mtr, 17V-8MCP5 Unimig 17 Series Valve TIG Torch 35/50 8Mtr
