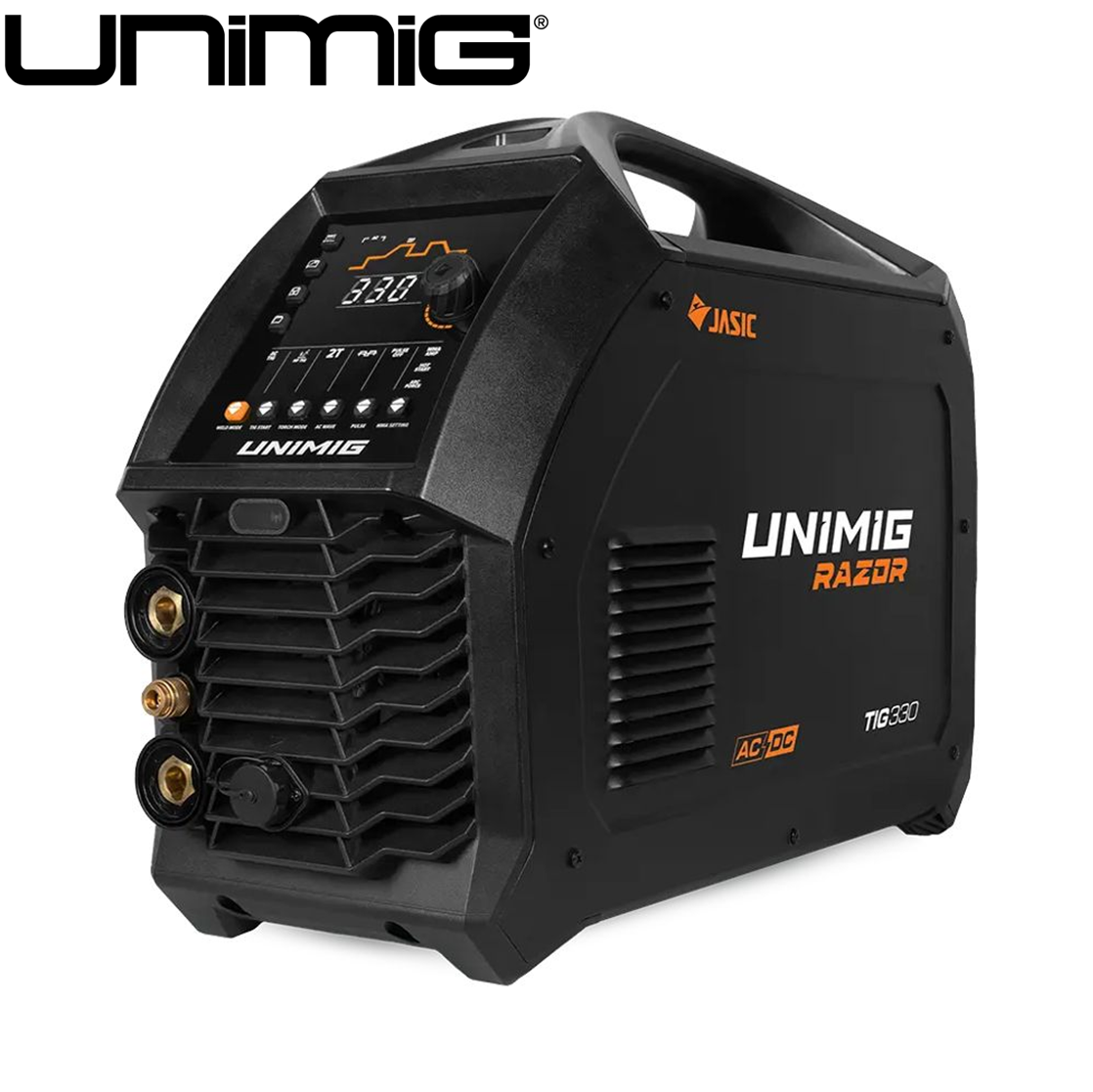

U11021 Unimig Razor TIG 330 AC/DC Welder

Brand

Unimig Welding Supplies

Item #

U11021

MOQ

1

Categories

, , ,
Add To Quote Request
Get incredible results from start to finish with this professional-grade TIG welder, designed for high-end fabrication, and marine and industrial engineering situations.
  • Effortlessly weld any metal with the high-frequency AC/DC TIG
  • The ultimate combination of AC and DC with mixed arc settings
  • Switch your AC welds to suit your needs with the choice of three waveforms

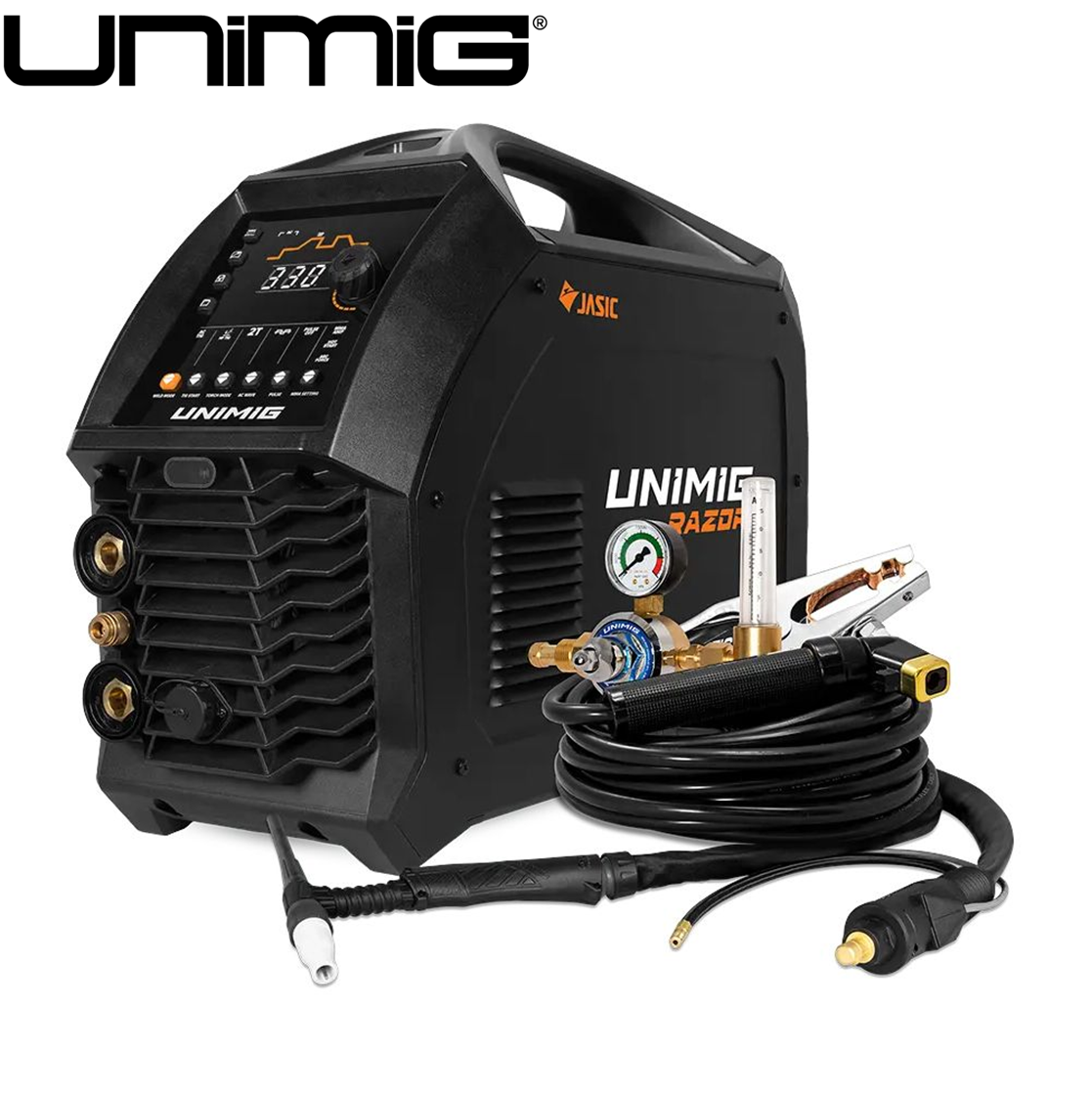

In the box:
  • RAZOR TIG 330 AC/DC Welder
  • 4m T2 TIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 300 Amp Earth Clamp & Lead
  • Argon Flowmeter Regulator
  • 2.5m Gas Hose with fittings
  • Operating Manual

DETAILED PRODUCT INFORMATION LINK > UNIMIG RAZOR TIG 330 AC/DC Welder

Machine Specifications
Primary Input Voltage 415V Three-Phase
Supply Plug Unplugged (32A Recommended)
Ieff (A) 10.0
Imax (A) 17.6
Open Circuit Voltage (OCV) 71.0
Open Circuit Voltage with VRD Active (V) 9.5
Protection Class IP23S
Insulation Class H
Minimum Generator (kVA) 20.0
Dinse Connector 35/50
Standard AS 60974.1
Warranty 5 Years
Weight (kg) 23.80
Dimensions (LxWxH) 568 x 230 x 416mm
Suitable Materials TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
  MMA: Mild Steel, Stainless Steel, Cast Iron
TIG Specifications
TIG Ignition Type AC/DC High-Frequency
  AC/DC Lift Arc
TIG Current Range 10-330A
TIG Duty Cycle @ 40°C 30% @ 330A
  60% @ 233A
  100% @ 181A
TIG Welding Thickness Range 1-16mm
MMA Specifications
MMA Current Range 10-270A
MMA Duty Cycle @ 40°C 30% @ 270A
  60% @ 190A
  100% @ 148A
MMA Electrode Range 2.5-4.0mm
MMA Welding Thickness Range 2-16mm

Description

Get incredible results from start to finish with this professional-grade TIG welder, designed for high-end fabrication, and marine and industrial engineering situations.
  • Effortlessly weld any metal with the high-frequency AC/DC TIG
  • The ultimate combination of AC and DC with mixed arc settings
  • Switch your AC welds to suit your needs with the choice of three waveforms
In the box:
  • RAZOR TIG 330 AC/DC Welder
  • 4m T2 TIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 300 Amp Earth Clamp & Lead
  • Argon Flowmeter Regulator
  • 2.5m Gas Hose with fittings
  • Operating Manual

DETAILED PRODUCT INFORMATION LINK > UNIMIG RAZOR TIG 330 AC/DC Welder

Machine Specifications
Primary Input Voltage 415V Three-Phase
Supply Plug Unplugged (32A Recommended)
Ieff (A) 10.0
Imax (A) 17.6
Open Circuit Voltage (OCV) 71.0
Open Circuit Voltage with VRD Active (V) 9.5
Protection Class IP23S
Insulation Class H
Minimum Generator (kVA) 20.0
Dinse Connector 35/50
Standard AS 60974.1
Warranty 5 Years
Weight (kg) 23.80
Dimensions (LxWxH) 568 x 230 x 416mm
Suitable Materials TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
  MMA: Mild Steel, Stainless Steel, Cast Iron
TIG Specifications
TIG Ignition Type AC/DC High-Frequency
  AC/DC Lift Arc
TIG Current Range 10-330A
TIG Duty Cycle @ 40°C 30% @ 330A
  60% @ 233A
  100% @ 181A
TIG Welding Thickness Range 1-16mm
MMA Specifications
MMA Current Range 10-270A
MMA Duty Cycle @ 40°C 30% @ 270A
  60% @ 190A
  100% @ 148A
MMA Electrode Range 2.5-4.0mm
MMA Welding Thickness Range 2-16mm

*** Full UNIMIG range available so if you don’t see it on our website just get in touch with us!Unimig Welder Welders Welding Supplies Shop Brisbane Mig TIG Consumables Industrial Distributor Australia







Description

Get incredible results from start to finish with this professional-grade TIG welder, designed for high-end fabrication, and marine and industrial engineering situations.
  • Effortlessly weld any metal with the high-frequency AC/DC TIG
  • The ultimate combination of AC and DC with mixed arc settings
  • Switch your AC welds to suit your needs with the choice of three waveforms
In the box:
  • RAZOR TIG 330 AC/DC Welder
  • 4m T2 TIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 300 Amp Earth Clamp & Lead
  • Argon Flowmeter Regulator
  • 2.5m Gas Hose with fittings
  • Operating Manual

DETAILED PRODUCT INFORMATION LINK > UNIMIG RAZOR TIG 330 AC/DC Welder

Machine Specifications
Primary Input Voltage 415V Three-Phase
Supply Plug Unplugged (32A Recommended)
Ieff (A) 10.0
Imax (A) 17.6
Open Circuit Voltage (OCV) 71.0
Open Circuit Voltage with VRD Active (V) 9.5
Protection Class IP23S
Insulation Class H
Minimum Generator (kVA) 20.0
Dinse Connector 35/50
Standard AS 60974.1
Warranty 5 Years
Weight (kg) 23.80
Dimensions (LxWxH) 568 x 230 x 416mm
Suitable Materials TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
  MMA: Mild Steel, Stainless Steel, Cast Iron
TIG Specifications
TIG Ignition Type AC/DC High-Frequency
  AC/DC Lift Arc
TIG Current Range 10-330A
TIG Duty Cycle @ 40°C 30% @ 330A
  60% @ 233A
  100% @ 181A
TIG Welding Thickness Range 1-16mm
MMA Specifications
MMA Current Range 10-270A
MMA Duty Cycle @ 40°C 30% @ 270A
  60% @ 190A
  100% @ 148A
MMA Electrode Range 2.5-4.0mm
MMA Welding Thickness Range 2-16mm
