Description

NB: LARGE MACHINE – DELIVERY SOUTH EAST QLD ONLY

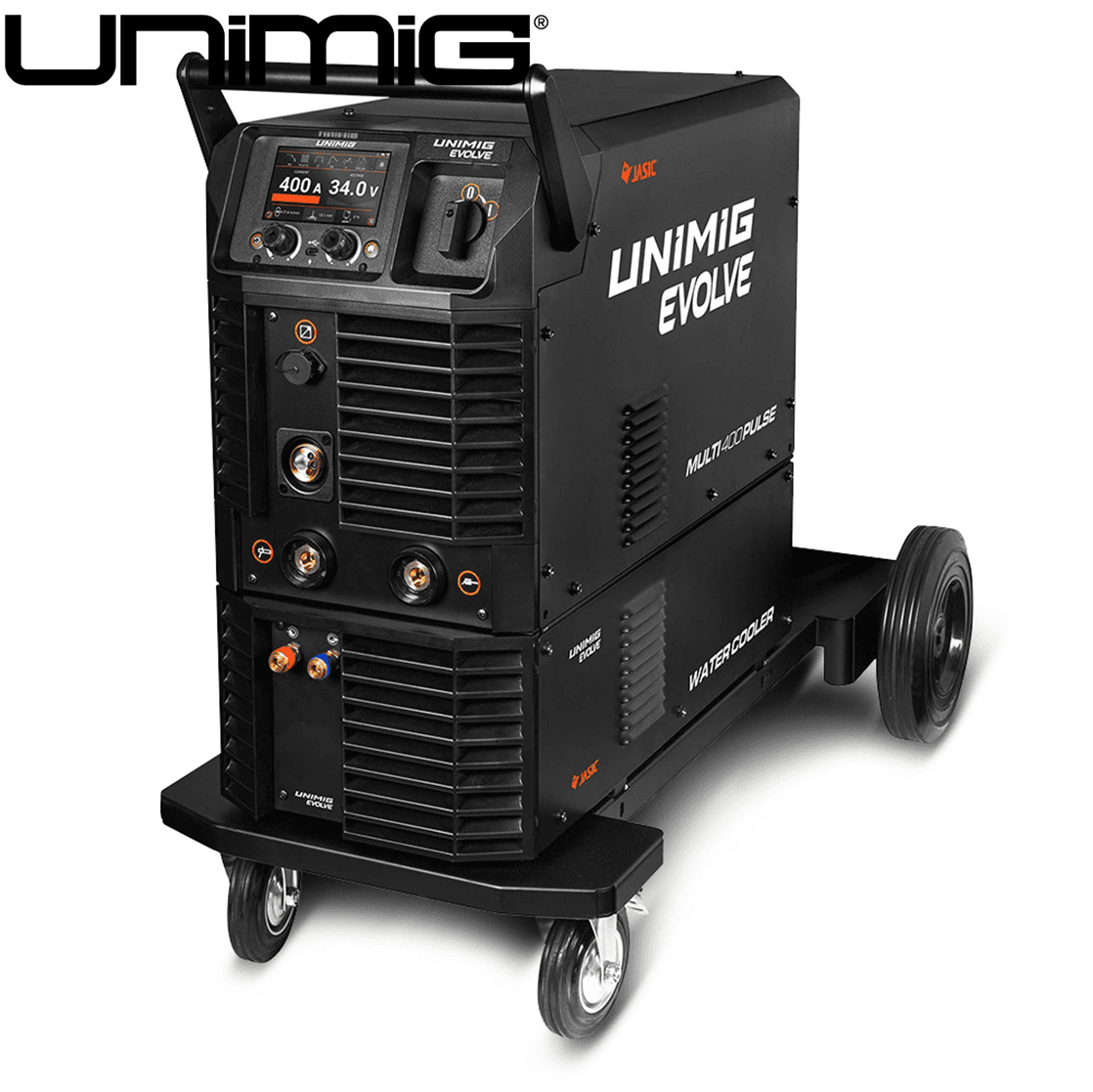

Packed full of revolutionary technologies, future-proof your workshop with our all-new EVOLVE MULTI 400 PULSE Water-Cooled Trolley Package.

Complete with single and double pulse MIG programs
Get a full range of additional modular accessories, including AC/DC TIG and Separate Wire Feeder unit
Comes packaged with a water cooler and trolley

In the box:

Machine Specifications
Primary Input Voltage	240V Single-Phase
	415V Three-Phase
Supply Plug	32A
Ieff (A)	14.4 (Single-Phase)
	18.3 (Three-Phase)
Imax (A)	32.2 (Single-Phase)
	24.5 (Three-Phase)
Open Circuit Voltage (OCV)	70
Open Circuit Voltage with VRD Active (V)	9.5
Protection Class	IP21S
Insulation Class	H
Minimum Generator (kVA)	13 (Single-Phase)
23 (Three-Phase)
Dinse Connector	35/50
Standard	AS 60974.1
Warranty	5 Years
Suitable Materials	MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
	MMA: Mild Steel, Stainless Steel, Cast Iron
MIG Specifications
MIG Current Range	20-250A (Single-Phase)
	20-400A (Three Phase)
MIG Duty Cycle @ 40°C	20% @ 250A (Single-Phase)
	60% @ 144A (Single-Phase)
	100% @ 112A (Single-Phase)
	—
	60% @ 400A (Three-Phase)
	100% @ 310A (Three-Phase)
MIG Wire Sizes	0.6-1.6mm
MIG Wire Spool Sizes	5kg (D200)
	15kg (D300)
MIG Welding Thickness Range	0.6-20mm (Single Pass)
	>20mm (Multi Pass)
Drive Roller Size	30/22
MMA Specifications
MMA Current Range	20-225A (Single-Phase)
	20-400A (Three-Phase)
MMA Duty Cycle @ 40°C	20% @ 225A (Single-Phase)
	60% @ 130A (Single-Phase)
	100% @ 100A (Single-Phase)
	—
	60% @ 400A (Three-Phase)
	100% @ 310A (Three-Phase)
MMA Electrode Range	1.6-6.0mm
MMA Welding Thickness Range	2-10mm (Single Pass)
>10mm (Multi Pass)

Additional information

Brand	Unimig Welding Supplies
