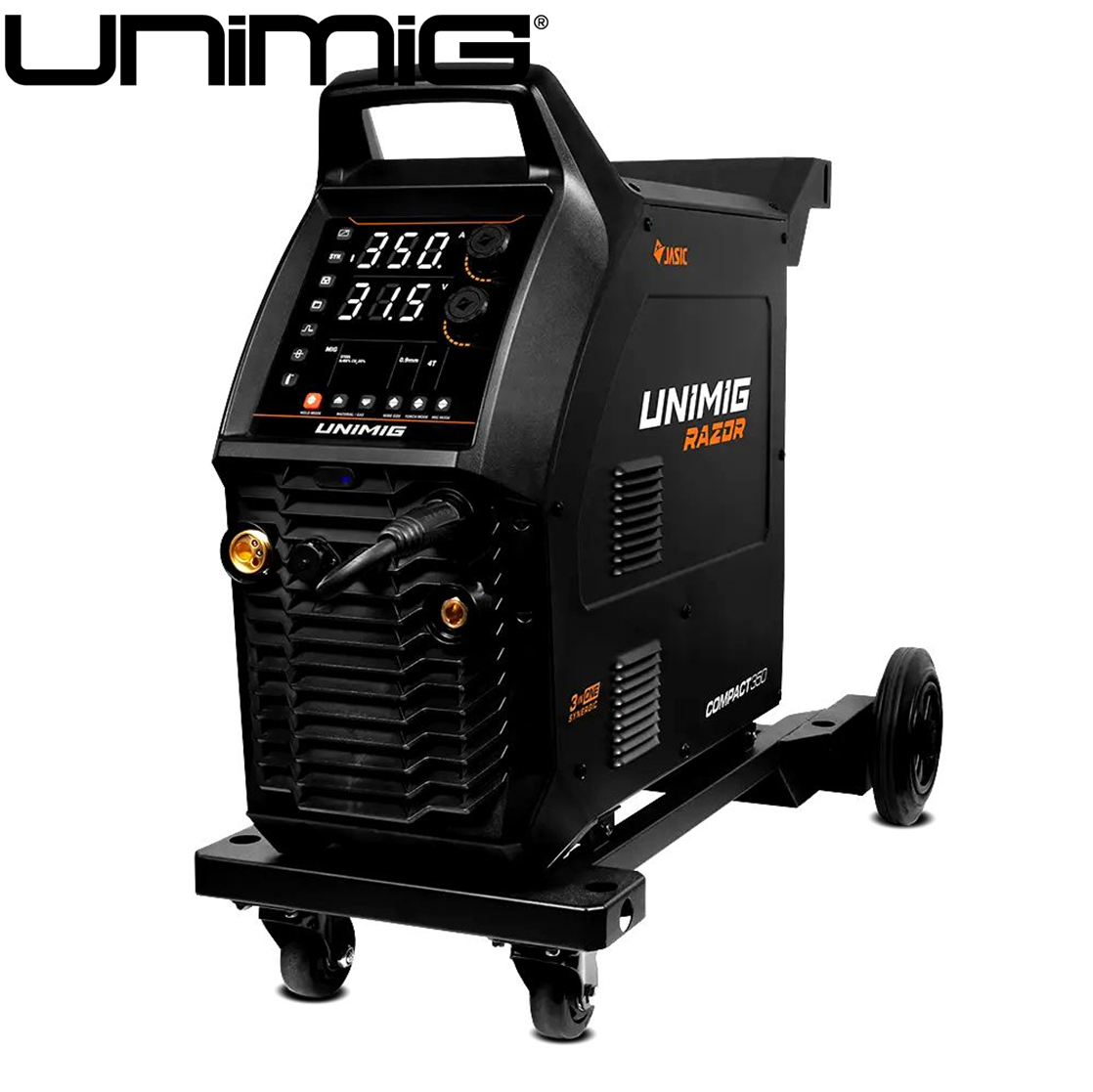

U11218 Unimig Razor Compact 350 Welder
U11218 Unimig Razor Compact 350 Welder - Image 2

U11218 Unimig Razor Compact 350 Welder

Brand

Unimig Welding Supplies

Item #

U11218

MOQ

1

Categories

, , ,
Add To Quote Request
NB: LARGE MACHINE – DELIVERY SOUTH EAST QLD ONLY
This multi-process machine gives you professional-grade welds in a compact design with a built-in trolley that’s made for mobility.
  • Built-in trolley for flexibility
  • Push-Pull gun ready for heavy-duty welding
  • 4 geared wire drive system for the smoothest wire feeding experience

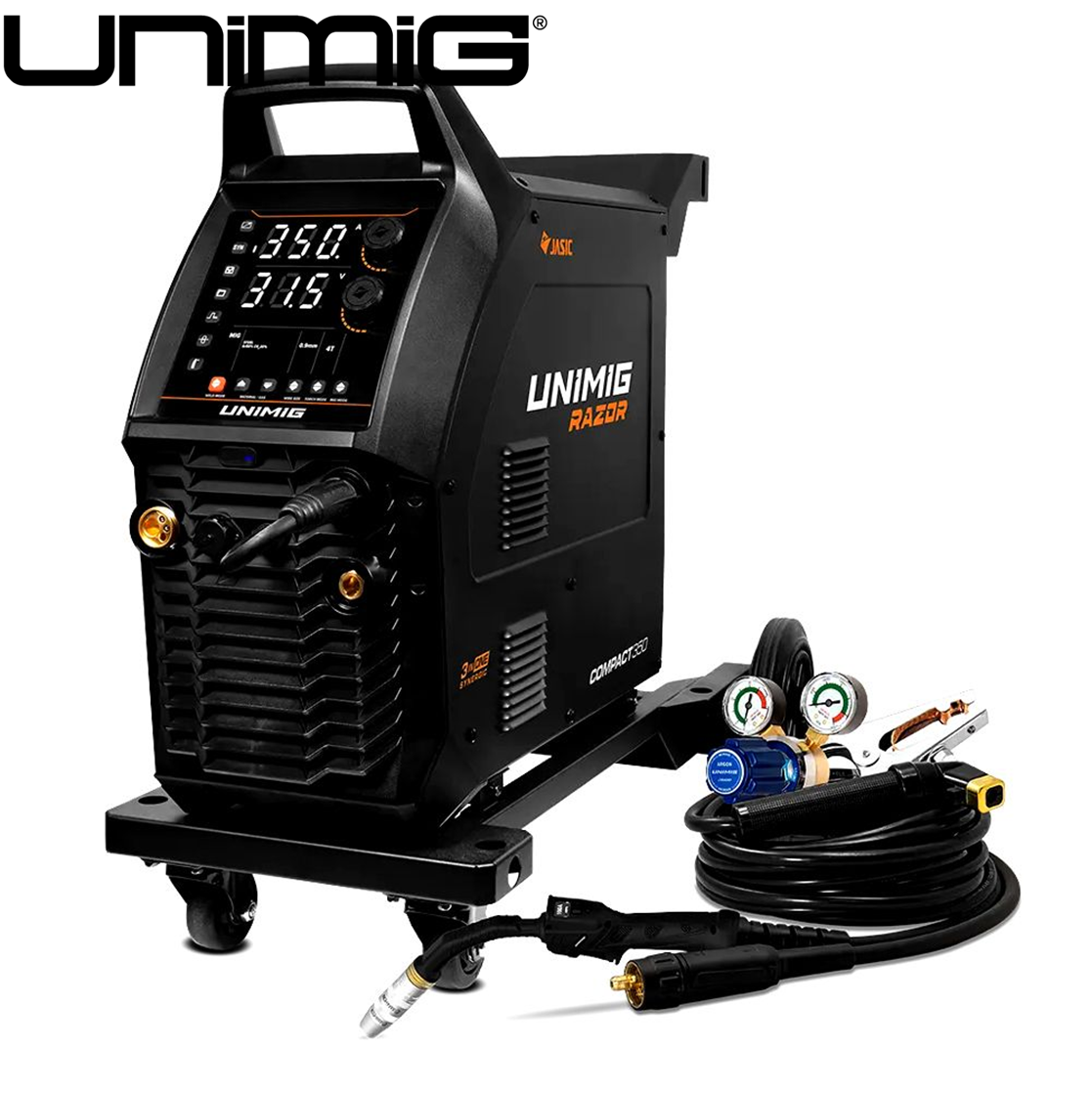

In the box:
  • RAZOR COMPACT 350 Welder
  • 3m M350 Digital MIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 500A Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 1.8m Quick-Connect Gas Hose
  • Operating Manual
  • 2 x 0.8-0.9mm V Groove Rollers
  • 2 x 1.0-1.2mm V Groove Rollers
  • 2 x 0.8-0.9mm F Groove Rollers
  • 2 x 1.0-1.2mm F Groove Rollers
  • 4 x 1.0-1.2mm U Groove Rollers

DETAILED PRODUCT INFORMATION LINK >RAZOR Compact 350 Welder

Machine Specifications
Primary Input Voltage 415V Three-Phase
Supply Plug Unplugged (32A Recommended)
Ieff (A) 12.6
Imax (A) 21.4
Open Circuit Voltage (OCV) 80.0
Open Circuit Voltage with VRD Active (V) 13.5
Protection Class IP23S
Insulation Class H
Minimum Generator (kVA) 20.0
Dinse Connector 35/50
Standard AS 60974.1
Warranty 5 Years
Weight (kg) 45.10
Dimensions (LxWxH) 977 x 480 x 753mm
Suitable Materials MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
  MMA: Mild Steel, Stainless Steel, Cast Iron
  TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
MIG Specifications
MIG Current Range 30-350A
MIG Duty Cycle @ 40°C 40% @ 350A
  60% @ 285A
  100% @ 221A
MIG Wire Sizes 0.6-1.2mm
MIG Wire Spool Sizes 5kg (D200)
  15kg (D300)
MIG Welding Thickness Range 1-16mm
Drive Roller Size 37/24
TIG Specifications
TIG Ignition Type DC Lift Arc
TIG Current Range 20-350A
TIG Duty Cycle @ 40°C 40% @ 350A
  60% @ 285A
  100% @ 221A
TIG Welding Thickness Range 1-10mm
MMA Specifications
MMA Current Range 20-350A
MMA Duty Cycle @ 40°C 40% @ 350A
  60% @ 285A
  100% @ 221A
MMA Electrode Range 2.5-4.0mm
MMA Welding Thickness Range 2-16mm

Description

NB: LARGE MACHINE – DELIVERY SOUTH EAST QLD ONLY
This multi-process machine gives you professional-grade welds in a compact design with a built-in trolley that’s made for mobility.
  • Built-in trolley for flexibility
  • Push-Pull gun ready for heavy-duty welding
  • 4 geared wire drive system for the smoothest wire feeding experience
In the box:
  • RAZOR COMPACT 350 Welder
  • 3m M350 Digital MIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 500A Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 1.8m Quick-Connect Gas Hose
  • Operating Manual
  • 2 x 0.8-0.9mm V Groove Rollers
  • 2 x 1.0-1.2mm V Groove Rollers
  • 2 x 0.8-0.9mm F Groove Rollers
  • 2 x 1.0-1.2mm F Groove Rollers
  • 4 x 1.0-1.2mm U Groove Rollers

DETAILED PRODUCT INFORMATION LINK >RAZOR Compact 350 Welder

Machine Specifications
Primary Input Voltage 415V Three-Phase
Supply Plug Unplugged (32A Recommended)
Ieff (A) 12.6
Imax (A) 21.4
Open Circuit Voltage (OCV) 80.0
Open Circuit Voltage with VRD Active (V) 13.5
Protection Class IP23S
Insulation Class H
Minimum Generator (kVA) 20.0
Dinse Connector 35/50
Standard AS 60974.1
Warranty 5 Years
Weight (kg) 45.10
Dimensions (LxWxH) 977 x 480 x 753mm
Suitable Materials MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
  MMA: Mild Steel, Stainless Steel, Cast Iron
  TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
MIG Specifications
MIG Current Range 30-350A
MIG Duty Cycle @ 40°C 40% @ 350A
  60% @ 285A
  100% @ 221A
MIG Wire Sizes 0.6-1.2mm
MIG Wire Spool Sizes 5kg (D200)
  15kg (D300)
MIG Welding Thickness Range 1-16mm
Drive Roller Size 37/24
TIG Specifications
TIG Ignition Type DC Lift Arc
TIG Current Range 20-350A
TIG Duty Cycle @ 40°C 40% @ 350A
  60% @ 285A
  100% @ 221A
TIG Welding Thickness Range 1-10mm
MMA Specifications
MMA Current Range 20-350A
MMA Duty Cycle @ 40°C 40% @ 350A
  60% @ 285A
  100% @ 221A
MMA Electrode Range 2.5-4.0mm
MMA Welding Thickness Range 2-16mm

*** Full UNIMIG range available so if you don’t see it on our website just get in touch with us!Unimig Welder Welders Welding Supplies Shop Brisbane Mig TIG Consumables Industrial Distributor Australia







Description

NB: LARGE MACHINE – DELIVERY SOUTH EAST QLD ONLY
This multi-process machine gives you professional-grade welds in a compact design with a built-in trolley that’s made for mobility.
  • Built-in trolley for flexibility
  • Push-Pull gun ready for heavy-duty welding
  • 4 geared wire drive system for the smoothest wire feeding experience
In the box:
  • RAZOR COMPACT 350 Welder
  • 3m M350 Digital MIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 500A Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 1.8m Quick-Connect Gas Hose
  • Operating Manual
  • 2 x 0.8-0.9mm V Groove Rollers
  • 2 x 1.0-1.2mm V Groove Rollers
  • 2 x 0.8-0.9mm F Groove Rollers
  • 2 x 1.0-1.2mm F Groove Rollers
  • 4 x 1.0-1.2mm U Groove Rollers

DETAILED PRODUCT INFORMATION LINK >RAZOR Compact 350 Welder

Machine Specifications
Primary Input Voltage 415V Three-Phase
Supply Plug Unplugged (32A Recommended)
Ieff (A) 12.6
Imax (A) 21.4
Open Circuit Voltage (OCV) 80.0
Open Circuit Voltage with VRD Active (V) 13.5
Protection Class IP23S
Insulation Class H
Minimum Generator (kVA) 20.0
Dinse Connector 35/50
Standard AS 60974.1
Warranty 5 Years
Weight (kg) 45.10
Dimensions (LxWxH) 977 x 480 x 753mm
Suitable Materials MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
  MMA: Mild Steel, Stainless Steel, Cast Iron
  TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
MIG Specifications
MIG Current Range 30-350A
MIG Duty Cycle @ 40°C 40% @ 350A
  60% @ 285A
  100% @ 221A
MIG Wire Sizes 0.6-1.2mm
MIG Wire Spool Sizes 5kg (D200)
  15kg (D300)
MIG Welding Thickness Range 1-16mm
Drive Roller Size 37/24
TIG Specifications
TIG Ignition Type DC Lift Arc
TIG Current Range 20-350A
TIG Duty Cycle @ 40°C 40% @ 350A
  60% @ 285A
  100% @ 221A
TIG Welding Thickness Range 1-10mm
MMA Specifications
MMA Current Range 20-350A
MMA Duty Cycle @ 40°C 40% @ 350A
  60% @ 285A
  100% @ 221A
MMA Electrode Range 2.5-4.0mm
MMA Welding Thickness Range 2-16mm
