unimig multi 230

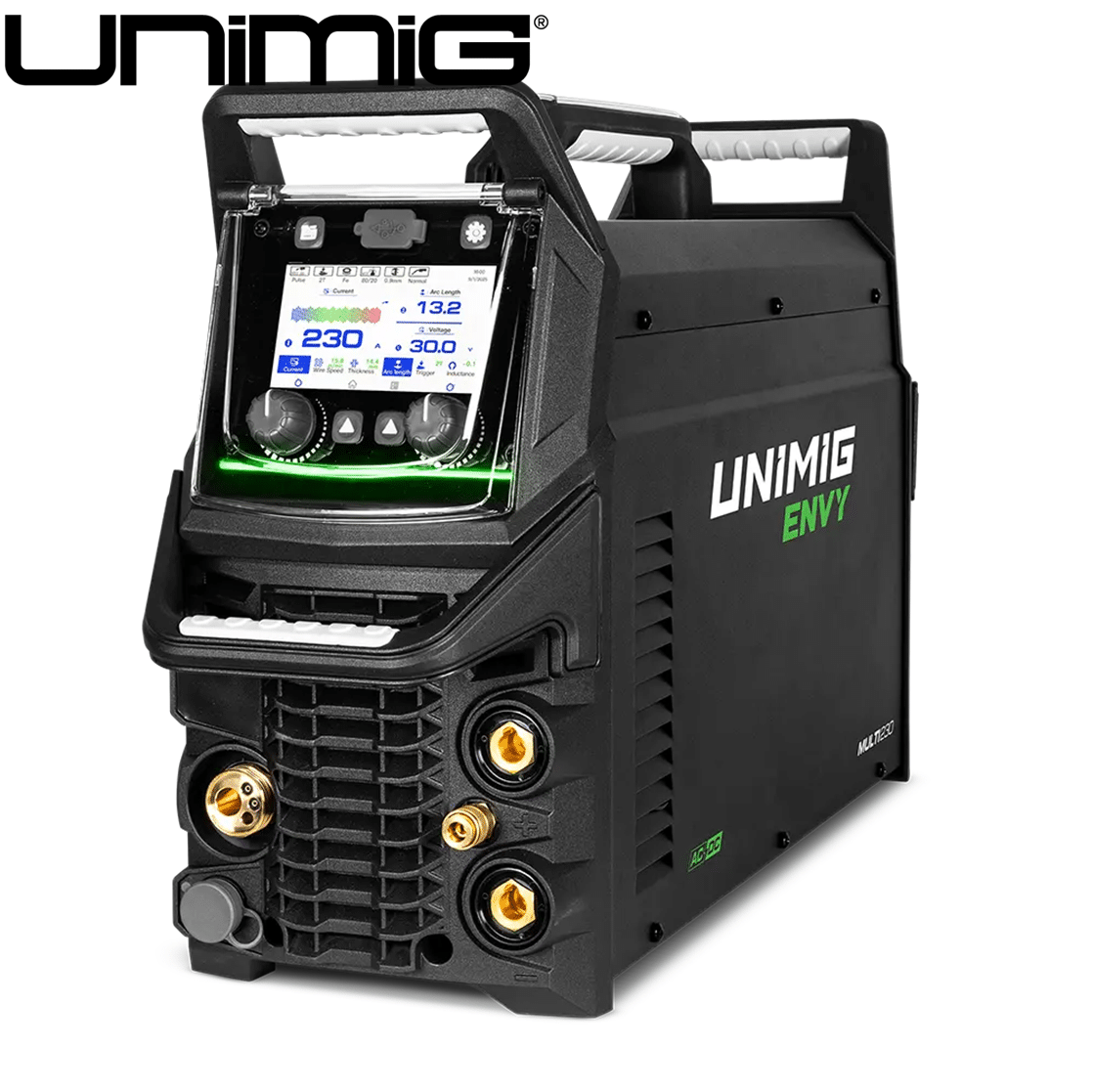

Unimig Envy Multi 230 AC/DC Multi-Process Welder U11203

Brand

Unimig Welding Supplies

Item #

U11203

MOQ

1

Categories

, , ,
Add to quote
The Unimig Envy Multi 230 AC/DC is filled with the latest revolutionary technologies, this professional-grade multi-process welder is capable of every kind of welding you need.
  • Single and double pulse MIG programs
  • High-frequency AC & DC TIG
  • MIG & TIG Smart-Set weld modes for complete synergic setups
In the box:
  • ENVY MULTI 230 AC/DC Welder
  • 3m M26 Digital MIG Torch
  • 4m T2 TIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 300 Amp Earth Clamp & Lead
  • Argon Regulator
  • 1.8m Quick-Connect Gas Hose
  • Operating Manual
  • 2 x 0.8-0.9mm V Groove Roller
  • 2 x 0.8-0.9mm F Groove Roller
  • 2 x 1.0-1.2mm U Groove Roller

Not All Pulse Machines Are Equal

  • Less spatter. Lower heat. Smoother results. Streamline your welds with the single and double pulse functions.

DETAILED PRODUCT LINK > ENVY MULTI 230 AC/DC Welder

Machine Specifications

Primary Input Voltage 240V Single-Phase
Supply Plug 15A
Ieff (A) 15.0
Imax (A) 30.0
Open Circuit Voltage (OCV) 76.0
Open Circuit Voltage with VRD Active (V) 14.4
Protection Class IP21S
Insulation Class H
Minimum Generator (kVA) 10
Dinse Connector 35/50
Standard AS 60974.1
Warranty 5 Years
Weight (kg) 24.00
Dimensions (LxWxH) 680 x 210 x 395mm
Suitable Materials MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze

TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys

MMA: Mild Steel, Stainless Steel, Cast Iron
MIG Specifications
MIG Current Range 25-230A
MIG Duty Cycle @ 40°C 25% @ 230A
60% @ 148A
100% @ 115A
MIG Wire Sizes 0.6-1.2mm
MIG Wire Spool Sizes 5kg (D200)
1kg (D100)
MIG Welding Thickness Range 1-10mm
Drive Roller Size 30/22
TIG Specifications
TIG Ignition Type AC/DC High-Frequency
TIG Current Range 10-230A
TIG Duty Cycle @ 40°C 35% @ 230A
60% @ 175A
100% @ 136A
TIG Welding Thickness Range 1-10mm
MMA Specifications
MMA Current Range 10-200A
MMA Duty Cycle @ 40°C 25% @ 200A
60% @ 130A
100% @ 100A
MMA Electrode Range 2.5-4.0mm
MMA Welding Thickness Range 2-12mm

Description

The Unimig Envy Multi 230 AC/DC is filled with the latest revolutionary technologies, this professional-grade multi-process welder is capable of every kind of welding you need.
  • Single and double pulse MIG programs
  • High-frequency AC & DC TIG
  • MIG & TIG Smart-Set weld modes for complete synergic setups
In the box:
  • ENVY MULTI 230 AC/DC Welder
  • 3m M26 Digital MIG Torch
  • 4m T2 TIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 300 Amp Earth Clamp & Lead
  • Argon Regulator
  • 1.8m Quick-Connect Gas Hose
  • Operating Manual
  • 2 x 0.8-0.9mm V Groove Roller
  • 2 x 0.8-0.9mm F Groove Roller
  • 2 x 1.0-1.2mm U Groove Roller

Not All Pulse Machines Are Equal

  • Less spatter. Lower heat. Smoother results. Streamline your welds with the single and double pulse functions.

DETAILED PRODUCT LINK > ENVY MULTI 230 AC/DC Welder

Machine Specifications

Primary Input Voltage 240V Single-Phase
Supply Plug 15A
Ieff (A) 15.0
Imax (A) 30.0
Open Circuit Voltage (OCV) 76.0
Open Circuit Voltage with VRD Active (V) 14.4
Protection Class IP21S
Insulation Class H
Minimum Generator (kVA) 10
Dinse Connector 35/50
Standard AS 60974.1
Warranty 5 Years
Weight (kg) 24.00
Dimensions (LxWxH) 680 x 210 x 395mm
Suitable Materials MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze

TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys

MMA: Mild Steel, Stainless Steel, Cast Iron
MIG Specifications
MIG Current Range 25-230A
MIG Duty Cycle @ 40°C 25% @ 230A
60% @ 148A
100% @ 115A
MIG Wire Sizes 0.6-1.2mm
MIG Wire Spool Sizes 5kg (D200)
1kg (D100)
MIG Welding Thickness Range 1-10mm
Drive Roller Size 30/22
TIG Specifications
TIG Ignition Type AC/DC High-Frequency
TIG Current Range 10-230A
TIG Duty Cycle @ 40°C 35% @ 230A
60% @ 175A
100% @ 136A
TIG Welding Thickness Range 1-10mm
MMA Specifications
MMA Current Range 10-200A
MMA Duty Cycle @ 40°C 25% @ 200A
60% @ 130A
100% @ 100A
MMA Electrode Range 2.5-4.0mm
MMA Welding Thickness Range 2-12mm
