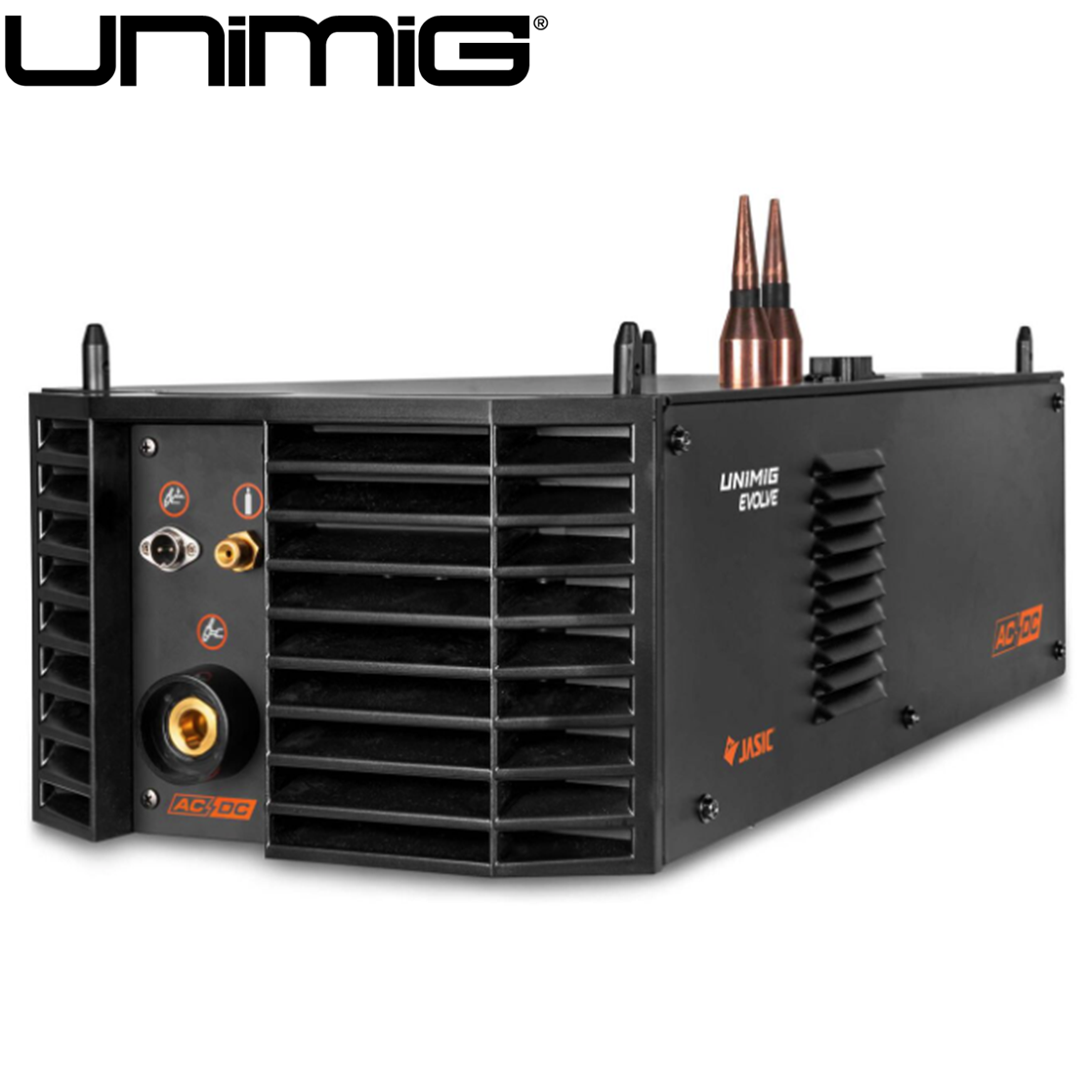

U11147 Unimig Evolve AC/DC Module

U11147 Unimig Evolve AC/DC Module

Brand

Unimig Welding Supplies

Item #

U11147

MOQ

1

Categories

, , ,
Add To Quote Request
NB: LARGE MACHINE – DELIVERY SOUTH EAST QLD ONLY
The AC/DC module lets you add the ability to TIG weld on your MIG machine as well as AC MIG programs.
    • Adds high-frequency AC & DC TIG
    • Advanced AC MIG settings and features
    • AC MIG gives you the heat input and the cleaning action usually reserved for AC TIG

Ultimate TIG Welding – weld every kind of metal. With the ability to run on an Alternating Current (AC) you’re able to weld aluminium as effortlessly as mild and stainless steels on a Direct Current (DC).

Multiple AC Waveforms – Completely customise your aluminium welds. Switch between Sine, Square, Trapez and Triangle waves, or use a combination of the two, to change the arc characteristics, bead profile, and penetration to suit your weld.

Mixed AC/DC – Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC- TIG in one weld. With it, you get faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld on thicker materials.

Foot Pedal Ready – Enjoy greater control and precision with our optional foot control accessory. This handy feature allows you to easily adjust your TIG amperage on the fly, without interrupting your torch movement.

Additional Features

AC MIG

  • Get even more control over your aluminium MIG welds. The alternating current (AC) gives you the heat input and the cleaning action usually reserved for AC TIG.

AC MIG Welding Speed

  • Increase your efficiency with the advanced AC MIG Welding Speed. By setting the rate the wire is deposited during the negative portion of the AC cycle, you can adjust your welding speed while still maintaining your desired arc length.

Maximum AC TIG Amperage

  • Set the maximum current of the positive side of the AC cycle the machine can reach when TIG welding. By reducing the amperage of the positive portion of the cycle, the negative portion works to compensate, allowing for a more penetrative weld and reduced risk of the tungsten melting.
MODULE SPECIFICATIONS
Protection Class IP21S
Insulation Class H
Dinse Connector 35/50
Standard AS 60974.1
Warranty 5 Years
Suitable Materials MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze

TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
TIG SPECIFICATIONS
TIG Ignition Type AC/DC High-Frequency
TIG Current Range 5-500A

Description

NB: LARGE MACHINE – DELIVERY SOUTH EAST QLD ONLY
The AC/DC module lets you add the ability to TIG weld on your MIG machine as well as AC MIG programs.
    • Adds high-frequency AC & DC TIG
    • Advanced AC MIG settings and features
    • AC MIG gives you the heat input and the cleaning action usually reserved for AC TIG

Ultimate TIG Welding – weld every kind of metal. With the ability to run on an Alternating Current (AC) you’re able to weld aluminium as effortlessly as mild and stainless steels on a Direct Current (DC).

Multiple AC Waveforms – Completely customise your aluminium welds. Switch between Sine, Square, Trapez and Triangle waves, or use a combination of the two, to change the arc characteristics, bead profile, and penetration to suit your weld.

Mixed AC/DC – Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC- TIG in one weld. With it, you get faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld on thicker materials.

Foot Pedal Ready – Enjoy greater control and precision with our optional foot control accessory. This handy feature allows you to easily adjust your TIG amperage on the fly, without interrupting your torch movement.

Additional Features

AC MIG

  • Get even more control over your aluminium MIG welds. The alternating current (AC) gives you the heat input and the cleaning action usually reserved for AC TIG.

AC MIG Welding Speed

  • Increase your efficiency with the advanced AC MIG Welding Speed. By setting the rate the wire is deposited during the negative portion of the AC cycle, you can adjust your welding speed while still maintaining your desired arc length.

Maximum AC TIG Amperage

  • Set the maximum current of the positive side of the AC cycle the machine can reach when TIG welding. By reducing the amperage of the positive portion of the cycle, the negative portion works to compensate, allowing for a more penetrative weld and reduced risk of the tungsten melting.
MODULE SPECIFICATIONS
Protection Class IP21S
Insulation Class H
Dinse Connector 35/50
Standard AS 60974.1
Warranty 5 Years
Suitable Materials MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze

TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
TIG SPECIFICATIONS
TIG Ignition Type AC/DC High-Frequency
TIG Current Range 5-500A

EVOLVE AC/DC Module

*** Full UNIMIG range available so if you don’t see it on our website just get in touch with us!Unimig Welder Welders Welding Supplies Shop Brisbane Mig TIG Consumables Industrial Distributor Australia







Description

NB: LARGE MACHINE – DELIVERY SOUTH EAST QLD ONLY
The AC/DC module lets you add the ability to TIG weld on your MIG machine as well as AC MIG programs.
    • Adds high-frequency AC & DC TIG
    • Advanced AC MIG settings and features
    • AC MIG gives you the heat input and the cleaning action usually reserved for AC TIG

Ultimate TIG Welding – weld every kind of metal. With the ability to run on an Alternating Current (AC) you’re able to weld aluminium as effortlessly as mild and stainless steels on a Direct Current (DC).

Multiple AC Waveforms – Completely customise your aluminium welds. Switch between Sine, Square, Trapez and Triangle waves, or use a combination of the two, to change the arc characteristics, bead profile, and penetration to suit your weld.

Mixed AC/DC – Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC- TIG in one weld. With it, you get faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld on thicker materials.

Foot Pedal Ready – Enjoy greater control and precision with our optional foot control accessory. This handy feature allows you to easily adjust your TIG amperage on the fly, without interrupting your torch movement.

Additional Features

AC MIG

  • Get even more control over your aluminium MIG welds. The alternating current (AC) gives you the heat input and the cleaning action usually reserved for AC TIG.

AC MIG Welding Speed

  • Increase your efficiency with the advanced AC MIG Welding Speed. By setting the rate the wire is deposited during the negative portion of the AC cycle, you can adjust your welding speed while still maintaining your desired arc length.

Maximum AC TIG Amperage

  • Set the maximum current of the positive side of the AC cycle the machine can reach when TIG welding. By reducing the amperage of the positive portion of the cycle, the negative portion works to compensate, allowing for a more penetrative weld and reduced risk of the tungsten melting.
MODULE SPECIFICATIONS
Protection Class IP21S
Insulation Class H
Dinse Connector 35/50
Standard AS 60974.1
Warranty 5 Years
Suitable Materials MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze

TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
TIG SPECIFICATIONS
TIG Ignition Type AC/DC High-Frequency
TIG Current Range 5-500A

Additional information

Weight 150 kg
Dimensions 1200 × 900 × 1500 cm
