The KSJ-0.7S Fume Extractor is an economical, compact, and mobile single-arm 10 AMP fume extraction unit capable of filtering an area of up to eight square metres. The unit is constructed from high quality sheet metal and is easily maneuverable thanks to its four heavy duty lockable caster wheels. The machine is suited for the purification of fumes and dust generated by welding and grinding. The suction arm rotates 360 degrees by pulling the handle on the hood to the desired work area.
Our filters have been independently tested to ISO: EN779:2012 and can remove greater than 99.8% of nanoparticles (PM1 particulate matter), high enough filtration to meet indoor emission standards. It also features a compressed air inlet valve, as well as a removable dust drawer for cleaning of the filter to prolong filter life.
Machine Specifications
| Air Volume | 2000 ± 100m3/h |
| Air Suction Arm | 1000m3/h |
| Motor Power (kW) | 0.75 |
| Primary Input Voltage | 240V Single-Phase |
| Filtering Area | 8m2 |
| Cleaning | Semi-Automatic / Manual Cleaning |
| Maximum Pressure (Pa) | 1900 |
| Compressed Air (MPa) | 0.5-0.6 |
| Filtration Efficiency | >99.8% |
| Noise Level (dBA) | <74 ± 5 |
| Filter Cartridge | FILCART1 |
| Arm Length | 2m (Standard) |
| Dimensions (LxWxH) | 510 x 610 x 999mm |
| Weight (kg) | 98±5 |
Includes:

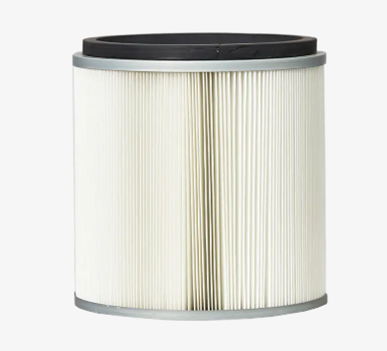

FILCART1 – KSJ0.7S Fume Extractor Filter Cartridge
The KSJ-0.7S Fume Extractor is an economical, compact, and mobile single-arm 10 AMP fume extraction unit capable of filtering an area of up to eight square metres. The unit is constructed from high quality sheet metal and is easily maneuverable thanks to its four heavy duty lockable caster wheels. The machine is suited for the purification of fumes and dust generated by welding and grinding. The suction arm rotates 360 degrees by pulling the handle on the hood to the desired work area.
Our filters have been independently tested to ISO: EN779:2012 and can remove greater than 99.8% of nanoparticles (PM1 particulate matter), high enough filtration to meet indoor emission standards. It also features a compressed air inlet valve, as well as a removable dust drawer for cleaning of the filter to prolong filter life.
Machine Specifications
| Air Volume | 2000 ± 100m3/h |
| Air Suction Arm | 1000m3/h |
| Motor Power (kW) | 0.75 |
| Primary Input Voltage | 240V Single-Phase |
| Filtering Area | 8m2 |
| Cleaning | Semi-Automatic / Manual Cleaning |
| Maximum Pressure (Pa) | 1900 |
| Compressed Air (MPa) | 0.5-0.6 |
| Filtration Efficiency | >99.8% |
| Noise Level (dBA) | <74 ± 5 |
| Filter Cartridge | FILCART1 |
| Arm Length | 2m (Standard) |
| Dimensions (LxWxH) | 510 x 610 x 999mm |
| Weight (kg) | 98±5 |
Includes:
FILCART1 – KSJ0.7S Fume Extractor Filter Cartridge
The KSJ-0.7S Fume Extractor is an economical, compact, and mobile single-arm 10 AMP fume extraction unit capable of filtering an area of up to eight square metres. The unit is constructed from high quality sheet metal and is easily maneuverable thanks to its four heavy duty lockable caster wheels. The machine is suited for the purification of fumes and dust generated by welding and grinding. The suction arm rotates 360 degrees by pulling the handle on the hood to the desired work area.
Our filters have been independently tested to ISO: EN779:2012 and can remove greater than 99.8% of nanoparticles (PM1 particulate matter), high enough filtration to meet indoor emission standards. It also features a compressed air inlet valve, as well as a removable dust drawer for cleaning of the filter to prolong filter life.
Machine Specifications
| Air Volume | 2000 ± 100m3/h |
| Air Suction Arm | 1000m3/h |
| Motor Power (kW) | 0.75 |
| Primary Input Voltage | 240V Single-Phase |
| Filtering Area | 8m2 |
| Cleaning | Semi-Automatic / Manual Cleaning |
| Maximum Pressure (Pa) | 1900 |
| Compressed Air (MPa) | 0.5-0.6 |
| Filtration Efficiency | >99.8% |
| Noise Level (dBA) | <74 ± 5 |
| Filter Cartridge | FILCART1 |
| Arm Length | 2m (Standard) |
| Dimensions (LxWxH) | 510 x 610 x 999mm |
| Weight (kg) | 98±5 |
Includes:
FILCART1 – KSJ0.7S Fume Extractor Filter Cartridge
