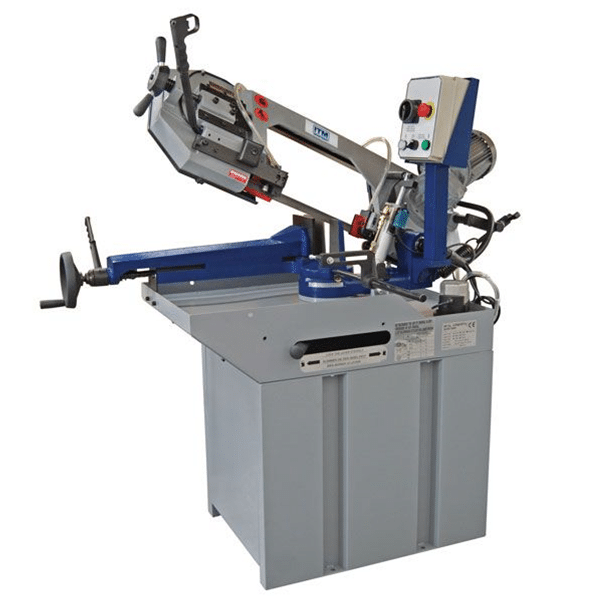

WP270SH-1 ITM Industrial Bandsaw Swivel Head 227mm Capacity 1 Speed Hyd Down Feed 240V Single Phase

Brand

ITM Industrial Tools & Machinery

Item #

WP270SH-1P

MOQ

1

Categories

Bandsaws, Bandsaws, Our Products, Power Tools, Saws, Saws, Workshop Equipment & Machinery

Swivel head enables from 0° to 60° mitre cuts.
Dual mode operation.
– Trigger switch with manual down feed for small quick cuts.
– Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
Incorporated recirculating coolant system.
Brass chip brush to help prevent blade breakage.
Adjustable material stop for repetitive production.
Safety emergency stop switch.
Comes complete with stand & blade.
Optional blade tension gauge.
Made in Taiwan.

Description

Swivel head enables from 0° to 60° mitre cuts.
Dual mode operation.
– Trigger switch with manual down feed for small quick cuts.
– Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
Incorporated recirculating coolant system.
Brass chip brush to help prevent blade breakage.
Adjustable material stop for repetitive production.
Safety emergency stop switch.
Comes complete with stand & blade.
Optional blade tension gauge.
Made in Taiwan.

Motor	1.5hp Single Phase (240V)
Blade Speed	Single Speed 72mpm
Blade Size	27mm x 0.9mm x 2455mm
Bed Height	885mm
Weight	216kg
90° Cutting Capacity
Round	220mm
Square	215mm
Rectangle	260 x 110mm
45° Right Cutting Capacity
Round	150mm
Square	145mm
Rectangle	155 x 110mm
60° Right Cutting Capacity
Round	90mm
Square	85mm
Rectangle	80 x 95mm

https://www.industrialtool.com.au/product/320-itm-bandsaw-220mm-cap-swivel-head-1-speed-240v-1ph-hyd-down-feed

*** Full ITM range available so if you don’t see it on our website just get in touch with us!

Description

Swivel head enables from 0° to 60° mitre cuts.
Dual mode operation.
– Trigger switch with manual down feed for small quick cuts.
– Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
Incorporated recirculating coolant system.
Brass chip brush to help prevent blade breakage.
Adjustable material stop for repetitive production.
Safety emergency stop switch.
Comes complete with stand & blade.
Optional blade tension gauge.
Made in Taiwan.

Additional information

Brand	ITM Industrial Tools & Machinery
