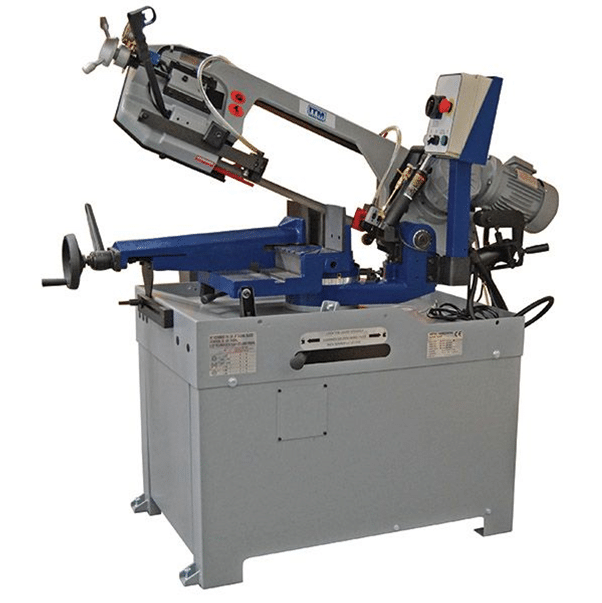

WP310DS-3 ITM Industrial Bandsaw 240mm Cap, Swivel Head, Dual Mitre, 2 Speed 415V 3PH, Hyd Down Feed

Brand

ITM Industrial Tools & Machinery

Item #

WP310DS

MOQ

1

Categories

Bandsaws, Bandsaws, Our Products, Power Tools, Saws, Saws, Workshop Equipment & Machinery

2-way swivel head enables from 0° to 60° mitre cuts.
Dual mode operation.
– Trigger switch with manual down feed for small quick cuts.
– Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
Variable speed motor for cutting a wide range of materials.
Dual direction heavy-duty vice.
Hydraulic blade tension gauge.
Incorporated recirculating coolant system.
Brass chip brush to help prevent blade breakage.
Adjustable material stop for repetitive production.
Safety emergency stop switch.
Comes complete with stand & blade.
Made in Taiwan.

Description

2-way swivel head enables from 0° to 60° mitre cuts.
Dual mode operation.
– Trigger switch with manual down feed for small quick cuts.
– Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
Variable speed motor for cutting a wide range of materials.
Dual direction heavy-duty vice.
Hydraulic blade tension gauge.
Incorporated recirculating coolant system.
Brass chip brush to help prevent blade breakage.
Adjustable material stop for repetitive production.
Safety emergency stop switch.
Comes complete with stand & blade.
Made in Taiwan.

Motor: 2.0hp Three Phase (415V)
Blade Speed: 2 Speed 36 / 72mpm
Blade Size: 27mm x 0.9mm x 2725mm
Bed Height: 895mm
Weight: 302kg

90° Cutting Capacity:

Round: 240mm
Square: 235mm
Rectangle: 310 x 165mm

45° Right Cutting Capacity:

Round: 195mm
Square: 185mm
Rectangle: 195 x 130mm

60° Right Cutting Capacity:

Round: 120mm
Square: 85mm
Rectangle: 120 x 90mm

45° Left Cutting Capacity:

Round: 165mm
Square: 140mm
Rectangle: 195 x 60mm

*** Full ITM range available so if you don’t see it on our website just get in touch with us!

Description

2-way swivel head enables from 0° to 60° mitre cuts.
Dual mode operation.
– Trigger switch with manual down feed for small quick cuts.
– Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
Variable speed motor for cutting a wide range of materials.
Dual direction heavy-duty vice.
Hydraulic blade tension gauge.
Incorporated recirculating coolant system.
Brass chip brush to help prevent blade breakage.
Adjustable material stop for repetitive production.
Safety emergency stop switch.
Comes complete with stand & blade.
Made in Taiwan.

Additional information

Brand	ITM Industrial Tools & Machinery
